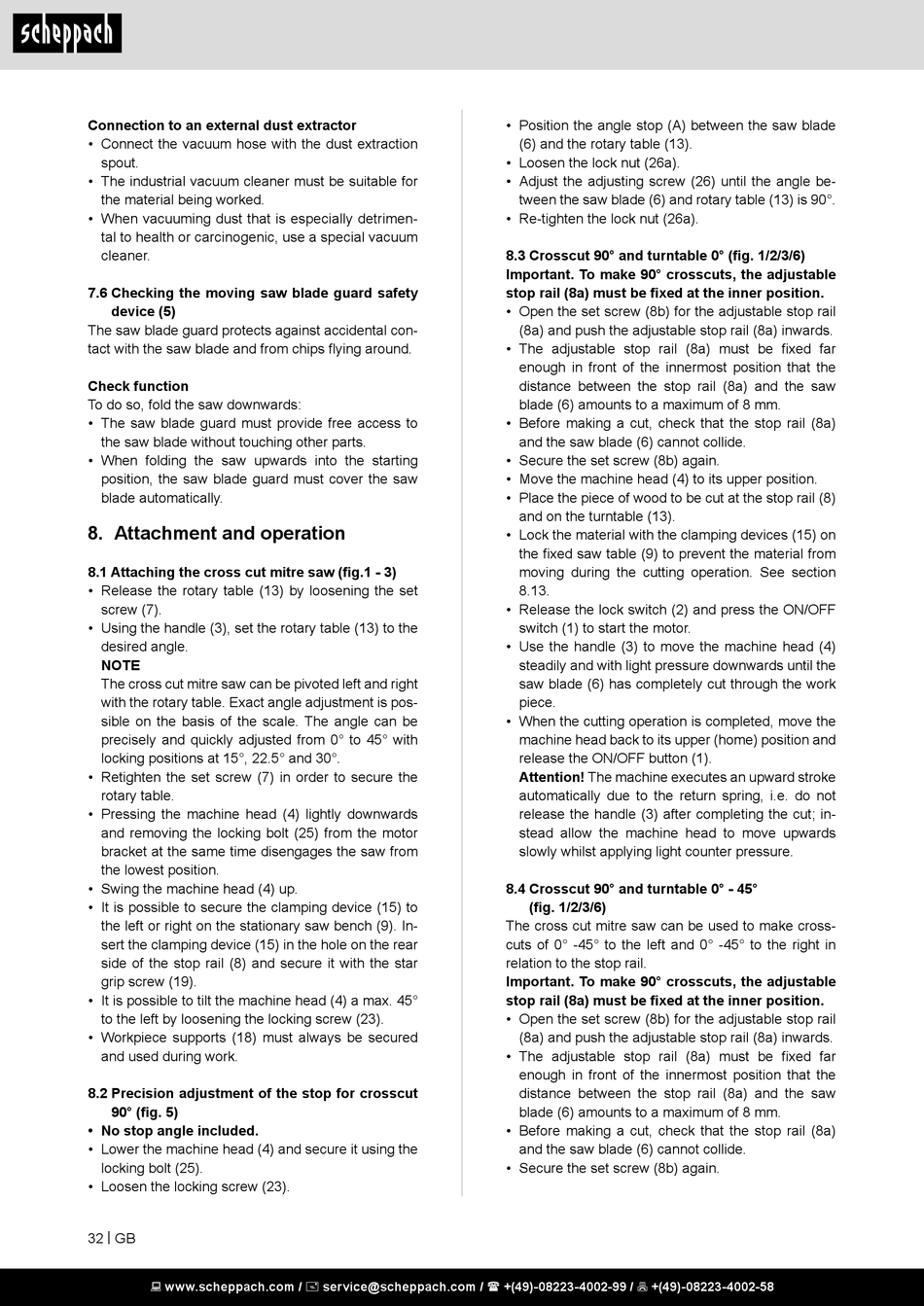

Connection to an external dust extractor
• Connect the vacuum hose with the dust extraction
spout.
• The industrial vacuum cleaner must be suitable for
the material being worked.
• When vacuuming dust that is especially detrimen-
tal to health or carcinogenic, use a special vacuum
cleaner.
7.6 Checking the moving saw blade guard safety
device (5)
The saw blade guard protects against accidental con-
tact with the saw blade and from chips flying around.
Check function
To do so, fold the saw downwards:
• The saw blade guard must provide free access to
the saw blade without touching other parts.
• When folding the saw upwards into the starting
position, the saw blade guard must cover the saw
blade automatically.

8. Attachment and operation

8.1 Attaching the cross cut mitre saw (fig.1 - 3)
• Release the rotary table (13) by loosening the set
screw (7).
• Using the handle (3), set the rotary table (13) to the
desired angle.
NOTE
The cross cut mitre saw can be pivoted left and right
with the rotary table. Exact angle adjustment is pos-
sible on the basis of the scale. The angle can be
precisely and quickly adjusted from 0° to 45° with
locking positions at 15°, 22.5° and 30°.
• Retighten the set screw (7) in order to secure the
rotary table.
• Pressing the machine head (4) lightly downwards
and removing the locking bolt (25) from the motor
bracket at the same time disengages the saw from
the lowest position.
• Swing the machine head (4) up.
• It is possible to secure the clamping device (15) to
the left or right on the stationary saw bench (9). In-
sert the clamping device (15) in the hole on the rear
side of the stop rail (8) and secure it with the star
grip screw (19).
• It is possible to tilt the machine head (4) a max. 45°
to the left by loosening the locking screw (23).
• Workpiece supports (18) must always be secured
and used during work.
8.2 Precision adjustment of the stop for crosscut
90° (fig. 5)
• No stop angle included.
• Lower the machine head (4) and secure it using the
locking bolt (25).
• Loosen the locking screw (23).
32 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Position the angle stop (A) between the saw blade
(6) and the rotary table (13).
• Loosen the lock nut (26a).
• Adjust the adjusting screw (26) until the angle be-
tween the saw blade (6) and rotary table (13) is 90°.
• Re-tighten the lock nut (26a).
8.3 Crosscut 90° and turntable 0° (fig. 1/2/3/6)
Important. To make 90° crosscuts, the adjustable
stop rail (8a) must be fixed at the inner position.
• Open the set screw (8b) for the adjustable stop rail
(8a) and push the adjustable stop rail (8a) inwards.
• The adjustable stop rail (8a) must be fixed far
enough in front of the innermost position that the
distance between the stop rail (8a) and the saw
blade (6) amounts to a maximum of 8 mm.
• Before making a cut, check that the stop rail (8a)
and the saw blade (6) cannot collide.
• Secure the set screw (8b) again.
• Move the machine head (4) to its upper position.
• Place the piece of wood to be cut at the stop rail (8)
and on the turntable (13).
• Lock the material with the clamping devices (15) on
the fixed saw table (9) to prevent the material from
moving during the cutting operation. See section
8.13.
• Release the lock switch (2) and press the ON/OFF
switch (1) to start the motor.
• Use the handle (3) to move the machine head (4)
steadily and with light pressure downwards until the
saw blade (6) has completely cut through the work
piece.
• When the cutting operation is completed, move the
machine head back to its upper (home) position and
release the ON/OFF button (1).
Attention! The machine executes an upward stroke
automatically due to the return spring, i.e. do not
release the handle (3) after completing the cut; in-
stead allow the machine head to move upwards
slowly whilst applying light counter pressure.
8.4 Crosscut 90° and turntable 0° - 45°
(fig. 1/2/3/6)
The cross cut mitre saw can be used to make cross-
cuts of 0° -45° to the left and 0° -45° to the right in
relation to the stop rail.
Important. To make 90° crosscuts, the adjustable
stop rail (8a) must be fixed at the inner position.
• Open the set screw (8b) for the adjustable stop rail
(8a) and push the adjustable stop rail (8a) inwards.
• The adjustable stop rail (8a) must be fixed far
enough in front of the innermost position that the
distance between the stop rail (8a) and the saw
blade (6) amounts to a maximum of 8 mm.
• Before making a cut, check that the stop rail (8a)
and the saw blade (6) cannot collide.
• Secure the set screw (8b) again.
