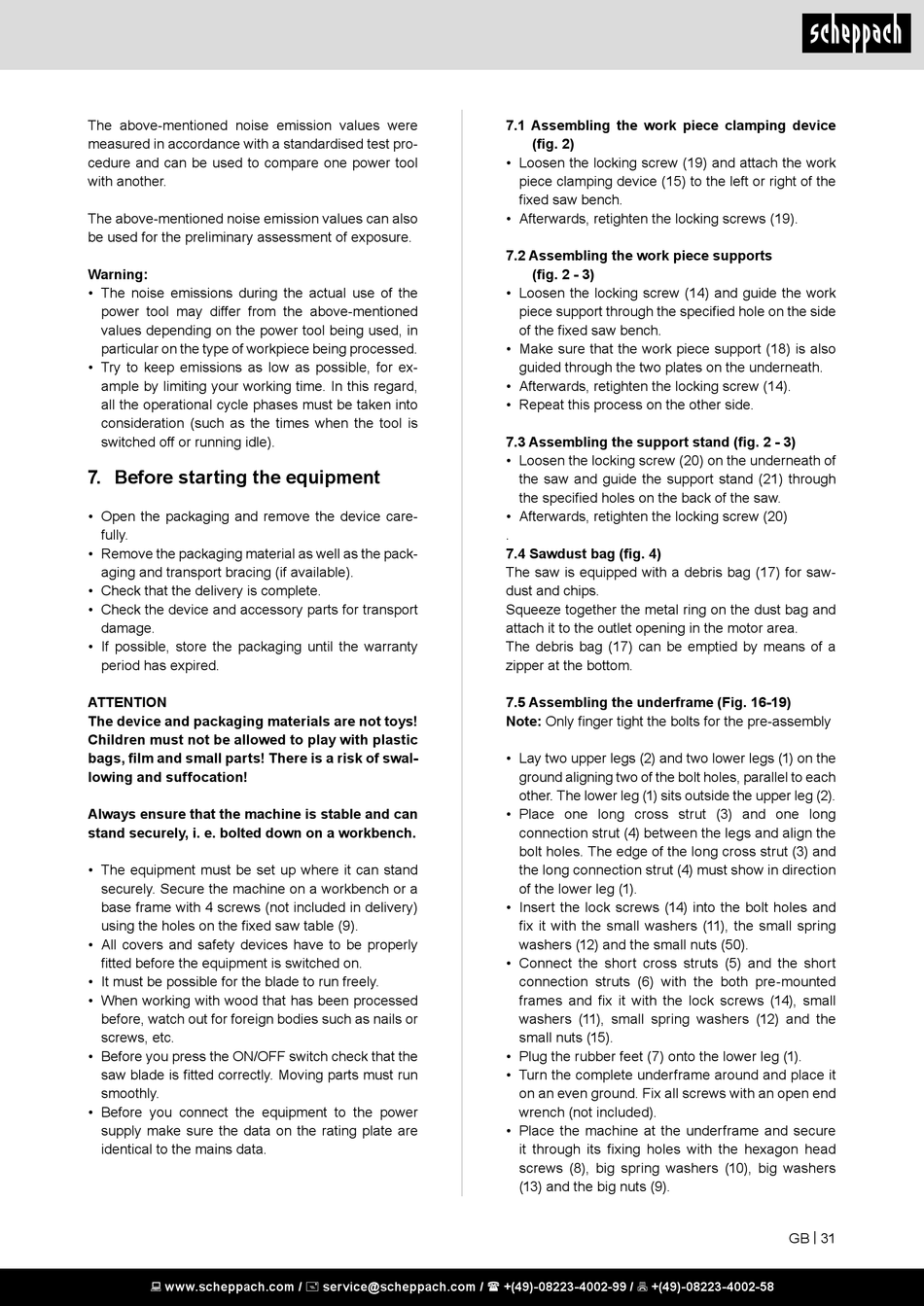

The above-mentioned noise emission values were
measured in accordance with a standardised test pro-
cedure and can be used to compare one power tool
with another.
The above-mentioned noise emission values can also
be used for the preliminary assessment of exposure.
Warning:
• The noise emissions during the actual use of the
power tool may differ from the above-mentioned
values depending on the power tool being used, in
particular on the type of workpiece being processed.
• Try to keep emissions as low as possible, for ex-
ample by limiting your working time. In this regard,
all the operational cycle phases must be taken into
consideration (such as the times when the tool is
switched off or running idle).

7. Before starting the equipment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
Always ensure that the machine is stable and can
stand securely, i. e. bolted down on a workbench.
• The equipment must be set up where it can stand
securely. Secure the machine on a workbench or a
base frame with 4 screws (not included in delivery)
using the holes on the fixed saw table (9).
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails or
screws, etc.
• Before you press the ON/OFF switch check that the
saw blade is fitted correctly. Moving parts must run
smoothly.
• Before you connect the equipment to the power
supply make sure the data on the rating plate are
identical to the mains data.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
7.1 Assembling the work piece clamping device
(fig. 2)
• Loosen the locking screw (19) and attach the work
piece clamping device (15) to the left or right of the
fixed saw bench.
• Afterwards, retighten the locking screws (19).
7.2 Assembling the work piece supports
(fig. 2 - 3)
• Loosen the locking screw (14) and guide the work
piece support through the specified hole on the side
of the fixed saw bench.
• Make sure that the work piece support (18) is also
guided through the two plates on the underneath.
• Afterwards, retighten the locking screw (14).
• Repeat this process on the other side.
7.3 Assembling the support stand (fig. 2 - 3)
• Loosen the locking screw (20) on the underneath of
the saw and guide the support stand (21) through
the specified holes on the back of the saw.
• Afterwards, retighten the locking screw (20)
.
7.4 Sawdust bag (fig. 4)
The saw is equipped with a debris bag (17) for saw-
dust and chips.
Squeeze together the metal ring on the dust bag and
attach it to the outlet opening in the motor area.
The debris bag (17) can be emptied by means of a
zipper at the bottom.
7.5 Assembling the underframe (Fig. 16-19)
Note: Only finger tight the bolts for the pre-assembly
• Lay two upper legs (2) and two lower legs (1) on the
ground aligning two of the bolt holes, parallel to each
other. The lower leg (1) sits outside the upper leg (2).
• Place one long cross strut (3) and one long
connection strut (4) between the legs and align the
bolt holes. The edge of the long cross strut (3) and
the long connection strut (4) must show in direction
of the lower leg (1).
• Insert the lock screws (14) into the bolt holes and
fix it with the small washers (11), the small spring
washers (12) and the small nuts (50).
• Connect the short cross struts (5) and the short
connection struts (6) with the both pre-mounted
frames and fix it with the lock screws (14), small
washers (11), small spring washers (12) and the
small nuts (15).
• Plug the rubber feet (7) onto the lower leg (1).
• Turn the complete underframe around and place it
on an even ground. Fix all screws with an open end
wrench (not included).
• Place the machine at the underframe and secure
it through its fixing holes with the hexagon head
screws (8), big spring washers (10), big washers
(13) and the big nuts (9).
