Instructions for installation and use

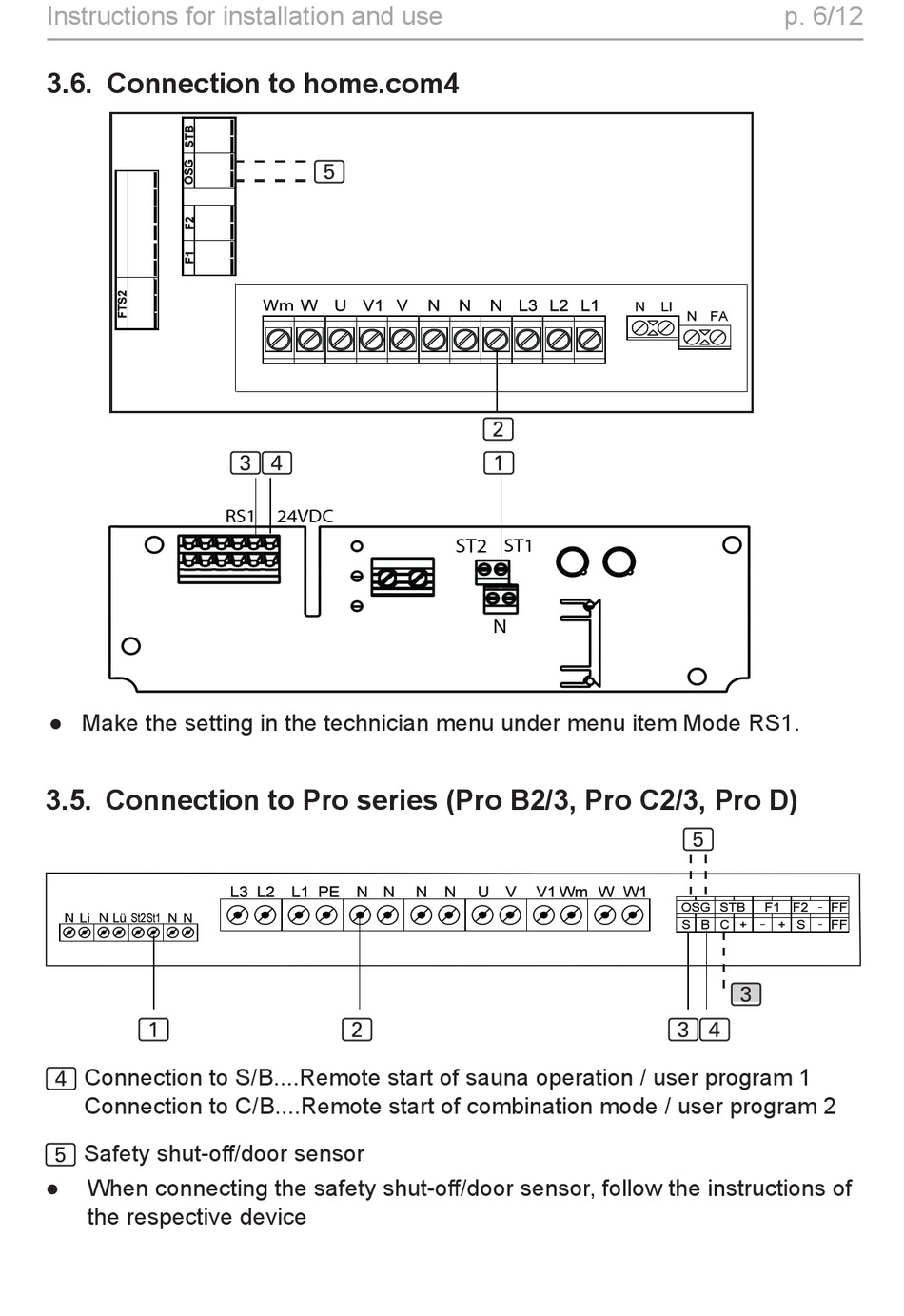

3.6. Connection to home.com4
● Make the setting in the technician menu under menu item Mode RS1.
3.5. Connection to Pro series (Pro B2/3, Pro C2/3, Pro D)
1
4 Connection to S/B....Remote start of sauna operation / user program 1
Connection to C/B....Remote start of combination mode / user program 2
5 Safety shut-off/door sensor
● When connecting the safety shut-off/door sensor, follow the instructions of
the respective device
5
Wm
34
RS1 24VDC
2
2
1
ST2 ST1
N
p. 6/12
5
3
34
