Instructions for installation and use
ATTENTION!
Damage to the device!
Installation of the app and input of the settings (see "5. Operation" and "4. Com-
missioning") must be completed before the sauna control unit is switched on.

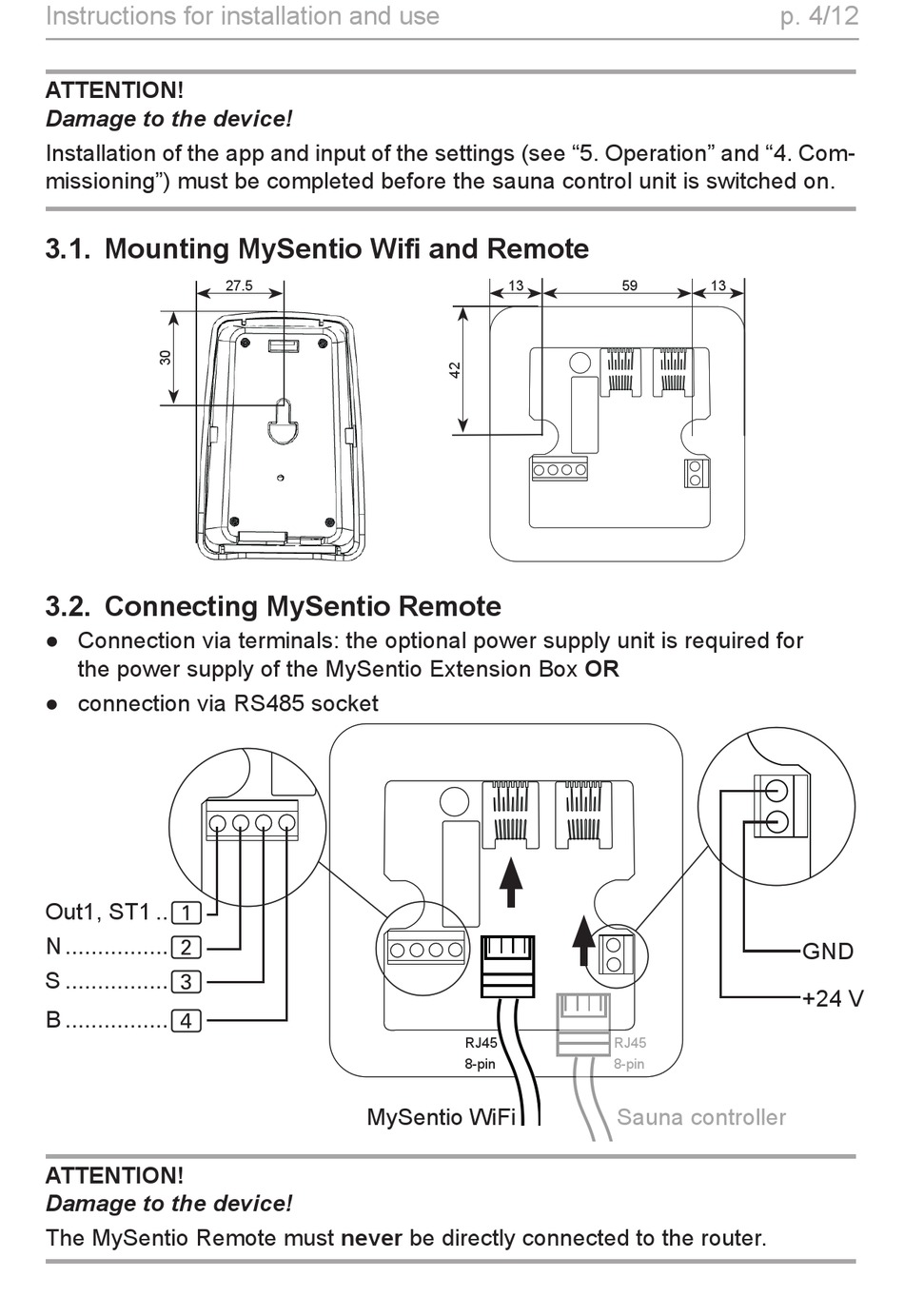

3.1. Mounting MySentio Wifi and Remote
3.2. Connecting MySentio Remote
● Connection via terminals: the optional power supply unit is required for
the power supply of the MySentio Extension Box OR
● connection via RS485 socket
Out1, ST1 .. 1
N ................ 2
S ................ 3
B ................ 4
ATTENTION!
Damage to the device!
The MySentio Remote must never be directly connected to the router.
27.5
MySentio WiFi
13 59
RJ45 RJ45
8-pin
8-pin
Sauna controller
p. 4/12
13
GND
+24 V
