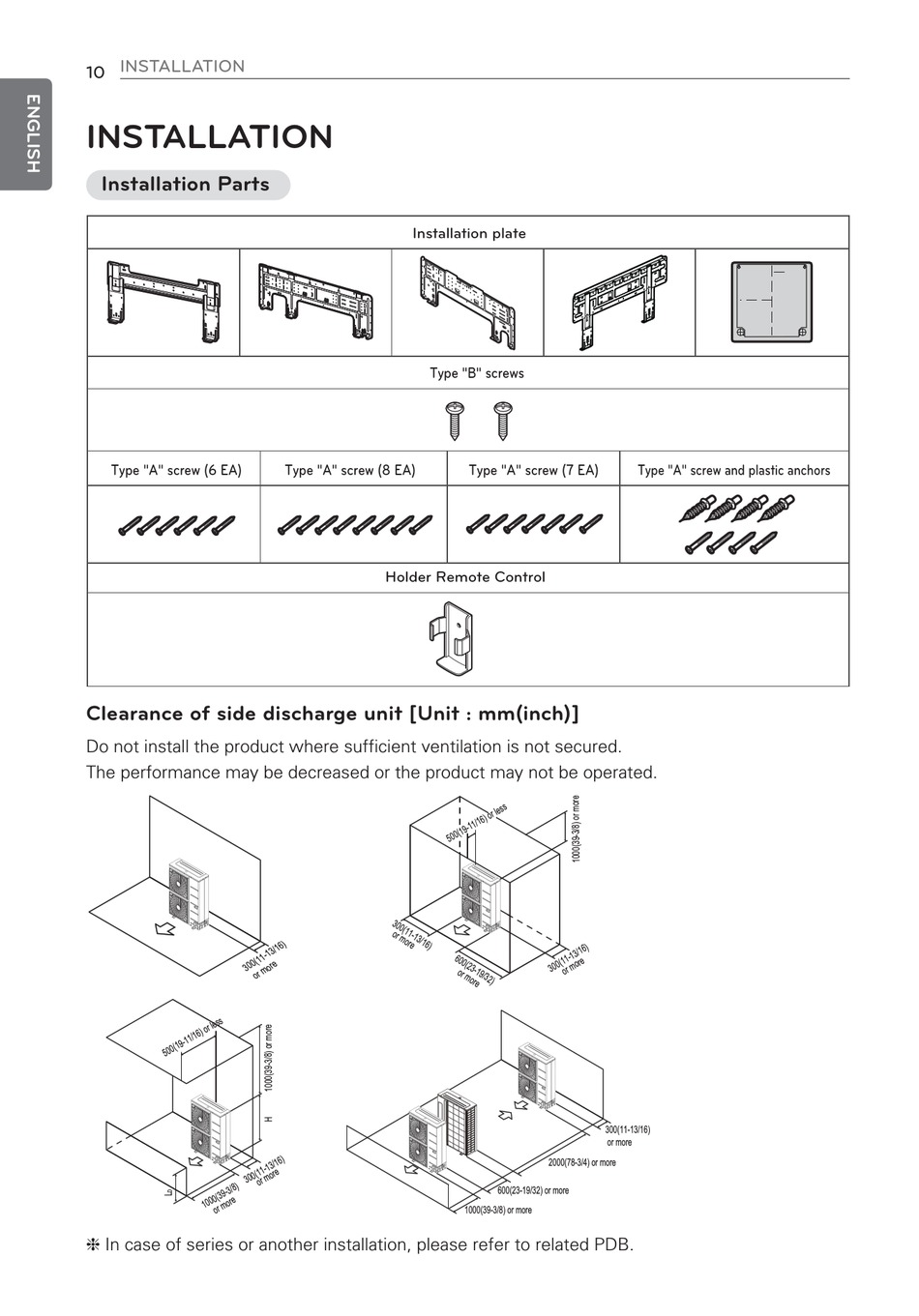

INSTALLATION
10
INSTALLATION

Installation Parts

Installation plate
Type "B" screws
Type "A" screw (6 EA) Type "A" screw (8 EA) Type "A" screw (7 EA) Type "A" screw and plastic anchors
Holder Remote Control
Clearance of side discharge unit [Unit : mm(inch)]
Do not install the product where sufficient ventilation is not secured.
The performance may be decreased or the product may not be operated.
300(11-13/16)
or more
2000(78-3/4) or more
600(23-19/32) or more
1000(39-3/8) or more
C In case of series or another installation, please refer to related PDB.
