Installation
Installation
Read completely, then follow step by step.

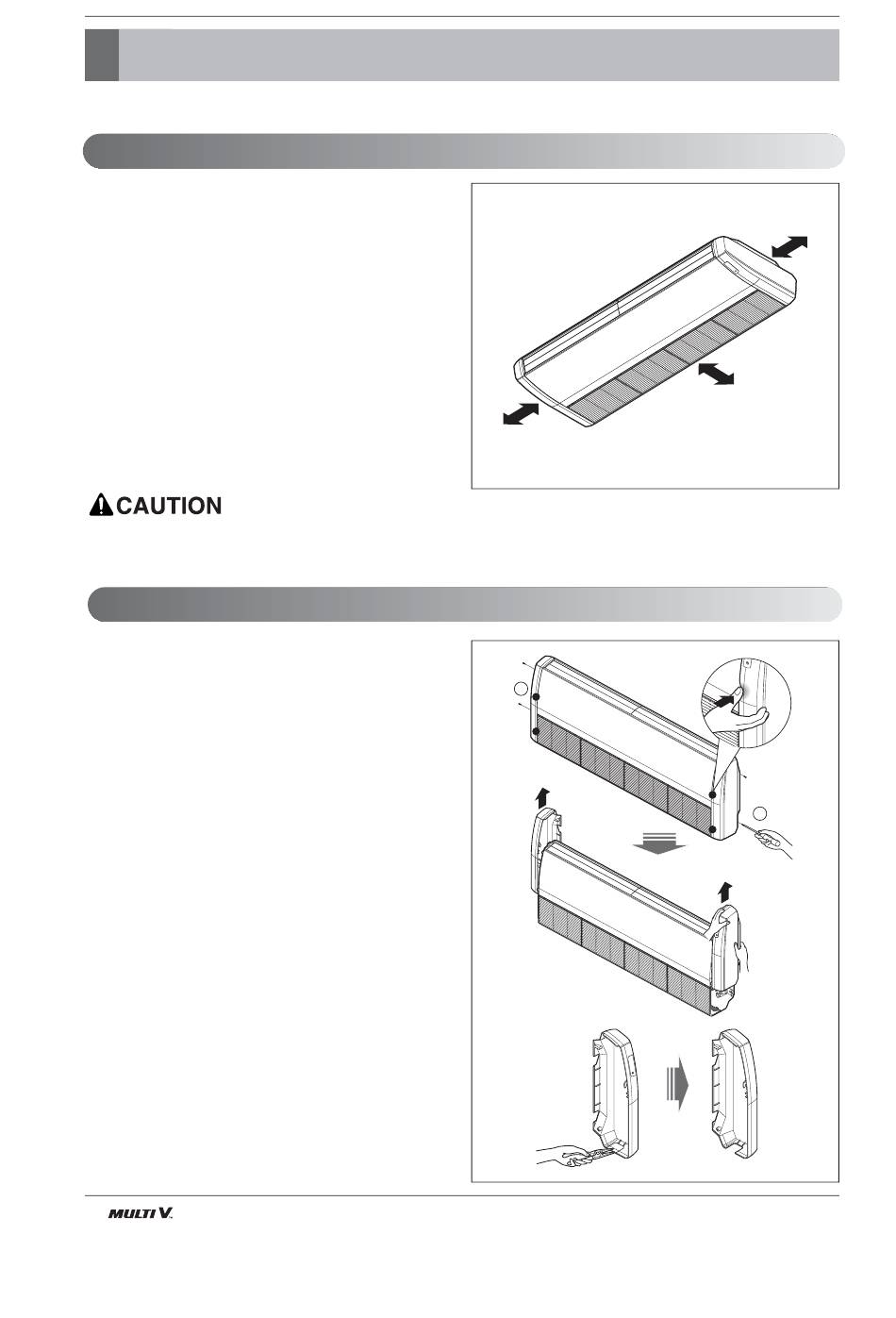

Select the best Location
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles in
front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure that the interval between a wall and the
left (or right) of the unit is more than 70cm.
6. Use a stud finder to locate studs to prevent
unnecessary damage to the wall.
In case that the unit is installed near the sea, the installation parts may be
:
corroded by salt. The installation parts (and the unit) should be taken appropriate anti-corrosion
measures.
Preparing Work for Installation
Open side cover
1. Remove two screws from side-cover as shown
in fig.
2. Unlock side-cover from side panel by slightly
pulling the edge of side cover.
3. Tap the side-cover with your palm on the back-
side.(Inlet grill side.)
4. Hold the side-cover with other hand while tap-
ping to prevent it to fall down.
5. The Drain hole is on the left side of the unit and
side cover opening is common for drain pipe,
connecting pipe and wiring diagram.
6. Remove the rubber stopple in the desired drain
direction.
7. Knock out the pipe hole from the left side-cover
with the help or nipper/plier.
8. Knock hole on right side-cover only if right side
is selected for water drain.
6
Indoor Unit
More than
70cm
2
More than
70cm
More than
30cm
Edge part
