INSTALLATION OF OUTDOOR UNIT

Read completely, then follow step by step.
You need to select adequate installation location
considering the following conditions, and make
sure to acquire the consent of the user.

Select the best location

Outdoor unit
1
If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
2

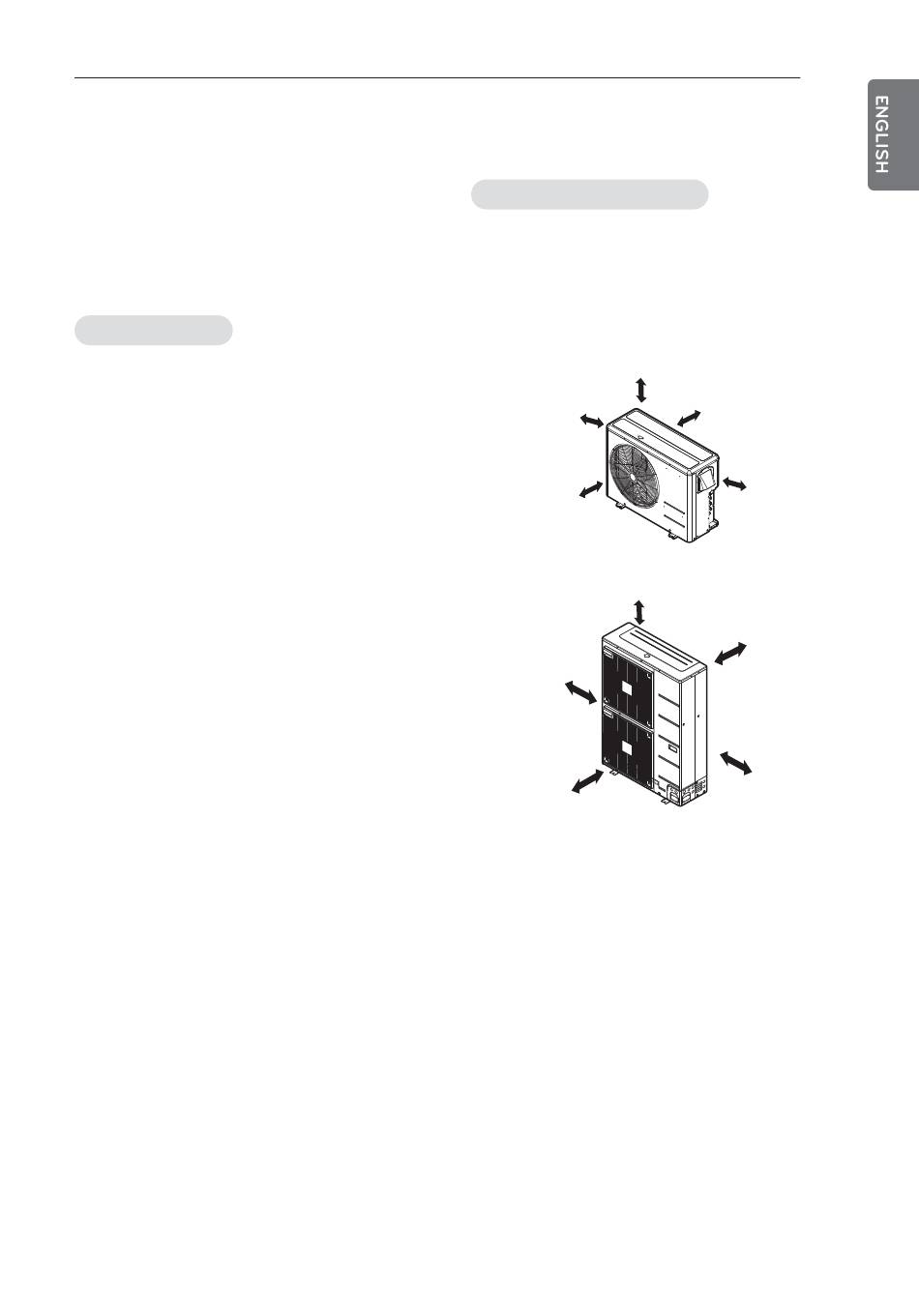

Ensure that the spaces indicated by arrows
around front, back and side of the unit.
3
Do not place animals and plants in the path of
the warm air.
4
Take the air conditioner weight into account
and select a place where noise and vibration
are minimum.
5
Select a place so that the warm air and noise
from the air conditioner do not disturb neigh-
bors.
6
Place that can sufficiently endure the weight
and vibration of the outdoor unit and where
even installation is possible.
7
Place that has no direct influence of snow or
rain.
8
Place with no danger of snowfall or icicle drop.
9
Place without weak floor or base such as
decrepit part of the building or with a lot of
snow accumulation.
10
Sufficient ventilation is secured.
INSTALLATION OF OUTDOOR UNIT
Rooftop Installations
If the outdoor unit is installed on a roof structure,
be sure to level the unit. Ensure the roof struc-
ture and anchoring method are adequate for the
unit location. Consult local codes regarding
rooftop mounting.
more than 60cm
more than
30cm
more than
70cm
more than 60cm
more than
30cm
more than
70cm
11
more than
30cm
more than
60cm
more than
30cm
more than
60cm
