4

Mounting

4.1
Safety information for installation and
assembly
Danger of poisoning from harmful
WARNING
fumes when welding galvanised or
painted components!
When welding galvanised or painted
components, fumes emerge that will
lead to health impairments when being
inhaled.
In order to avoid the production of
fumes, sand off the paint and, if
present, also the zinc layer on the
areas to be welded.
Installation work may only be carried out by
specialist staff.
Read these installation instructions before you
start installing the product.
Never carry out the installation on your own.
Some of the work steps can only be achieved
with two people working.
4.2

Scope of delivery

The scope of delivery comprises:
Dock leveller with pre-assembled components
– Hydraulic unit
– 4 transport lugs
Assembly and operating instructions

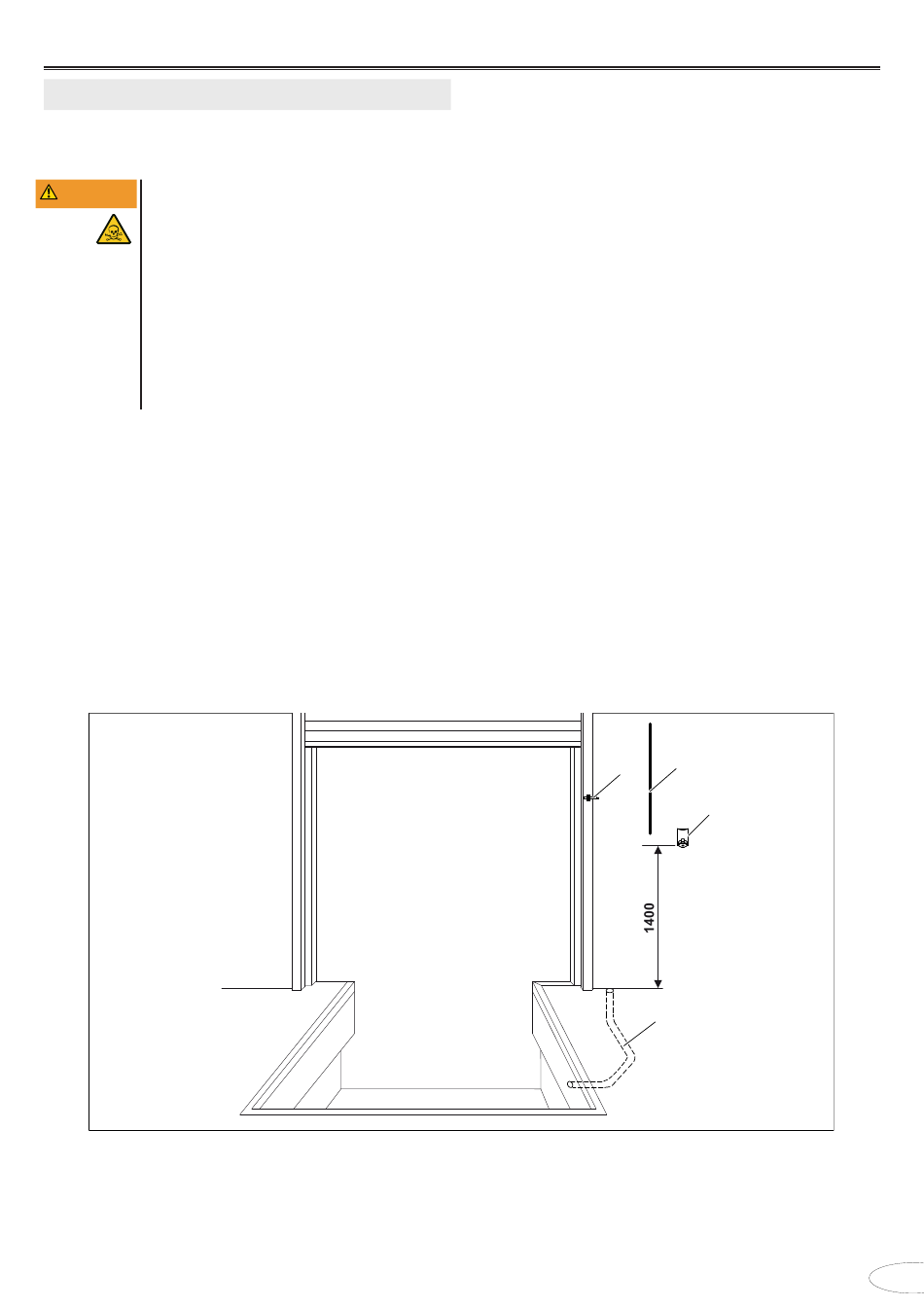

Fig. 6: Exemplary representation
1
Mains connection: 3 N~, 400 V, 50 Hz
Main fuse protection: 10 A
2
Empty conduit (cable channel), inner diameter
min. 70 mm, ≤ 45° pipe bends
These assembly, operation and maintenance instructions must be kept for the entire period of use!
Cardboard box with:
– Control unit including cabling
– Assembly and operating instructions of the
control unit
– Short operating manual
– Cable clamps
– Sealing plugs
Touch-up paint (if applicable)
4.3

Mounting requirements

4.3.1 Preparation (not included in the scope of
delivery)
Before carrying out any installation work, make sure
that the following requirements are met:
For all installation conditions:
The dimensions of the installation point
correspond to the specifications in the installation
drawing.
– Length and width
– Height (front and rear side)
– Perpendicularity (difference in length of the
diagonals max. 10 mm)
Position and design of the empty conduit
(Ø 70 mm) for laying the cable according to the
installation drawing.
The mains connection is available near the
control unit's place of installation.
The previous dock leveller has been dismantled.
The remaining steel frame at the installation point
is still intact.
4
3
16 A CEE socket
4
Sensor position door (optional)
1
3
2
EN - 29
