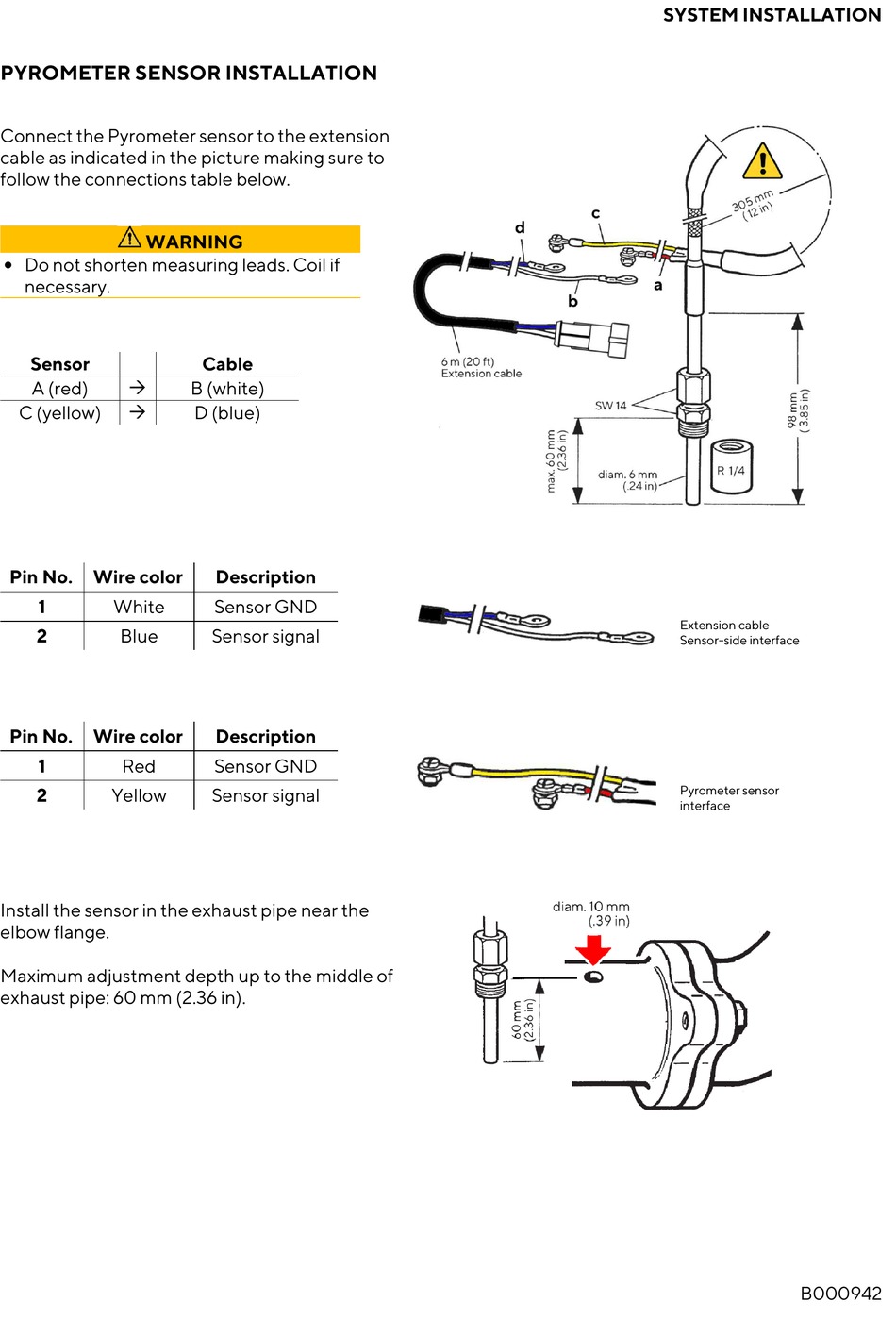

PYROMETER SENSOR INSTALLATION

Connect the Pyrometer sensor to the extension
cable as indicated in the picture making sure to
follow the connections table below.
WARNING
• Do not shorten measuring leads. Coil if
necessary.
Sensor
A (red)
C (yellow)
Pin No.
Wire color
1
White
2
Blue
Pin No.
Wire color
1
Red
2
Yellow
Install the sensor in the exhaust pipe near the
elbow flange.
Maximum adjustment depth up to the middle of
exhaust pipe: 60 mm (2.36 in).
Cable
B (white)
D (blue)
Description
Sensor GND
Sensor signal
Description
Sensor GND
Sensor signal
SYSTEM INSTALLATION
Extension cable
Sensor-side interface
Pyrometer sensor
interface
B000942
