INTRODUCTION

SYSTEM COMPONENTS

Component
1x LinkUp gateway
1x Pyrometer sensor
1x 6m extension cable
1x Safety Instructions

THE LINKUP GATEWAY CONCEPT

The Link Up Pyrometer gateway (hereinafter
"Device" or "Link Up") provide an easy method to
provide the exhaust temperature to NMEA 2000.
Easily installed, the LinkUp gateway replaces the
original wiring, delivering power to both the
LinkUp device and sensor from the NMEA 2000
backbone while still being compliant with the
NMEA 2000 certification requirements.
The data are then available for being displayed on
any OceanLink, AcquaLink, or more in general on
any glass cockpit NMEA 2000 display device.

DESIGN AND FUNCTION

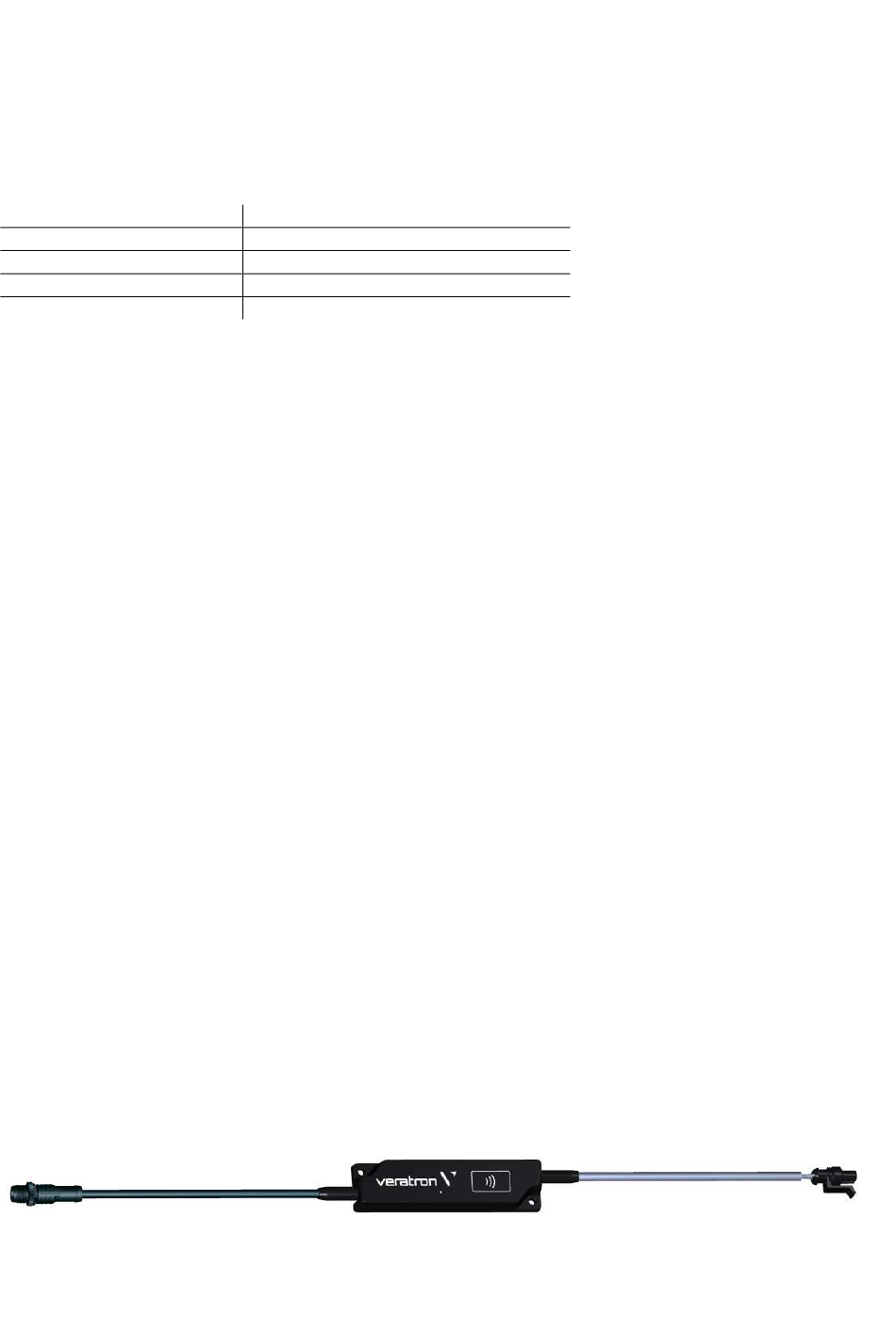

The Link Up gateway has a simple but yet
effective design.
The housing filled with bi-component resin allows
the unit to be installed in Engine Rooms, making it
compliant to the ISO 8846:1990 as requested by
the directive 2013-53(EC).
The standard NMEA 2000® M12 plug allows for a
plug-and-play installation to the network
backbone.
Article Number
B000423
N03-320-264
B000632
B000100
Configuring LinkUp gateways is simple using a
mobile device and the companion LinkUp
Configurator App for Android or iOS.
Each device has a built-in passive NFC antenna,
so the parameters of the sensor are wirelessly
configured to type, instance and warning
threshold on the mobile device which is then
"tapped" against the LinkUp device for instant
data download.
The pyrometer sensor serves to monitor
accurately the temperature in the elbow flange of
the exhaust pipe and indicates eventual thermal
overload of the engine.
The sensor connection to the LinkUp happens
though an extension cable provided with an AMP
SuperSeal plug, which perfectly matches the
LinkUp, without the need of additional wiring.
