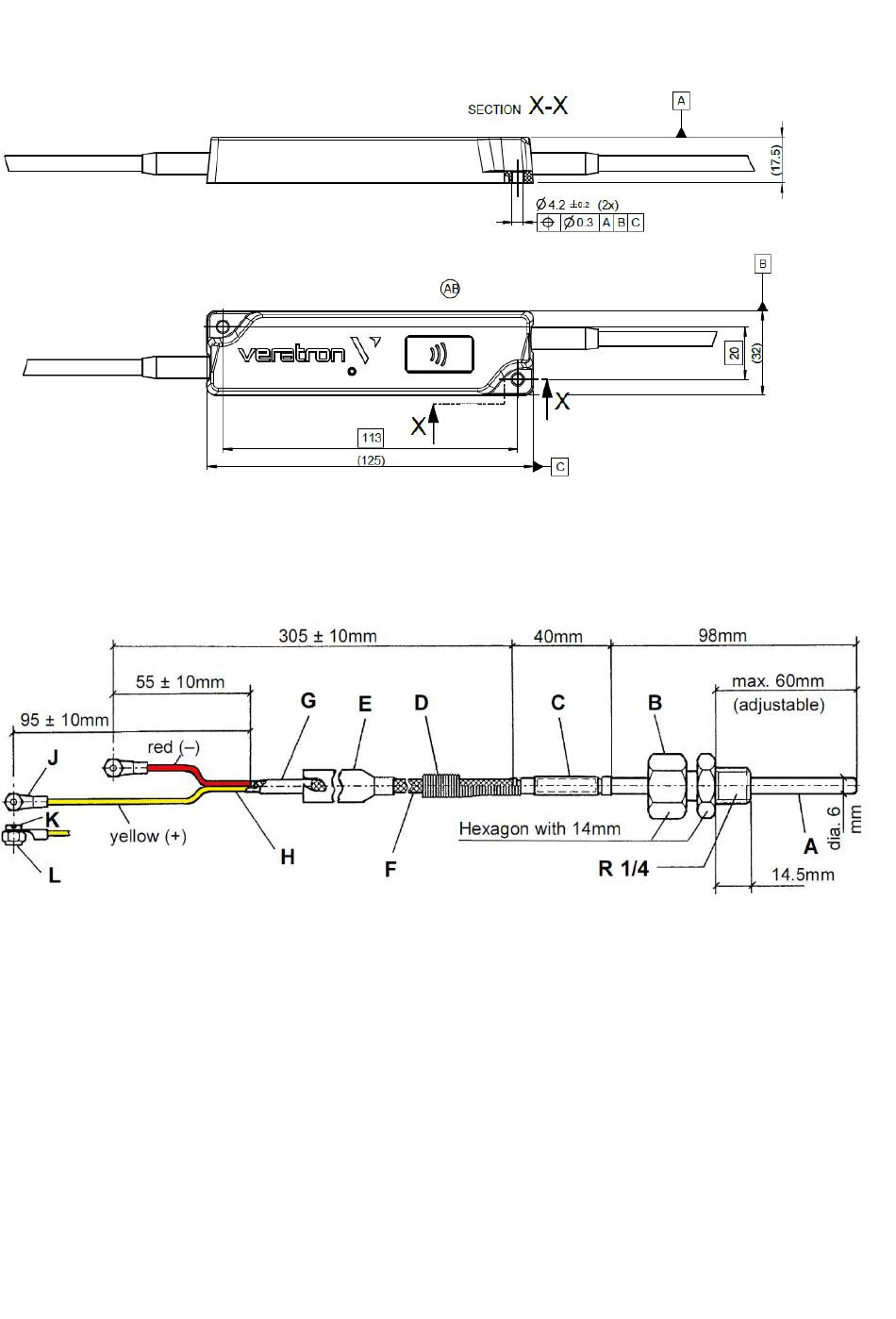

DIMENSIONS

LINKUP GATEWAY
PYROMETER SENSOR
A Thermoelement: NiCr-Ni DIN 43710
(with casing insulation)
B V-ring bolting
C Sleeve with sheathing, brazed
D Break protection spring
E Heat shrink tube
F VA wire wounding
G Rubber grommet
H Compensating wire: NiCr-Ni, 2x 0.5
2
mm
J Cable lug (2x): DIN 46237-3.5
K Screw (2x): M3 x 6
L Lock nut: M3
