CONNECT TO THE NMEA 2000® NETWORK
Once the sensor installation is complete it is possible to
interface the Link Up gateway to the NMEA 2000® network
through the dedicated DeviceNet plug.
Please ensure to tighten the M12 connector by screwing it
onto its counterpart, so to preserve the water tightness.
A drop cable is not needed unless the total length of the Link
Up device is not enough to reach the NMEA 2000®
backbone. In this case it is possible to extend the total length
by using one of the accessory drop cables.
Please note that NMEA 2000® does not allow drop cables
longer than 6 meters.
Refer to the NMEA 2000® standard for a proper network
design.
If power from the NMEA 2000® network is received, the
green LED on the Link Up housing will start flashing (see "LED
notifications").

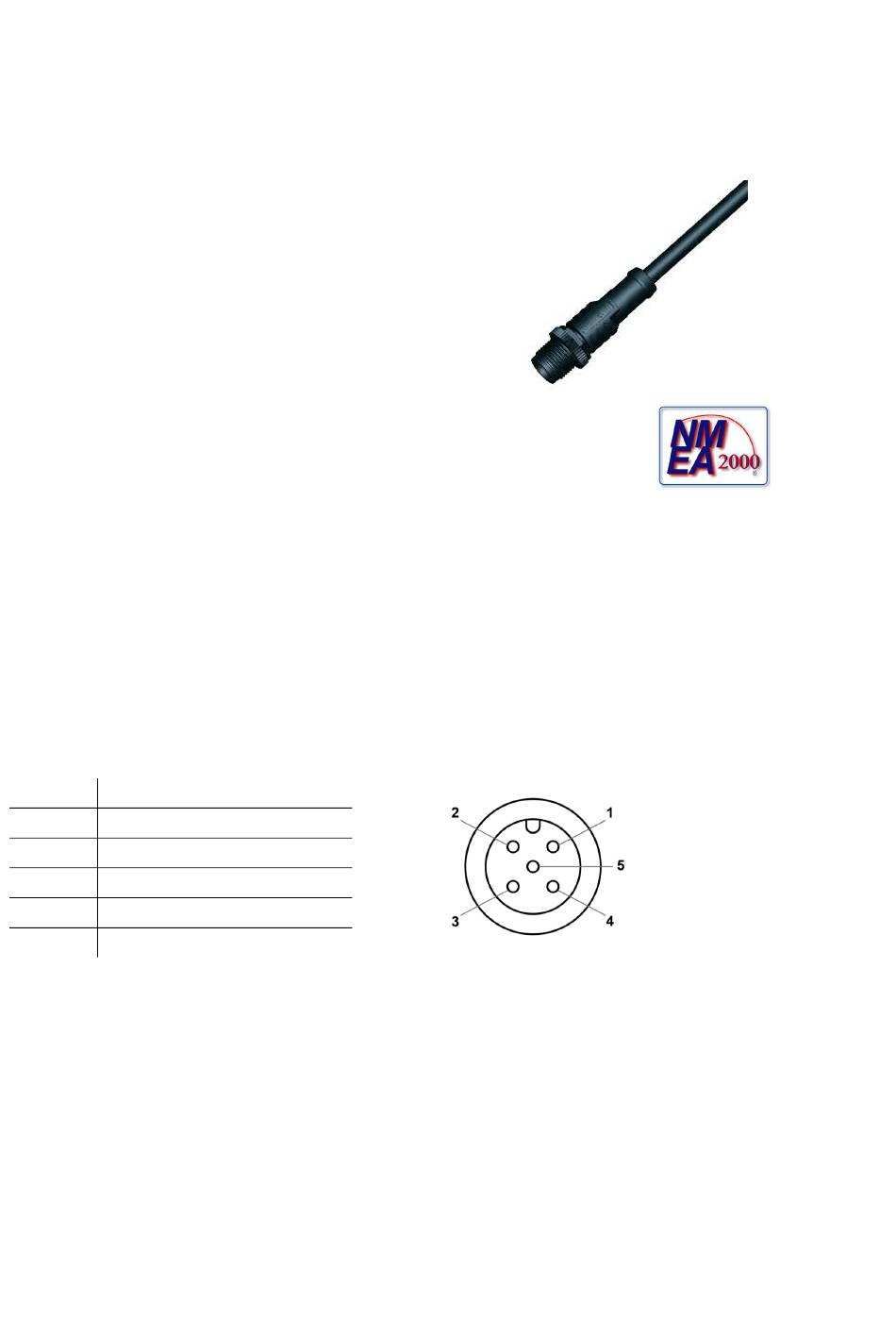

Pin No. Description
1 Shield
2
NET-S (V+)
3 NET-C (V-)
4 NET-H (CAN H)
5 NET-L (CAN L)
SYSTEM INSTALLATION
DeviceNet M12 5-poles
NMEA 2000® plug
B000942
