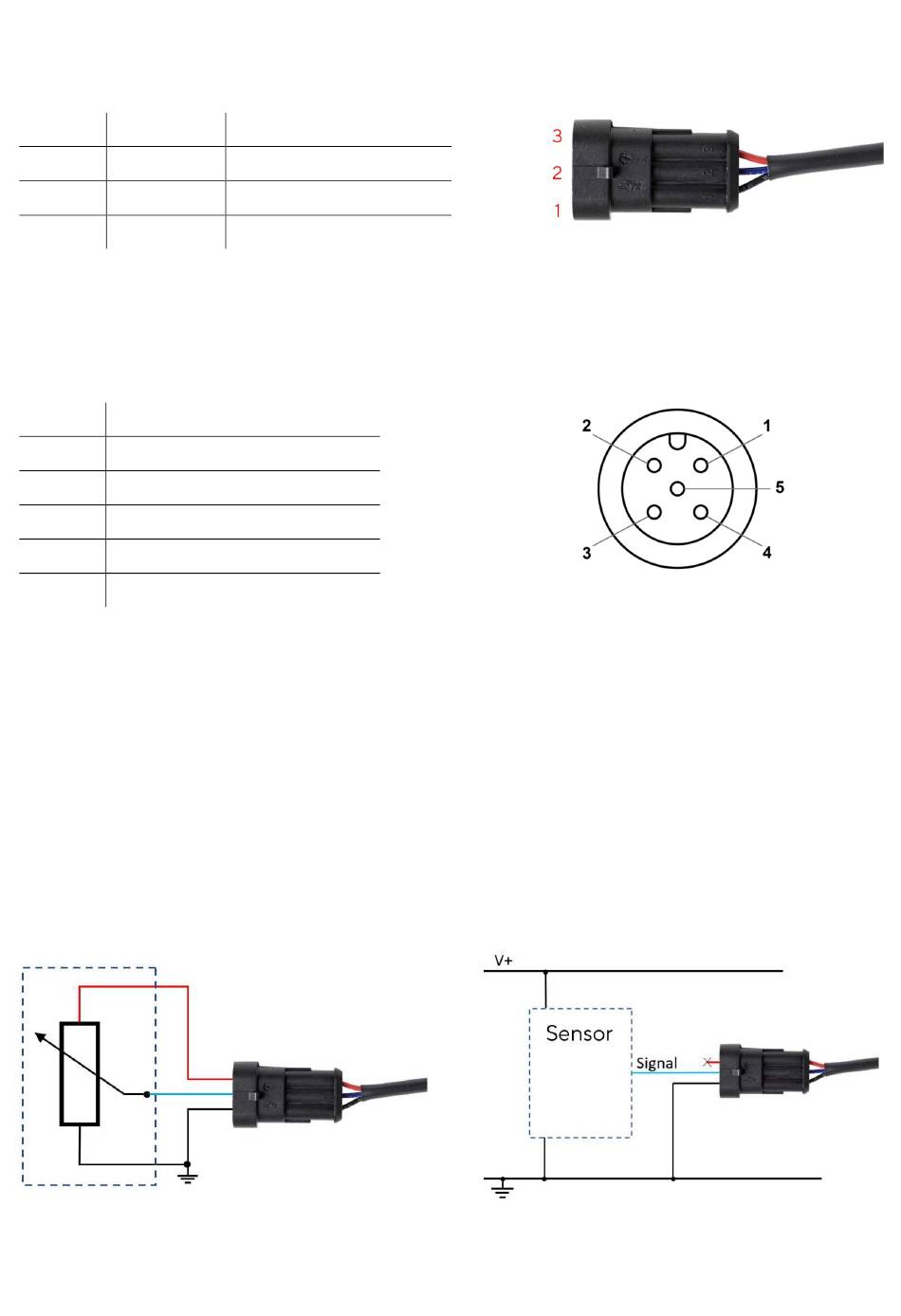

PINOUT

SENSOR SIDE
Pin No. Wire color
1 Black
2 Blue
3 Red
NMEA 2000 SIDE
Pin No. Description
1 Shield
2 NET-S (V+)
3 NET-C (V-)
4 NET-H (CAN High)
5 NET-L (CAN Low)

CONNECTING A SENSOR

When possible, use the dedicated sensor plug. If the required sensor does not have the fitting counterpart
and it is not possible to attach such a connector, just cut off the LinkUps plug and complete the wiring with
the given interface. Refer to the pinout above for that.
The LinkUp Gateway delivers a 5V-supply voltage that can be used to power an passive sensor. Note that
the power output does not deliver more than 15mA of current.
When using an active sensor, make sure it does not provide signals higher than 5V.
Passive Sensor Connection
7
Description
GND
Signal
5V-Supply (max. 15 mA)
SYSTEM INSTALLATION
3
2
1
AMP Super Seal 3-poles
Micro-C M12 5 poles plug
Male, product side view
Active Sensor Connection
Male
