LINKUP CONNECTION

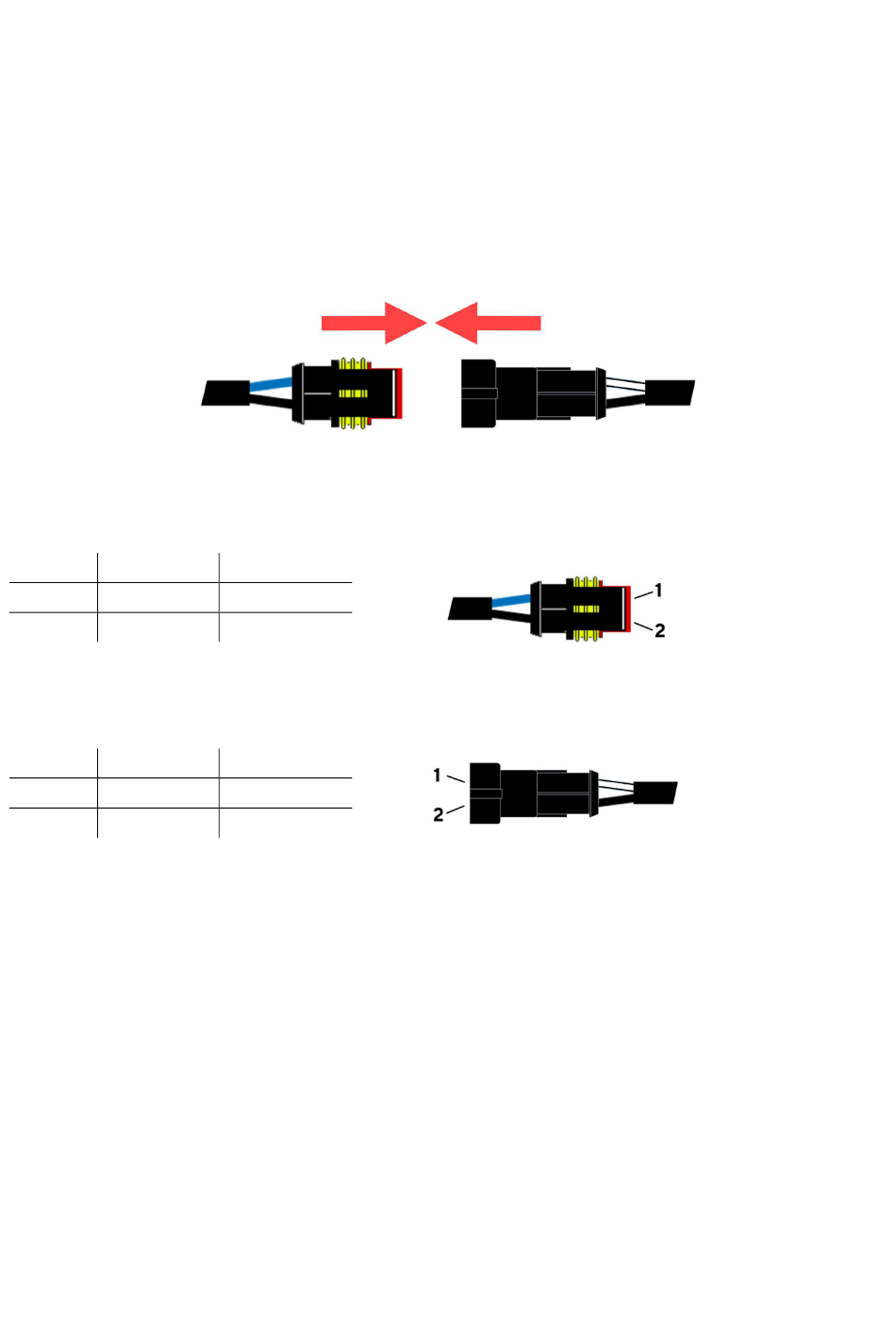

Connect the Link Up sensor-side plug to the 6 m
extension cable B000632 to interface the
pyrometer sensor.
Pin No. Wire color
1 Black
2
Blue
Pin No. Wire color
1 White
2 Blue
Description
Sensor GND
Sensor Signal
Description
Sensor GND
Sensor Signal
The 6 m extension cable B000632 is designed
with the mating AMP SuperSeal connector for a
plug-and-play installation.
The contacts must audibly lock into place.
SYSTEM INSTALLATION
LinkUp sensor-side plug
Extension cable
LinkUp-side plug
B000942
