INTRODUCTION
This manual is an integral part of the dryer you bought, and must remain with the machine even if this will be resold.
It is highly recommended that the qualified*personnel for installation maintenance and/or control will fully comply with the contents
of this manual and the prevention and safety rules in force in the country where the system will be used. In this way, not only the
usage of the machine will be rational, but also the service will result cost effective.
In case your dryer will present any kind of problem, please contact your local authorized Ingersoll Rand distributor.
Please note that, when necessary, the use of original spare parts will ensure efficiency and long duration to your dryer.
Due to the continuous technological evolution, Ingersoll Rand reserves the right to modify the specifications contained in this
manual without giving previous notice.

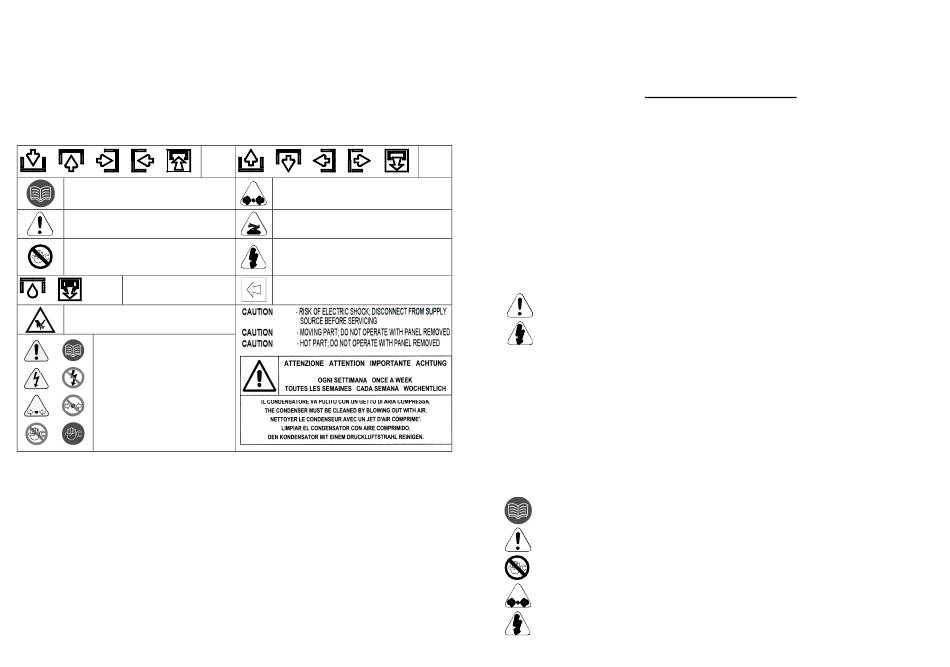

SYMBOLS AND LABELS USED IN THE MANUAL AND ON THE DRYER

or or or or
Read the Operators manual before attempt to
start up the machine and to perform any service
operation on the dryer.
Pay particular attention to the indications
preceded by these symbols.
Installation, maintenance, and/or
operations preceded by these symbols must be
performed exclusively by qualified personnel*.
Condensate drain point.
or
Pay particular attention to the risk of moving
parts
Attention: Before performing
maintenance operation on
machine, do not forget to disconnect
the electric supply, to completely
discharge air pressure, and to refer to
the Operators manual
* Qualified personnel must be trained and certified in accordance with local laws and regulations.
WARRANTY
The Company warrants that the equipment manufactured by it and delivered hereunder will be free of defects in material and
workmanship for a period of twelve months from the date of placing the Equipment in operation or eighteen months from the date of
shipment from the factory, whichever shall first occur. The Purchaser shall be obligated to promptly report any failure to conform to
this warranty, in writing to the Company in said period, whereupon the Company shall, at its option, correct such nonconformity, by
suitable repair to such equipment or, furnish a replacement part F.O.B. point of shipment, provided the Purchaser has stored,
installed, maintained and operated such Equipment in accordance with good industry practices and has complied with specific
recommendations of the Company. Accessories or equipment furnished by the Company, but manufactured by others, shall carry
whatever warranty the manufacturers have conveyed to the Company and which can be passed on to the Purchaser. The Company
shall not be liable for any repairs, replacements, or adjustments to the Equipment or any costs of labor performed by the Purchaser or
others without Company's prior written approval.
The effects of corrosion, erosion and normal wear and tear are specifically excluded. Performance warranties are limited to those
specifically stated within the Company's proposal. Unless responsibility for meeting such performance warranties are limited to
specified tests, the Company's obligation shall be to correct in the manner and for the period of time provided above.
THE COMPANY MAKES NO OTHER WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER, EXPRESSED OR
IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE HERBY DISCLAIMED.
CCN 24467904 Rev D CN 1003601
Cod. 710.0048.28.00 Rev01 – 01.2017
- EN -
Air
inlet.
or or or or
Pay particular attention to components or systems
under pressure.
Pay particular attention to hot surfaces.
control
Pay particular attention to the risk of electric
shock.
Rotation direction of the fan.
any
this
Correction by the Company of nonconformities whether patent or latent, in the manner and for the period of time provided
above, shall constitute fulfillment of all liabilities of the Company for such nonconformities whether based on contract, warranty
negligence, indemnity, strict liability or otherwise with respect to or arising out of such Equipment.
The Purchaser shall not operate Equipment which is considered to be defective, without first notifying the Company in
writing of its intention to do so. Any such use of Equipment will be at Purchaser's sole risk and liability.
Note that this is Ingersoll Rand standard warranty. Any warranty in force at the time of purchase of the equipment or
negotiated as part of the purchase order may take precedence over this warranty.

1.1 FUNCTIONAL DESCRIPTION

Ingersoll Rand refrigerated air dryers remove moisture from compressed air. Moisture is detrimental to pneumatically
operated appliances, controls, instruments, machinery and tools.
Compressed air enters the patented aluminum heat exchanger where it is cooled down to the dew point temperature in two
different stages: In the first air/air sector compressed inlet air is cooled thanks to the colder compressed air coming out
Air counterflow from the condensate separator. In the second refrigerant / air sector, compressed air temperature is further
lowered to the dew point temperature. During this two stages almost all the oil and water vapours contained in compressed air
outlet.
are condensed to liquid and successively be separated from the compressed air in the condensate separator and drained out
by the automatic drain. At this point the obtained cold air re-enters counterflow the initial air / air exchanger and it is reheated
by the inlet hot air with the consequence of energy recovering and also reduction of the relative humidity contained in the
outflowing air.
This dryer can be easily installed into various pneumatic systems in which dry air is required or desired. Please refer to
Principles of Operation for complete operating details.
The dryer comes provided with all the control, safety and adjustment devices, therefore no auxiliary devices are
needed.
A system overload not exceeding the maximum operative limits can worsen the operational performance of the dryer
(high dew point), but it will not affect its safety.
The electric diagram (attachment B) shows the minimum protection degree IP 42.
Improper grounding can result in electrical shock and can cause severe injury or death.
This product must be connected to a grounded, metallic, permanent wiring system or an equipment-grounding
terminal or lead on the product.
All grounding must be performed by a qualified electrician and comply with national and local electrical codes.
In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for
the electric current.
Ground must be established with a bare grounding wire sized according to the voltage and minimum branch circuit
requirements.
Ensure good bare metal contact at all grounding connection points, and ensure all connections are clean and tight.
Check grounding connections after initial installation and periodically thereafter to ensure good contact and
continuity has been maintained.
Check with a qualified electrician or service technician if the grounding instructions are not completely understood, or
if in doubt as to whether the product is properly grounded.

1.2 USE OF THE MACHINE IN SAFE CONDITIONS

This system has been designed and manufactured in compliance with the European safety directive in force,
therefore any installation, use and maintenance operations must be performed respecting the instructions contained in
this manual.
Because an air dryer is pressurized and contains rotating parts, the same precautions should be observed as with
any piece of machinery of this type where carelessness in operation or maintenance could be hazardous to personnel.
In addition to obvious safety rules that should be followed with this type of machinery, safety precautions as listed below
must be observed.
1. Only qualified personnel shall be permitted to adjust, perform maintenance or repair this air dryer.
2. Read all instructions completely before operating unit.
3. Pull main electrical disconnect switch and disconnect any separate control lines, if used, before
attempting to work or perform maintenance on the unit.
4. Do not attempt to service any part while machine is in an operational mode.
5. Do not attempt to remove any parts without first relieving the entire air system of pressure.
6. Do not attempt to remove any part of the refrigeration system without removing and containing
refrigerant in accordance with the EPA and local regulations.
7. Do not operate the dryer at pressures in excess of its rating.
8. Do not operate the dryer without guards, shields and screen in place.
9. Inspect unit daily to observe and correct any unsafe operating conditions.
