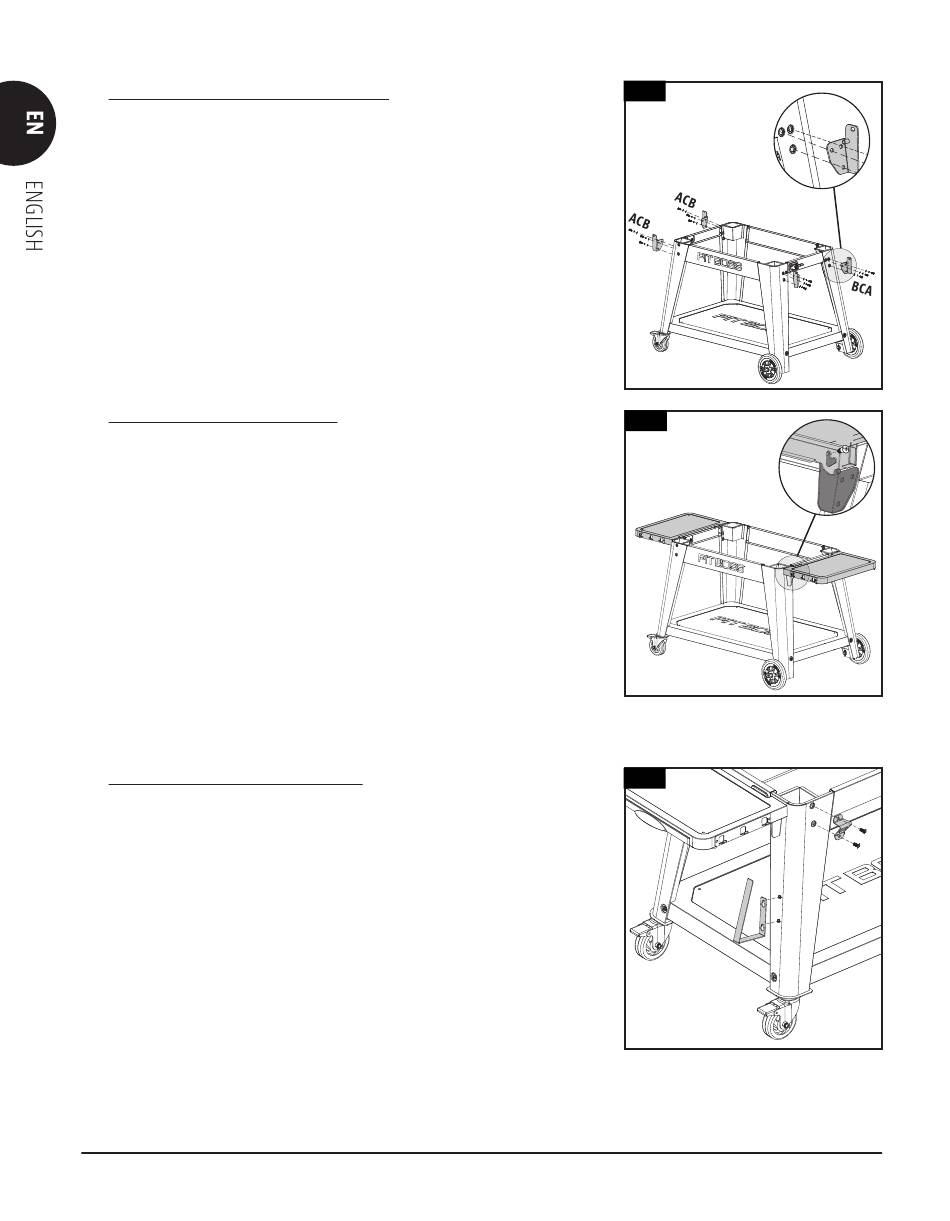

4. SECURING THE SIDE SHELF BRACKETS

Parts Required:
2 x Side Shelf Bracket - Left (#15)
2 x Side Shelf Bracket - Right (#16)
12 x Screw (#A)
12 x Washer (#B)
12 x Locking Washer (#C)
Installation:
• Mount one Side Shelf Bracket to a Support Leg using three washers,
locking washers and screws. Install each screw halfway first, then
tighten completely when all three screws are mounted and aligned
properly. Repeat installation for the other three Side Shelf Brackets to
the remaining three Support Legs.

5. INSTALLING THE SIDE SHELVES

Parts Required:
1 x Side Shelf - Left (#12)
1 x Side Shelf - Right (#13)
4 x Screw (#D)
Installation:
• Align and position one Side Shelf on the Side Shelf Brackets on one side
of the unit. From underneath, secure a screw into each corner, as shown
in illustration. Repeat same installation for the Side Shelf on the other
side of the unit.
NOTE: Once installed, both Side Shelves can be raised (for use) or
lowered (for storage) with ease.
IMPORTANT: Avoid using the Side Shelves to move or lift the unit.
The weight of the unit will cause the shelves to break, which is not
covered by warranty.

6. MOUNTING THE EXTRA FEATURES

Parts Required:
1 x Paper Towel Hook (#14)
1 x Bottle Opener (#21)
2 x Screw (#A)
Installation:
• Mount the Bottom Opener to the Front-Left Support Leg using two
screws. Note illustration for correct orientation, with opening angled
downwards.
• Install the Paper Towel Hook on the two pre-mounted screws of the
same Support Leg. Press down to ensure the Paper Towel Hook stays
secure in place.
