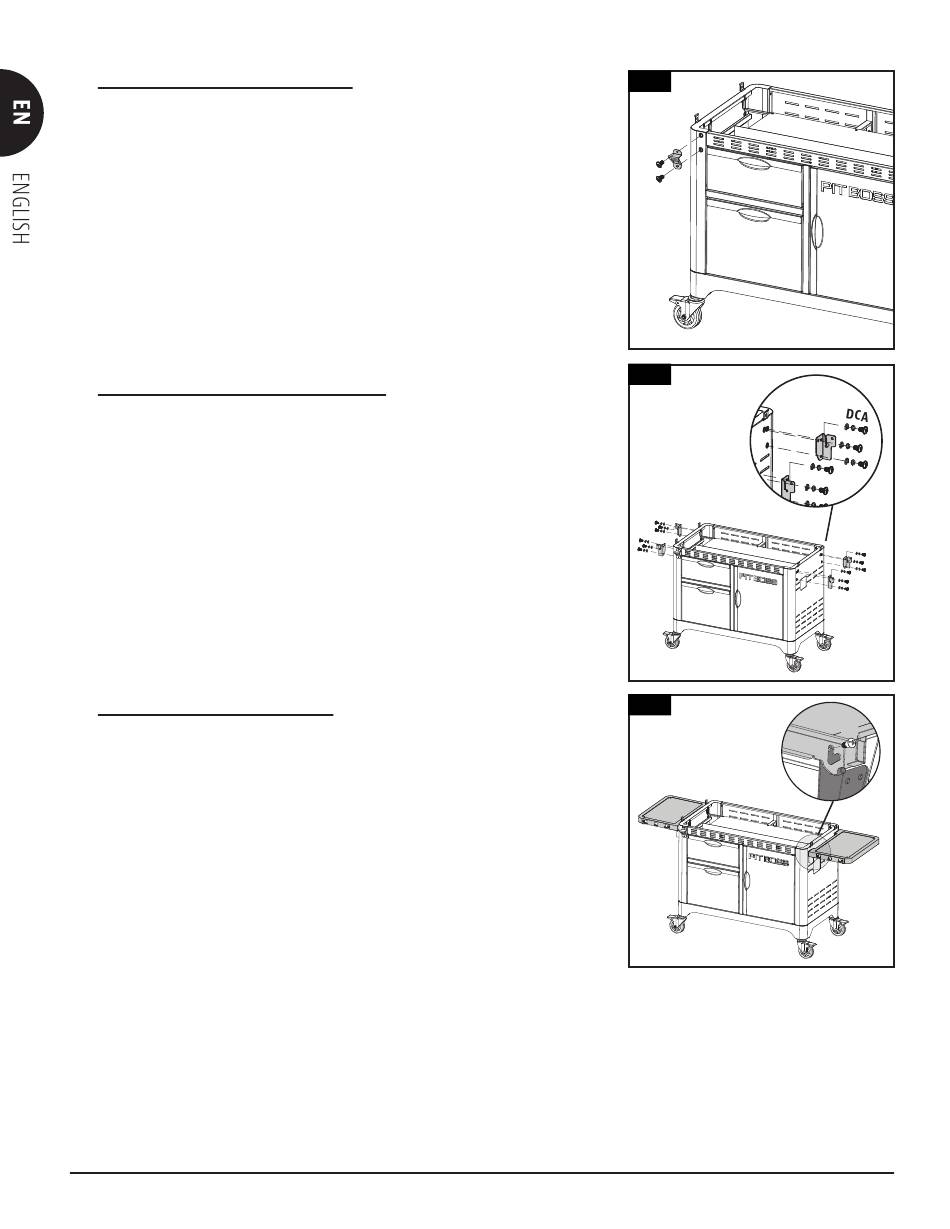

9. MOUNTING THE BOTTLE OPENER

Parts Required:
1 x Bottle Opener (#12)
2 x Screw (#A)
Installation:
• Mount the Bottle Opener to the Front-Left corner of the Cart using two
screws. Note illustration for correct orientation, with opening angled
downwards.

10. SECURING THE SIDE SHELF BRACKETS

Parts Required:
2 x Side Shelf Bracket - Left (#10)
2 x Side Shelf Bracket - Right (#11)
12 x Screw (#A)
12 x Locking Washer (#C)
12 x Washer (#D)
Installation:
• Mount one Side Shelf Bracket to a Cart Side Panel using three washers,
locking washers and screws. Install each screw halfway first, then
tighten completely when all three screws are mounted and aligned
properly. Repeat installation for the other three Side Shelf Brackets.

11. INSTALLING THE SIDE SHELVES

Parts Required:
1 x Side Shelf - Left (#8)
1 x Side Shelf - Right (#9)
4 x Screw (#F)
Installation:
• Align and position one Side Shelf on the Side Shelf Brackets on one side
of the unit. From underneath, secure a screw into each corner, as shown
in illustration. Repeat same installation for the Side Shelf on the other
side of the unit.
NOTE: Once installed, both Side Shelves can be raised (for use) or
lowered (for storage) with ease.
IMPORTANT: Avoid using the Side Shelves to move or lift the unit.
The weight of the unit will cause the shelves to break, which is not
covered by warranty.
8
9
12
A
10
11
10
11
11
8
11
10
F
9
