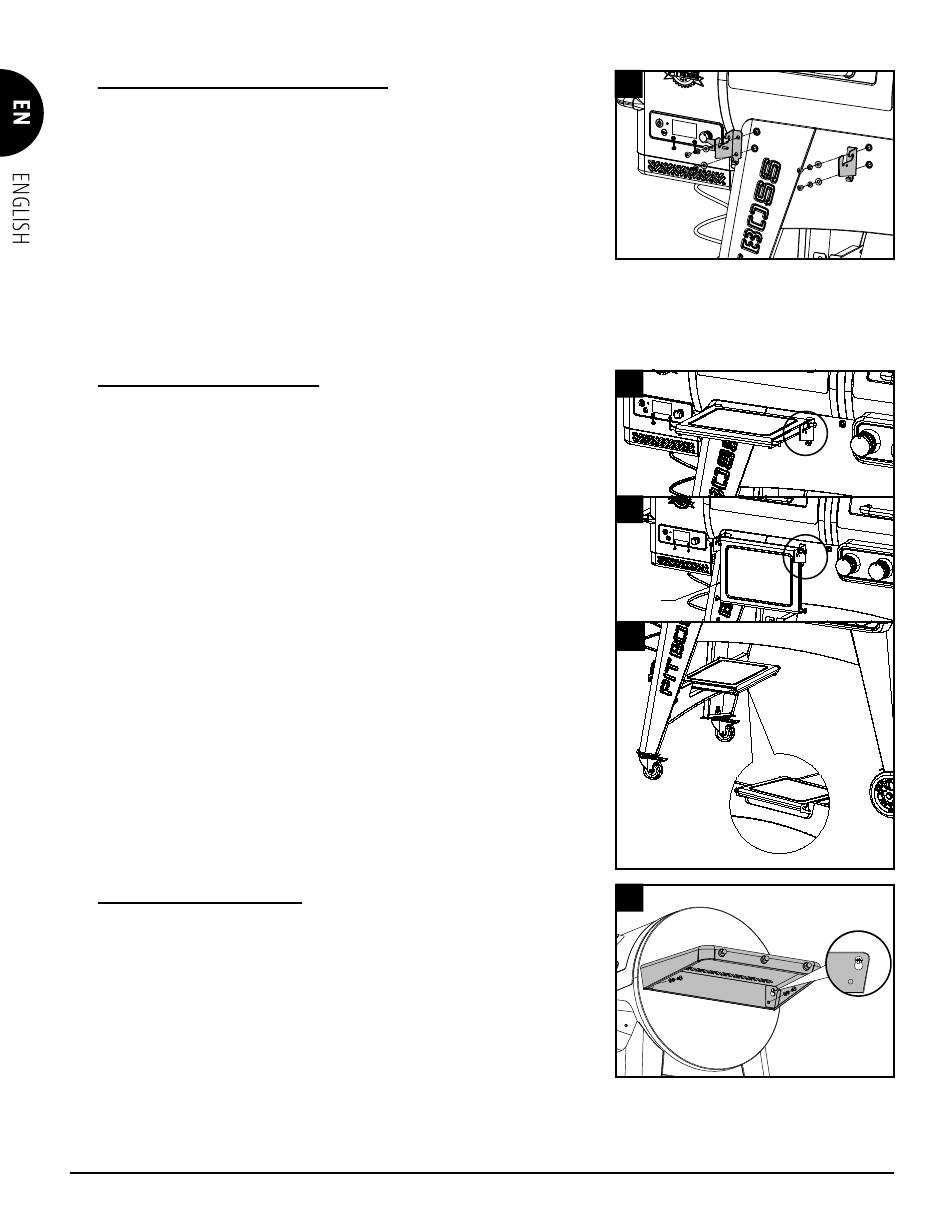

10. SECURING THE FRONT SHELF BRACKETS

Parts Required:
1 x Front Shelf Bracket / Left (#32)
1 x Front Shelf Bracket / Right (#33)
Screw (#A)
4 x
Washer (#B)
4 x
4 x Locking Washer (#C)
Installation:
• Attach one Front Shelf Bracket to the front of the Grill Barrel by using two
screws. Install each screw half-way, then tighten completely when all two
screws are mounted and aligned properly. Repeat the same installation for
the other Front Shelf Bracket.

11. INSTALLING THE FRONT SHELF

Parts Required:
1 x Front Shelf (#34)
Installation:
• Place the Front Shelf on the Front Shelf Support Brackets. Note illustration 11A
as unfolded Front Shelf.
• Note illustration 11B as folded Front Shelf.
• Front Shelf can also be placed on the Bottom Support Plates and be used as
Bottom Plate. Note illustration 11C.

12. INSTALLING THE SIDE SHELF

Parts Required:
1 x Side Shelf (#14)
Installation:
• Loosen the two pre-installed screws from the side of the Main Barrel. Hook
up the Side Shelf on the screws first then secure the two pre-loosened screws
into place.
• From underneath, secure the Side Shelf to the side panel of the Main Barrel
using two screws, washers, and locking washers.
8
34
10
32
11A
11B
34
11C
12
MOUNTING THE FRONT SHELF
33
ACB
14
