BLA 50A-001-S115
Balluff Light Array
4

Operation and mode selection

4.1

Introduction

After the unit is powered up, it is ready to use and displays
the current measurement values together with the selected
measuring modes.
The unit is controlled using 4 keys on the BLA receiver:
Number of the
detected object
Digital outputs
selected mode
Digital outputs
Detection
tolerance
Area automatically
hidden for
Normalize
(Autoblanking)
Analog output 2
selected mode

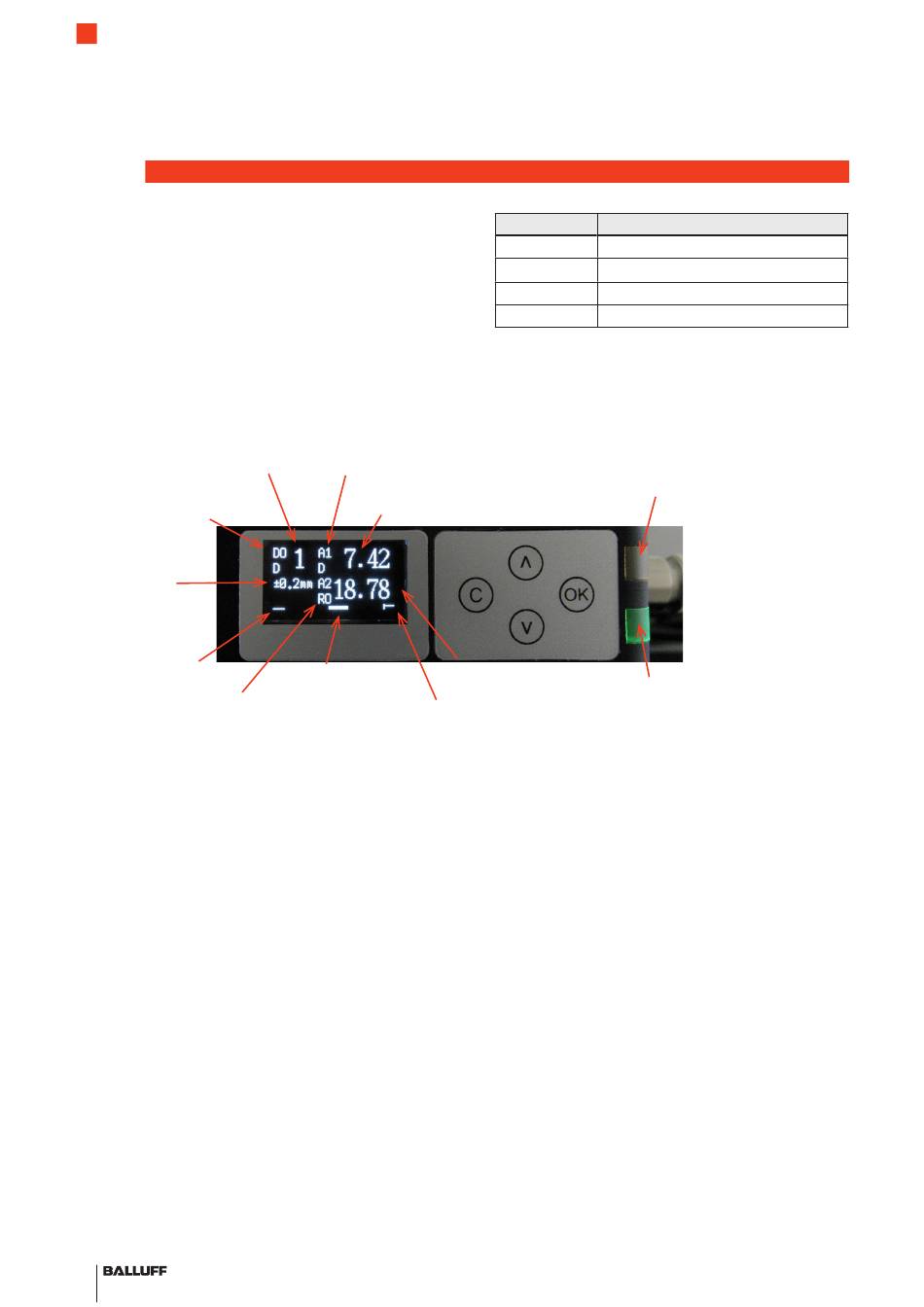

Fig. 4-1: View showing value display
Status LED meanings:
– LED1 (green): Always turned on
– LED2 (yellow): On when there is an object in the field (at least one edge detected)
8 english
Analog output 1
selected mode
Analog output 1
Current measurement value [mm]
Analog output 2
Visualization of the
Current measurement value [mm]
object in the light band
Hidden area
(Blanking function active)
Label Function
C Go back to the higher menu level
∧
Page forward in the list; increase values
∨
Page back in the list; decrease values
OK Confirm
Changes to the settings are automatically saved and are
stored after power is turned off.
Status LED 2
(object display)
Status LED 1
(power indicator)
