5.4 Adjustment of the azimuth

Please note:
The azimuth is already set at the factory.
The azimuth is the angle of the cartridge stylus to the record surface. Viewed from the front, the
cartridge needle have to be vertical to the record.
If you still want to optimize the azimuth, lower the cartridge onto the record surface and check the
position of the needle.
To change the azimuth, please proceed as following:
Loosen the screw (hex wrench #2) on the bottom side of the tonearm tube near the headshell.
Now you can adjust the azimuth by turning the headshell in the tonearm tube.
After you have found the correct position, carefully tighten the small hex screw again without
changing the previously selected position.
To check this adjustment, we recommend the Clearaudio „Mini Level Gauge"
(Art. No. AK001, available at www.analogshop.de).

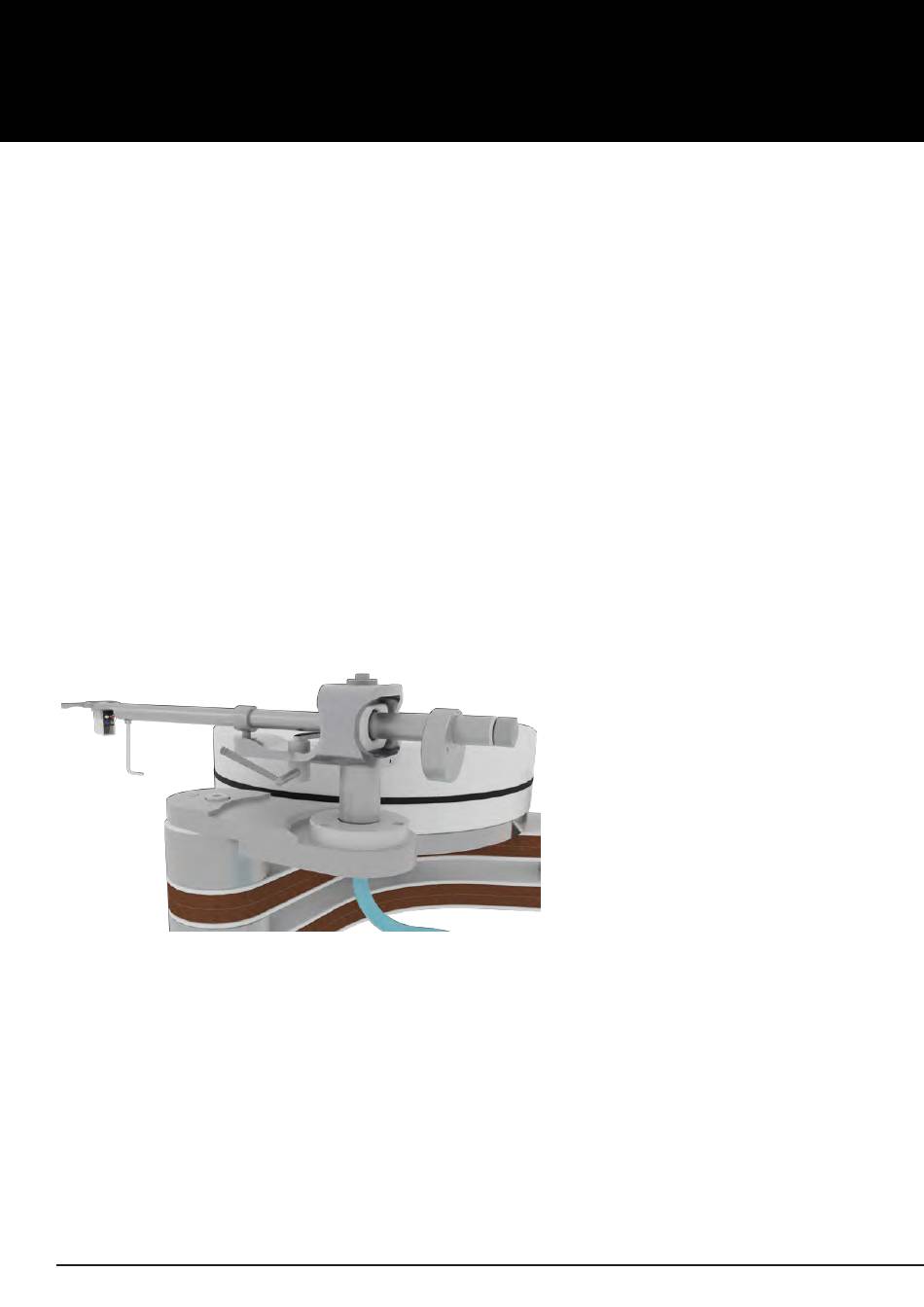

Pic. 15: Adjustment of the azimuth
