User manual / Bedienungsanleitung
3. Mounting the
Magnify
To assemble the
VTA-Lifter.

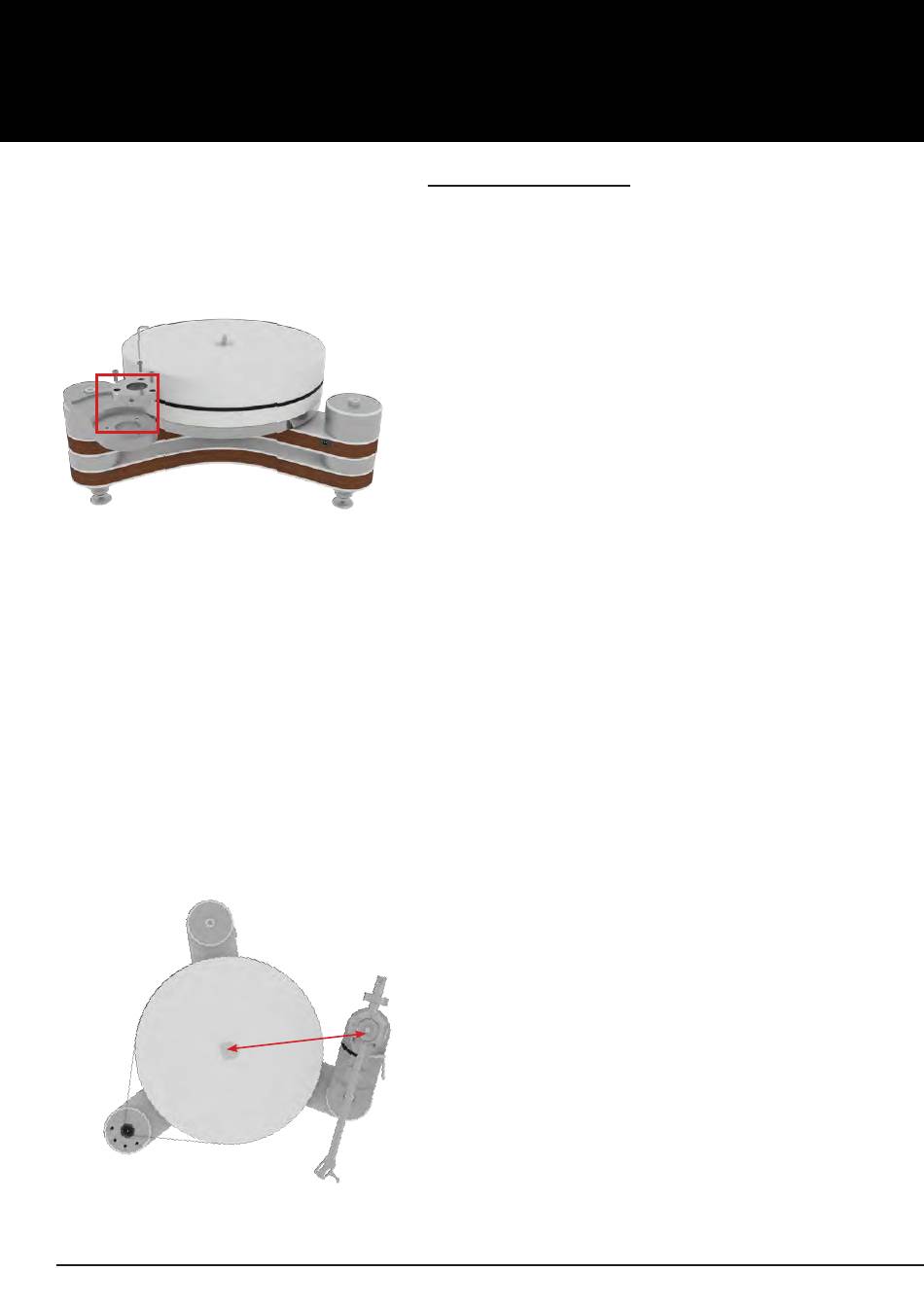

Pic. 9: Mounting the clamping ring without VTA-Lifter
4. Adjustment of the distance between spindle and pivot point
For the exact setting of the tonearm pivot point, we recommend to use the Clearaudio alignment
gauge (Art. No. AC005/IEC, also available from www.analogshop.de).
Make sure that the distance between spindle and the pivot point of the tonearm is exactly 222mm
(Pic. 10). You can adjust the distance by rotating the tonearm base.
Please tighten the tonearm base and check the measurement again.
222 mm
Pic. 10: Distance between spindle and tonearm pivot point
Page / Seite 10
Magnify
tonearm without VTA-Lifter
tonearm with VTA-Lifter, please follow the separate user manual for the
Take the clamping ring and place it on the recess in the
tonearm base.
Now you can attach the clamping ring to the tonearm
base with the 3 supplied M4 x 10 screws.
Make sure that the side hole of the clamping ring
(see Pic. 9) remains accessible.
Insert the tonearm cable first and then the tonearm foot
Magnify
of the tonearm into the hole of the clamping
ring.
The tonearm remains loose in the clamping
ring and is not screwed tight.
