2.2 Mounting the tonearm base on a Clearaudio Innovation series turntable
If the tonearm base is already pre-assembled, it is in a position which is optimized for the packaging.
The position of the tonearm base will be correct during the adjustment of the tonearm.
Please check that the correct tonearm base is mounted on your turntable (Pic. 4).
Please note that you will need an different tonearm base, if you want to mount the
in combination with the VTA-Lifter (Pic. 5).
If not, remove the previous tonearm base by loosening the screw of the aluminium base with a 7mm
hex wrench.
Exchange the tonearm base against the correct one and place it as seen in picture 6.
Now you can loosely tighten it, so that the tonearm base is still rotatable.

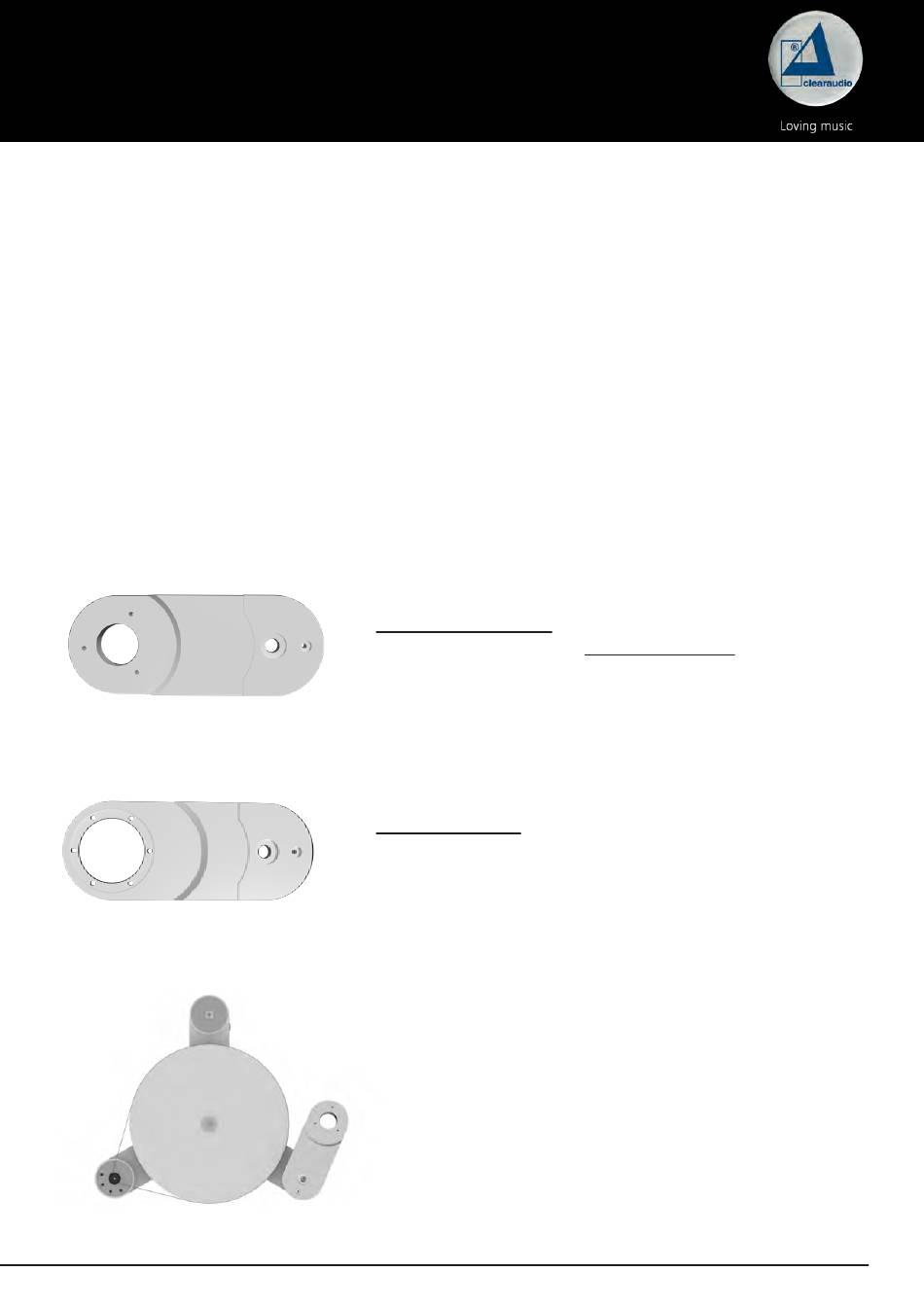

Pic. 4: Tonarme base for Innovation Serie
(Art. No. AC030-4)
Pic. 5: Tonarm base for Innovation Serie
(Art. No. AC030-10)
Pic. 6: Rough alignment of the tonearm base
Made in Germany
Without VTA-Lifter
To mount the tonearm without VTA-Lifter, you need the
tonearm base AC030-4 (Pic. 4).
With VTA-Lifter
To mount the tonearm in combination with VTA-Lifter, you
need the tonearm base AC030-10 (Pic. 5).
