5.2 Alignment of the tonearm

For the final tonearm and cartridge adjustment you will need the adjustment template, which is also
included in the scope of the delivery. Place it directly on the turntable (without record) and align it
so that the arrow points to the tonearm pivot point (Pic. 12).

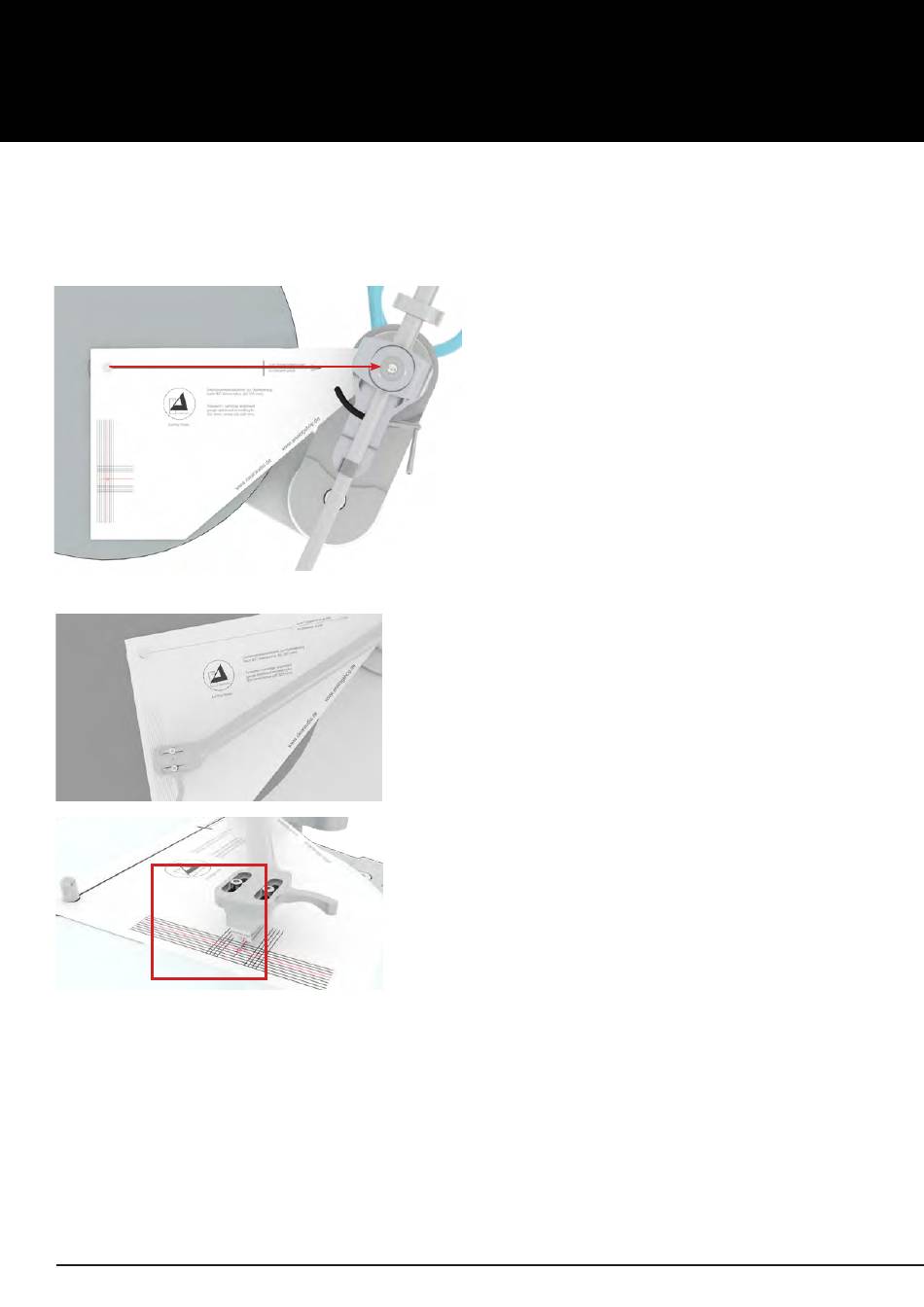

Pic. 12: Placing the adjustment template
Pic. 13: Alignment of the cartridge
Page / Seite 12
Take the tonearm out of the rest position and align it in
the area of the cross lines.
Lower the tonearm and check the alignment.
The cartridge body must be aligned in the template grid
so that the needle tip is in the cross lines.
Also the side and front edges of the housing have to be
parallel to the grid lines.
To correct the adjustment, you have to loosen the screws
of the cartridge a little so that the cartridge can be moved
in the headshell.
Re-check the setting again after you have tightened the
screws.
