EN
ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

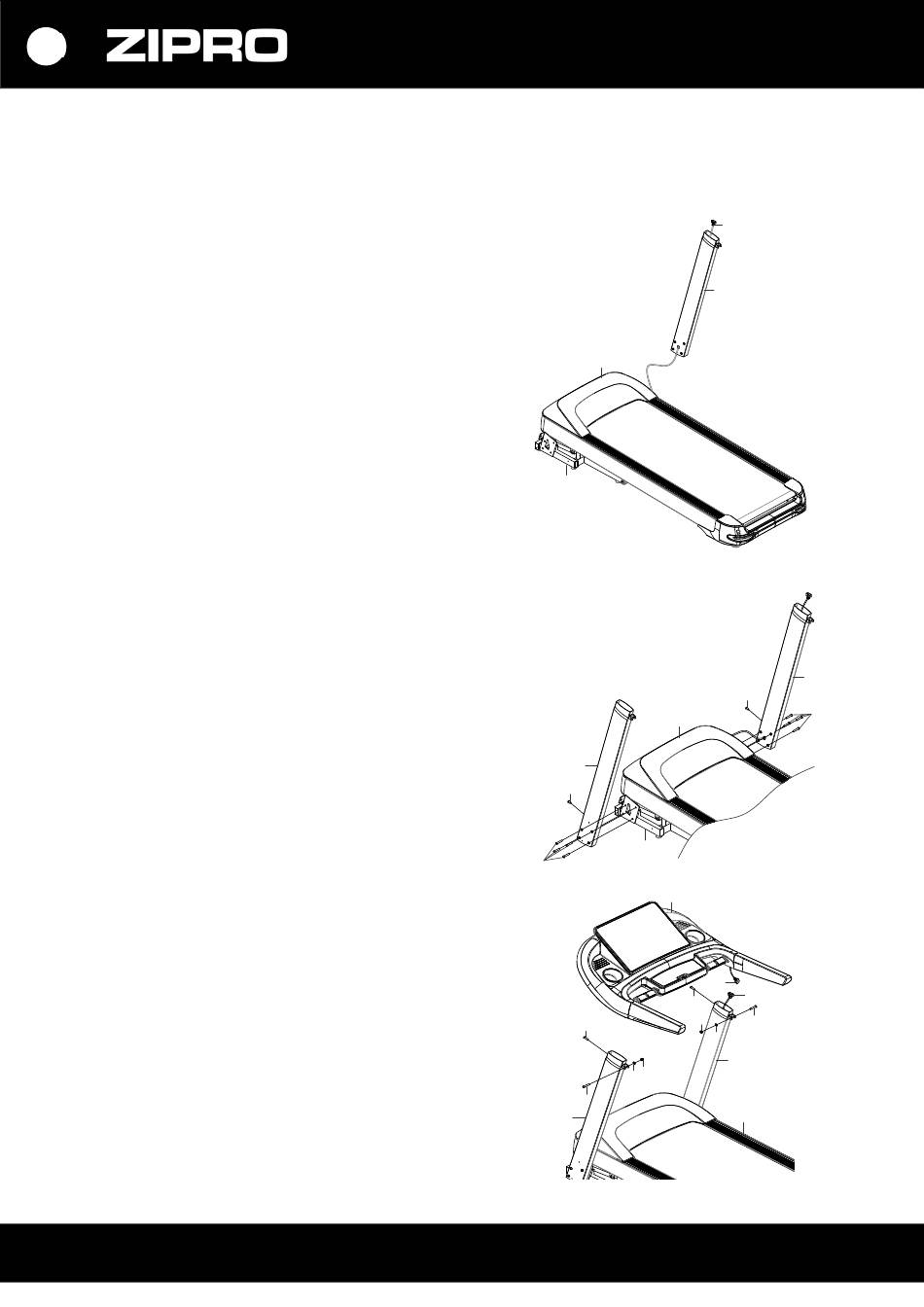

Step 1
Remove all components from the package.
Place the main frame (01) on a flat surface,
and secure the signal cable (74) to the right column
of the treadmill (05).
Step 2
Align bolt holes of the right treadmill column (4)
to the holes on the left side of the lower frame (3),
and secure them with bolts (51) and bolt (52)
as shown.
Secure the right treadmill column (5) to the lower frame (3)
using bolts (51) and (52) the same way.
Step 3
Secure the computer frame (35) with the left and
right treadmill column (04)(05) with bolts (56),
washers (60), nuts (58), and bolts (52)
as shown.
29
01
03
01
04
52
03
51
35
5 2
5 8
5 2
5 8
6 0
5 6
0 4
74
05
05
52
51
7 7
74
5 6
60
05
0 1
