ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the
product.
Prepare sufficient space for the assembly operation.

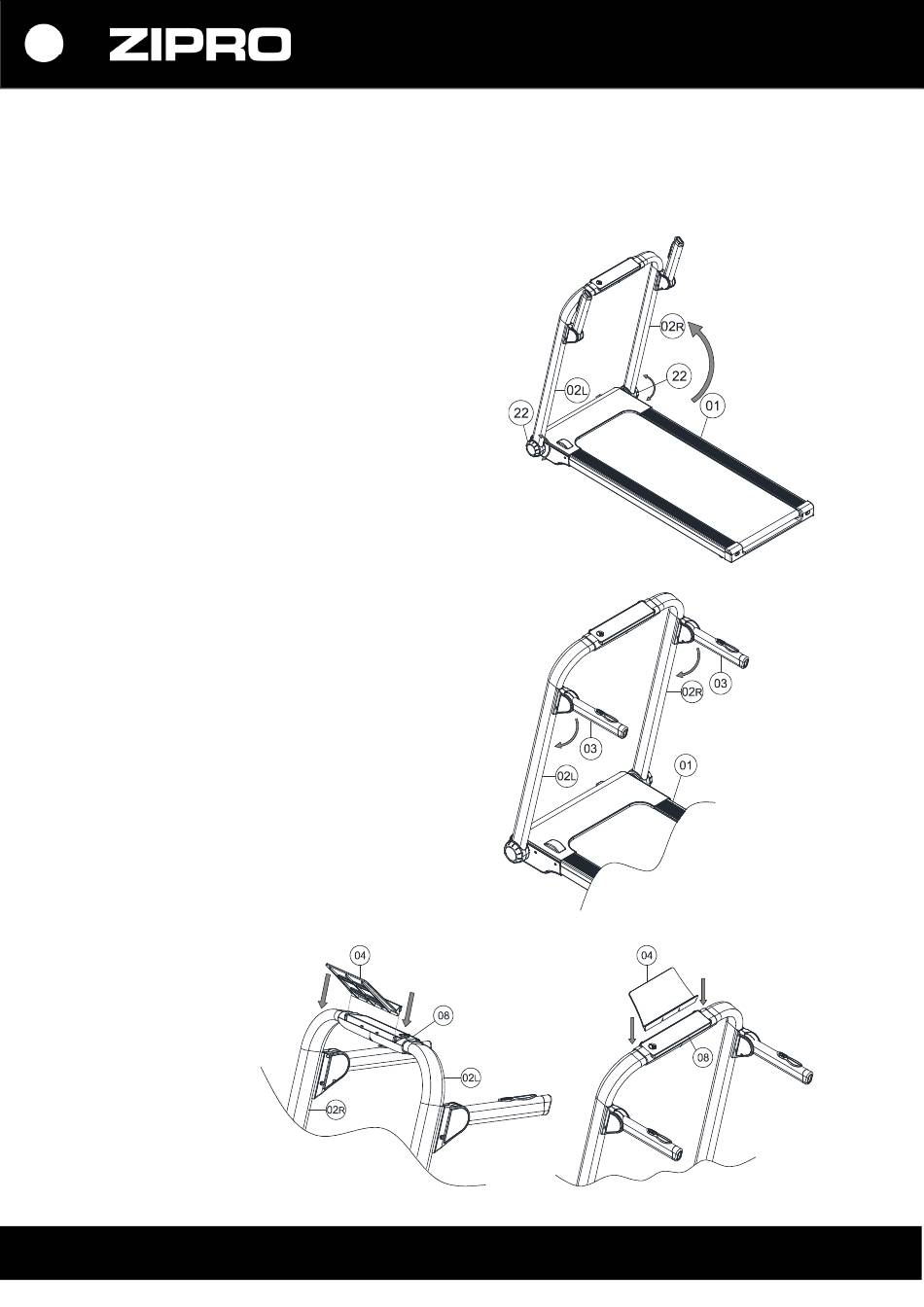

Step 1
Open the box, remove all the parts and place
them horizontally on the floor.
Remove the column folding knobs (22) by
turning them anti-clockwise, and then place
the columns upright (02L / 02R) as shown in
the figure. After the columns are vertical, turn
the column folding knobs (22) until you feel
resistance.
Step 2
Lower the handrails (03) to the horizontal position
as in the figure.
Step 3
Install the mobile
device stand (04)
in the upper
display cover (08)
as shown in the
figure:
25
