EAP (ELECTRO-ACUPUNCTURE) measurements

THE EAP-PROCEDURE IS AN OPTIONAL FEATURE TO BE USED BY WELL TRAINED SPECIALISTS
ONLY. THE SOFTWARE NEEDED TO OPERATE EAP REQUIRES A RELEASE CODE FROM THE
FACTORY OR A SALES POINT. A STYLUS SET WITH CABLE MUST BE PURCHASED (OPTION
"FTB211").
The EAP – Stylus is required to touch and measure the Conductivity Value (CV) at the acupuncture points of
the lymphatic system. The set of measurements is stored for reference in the active program position (one of
the 100 available).
Preparation:
Connect the EAP-cable to the sensor port of the F-SCAN3 NT on the left side of the device.
Connect the EAP – stylus to the blue lead of the EAP-cable.
Connect a handheld or foot electrode with the red lead of the EAP-cable.

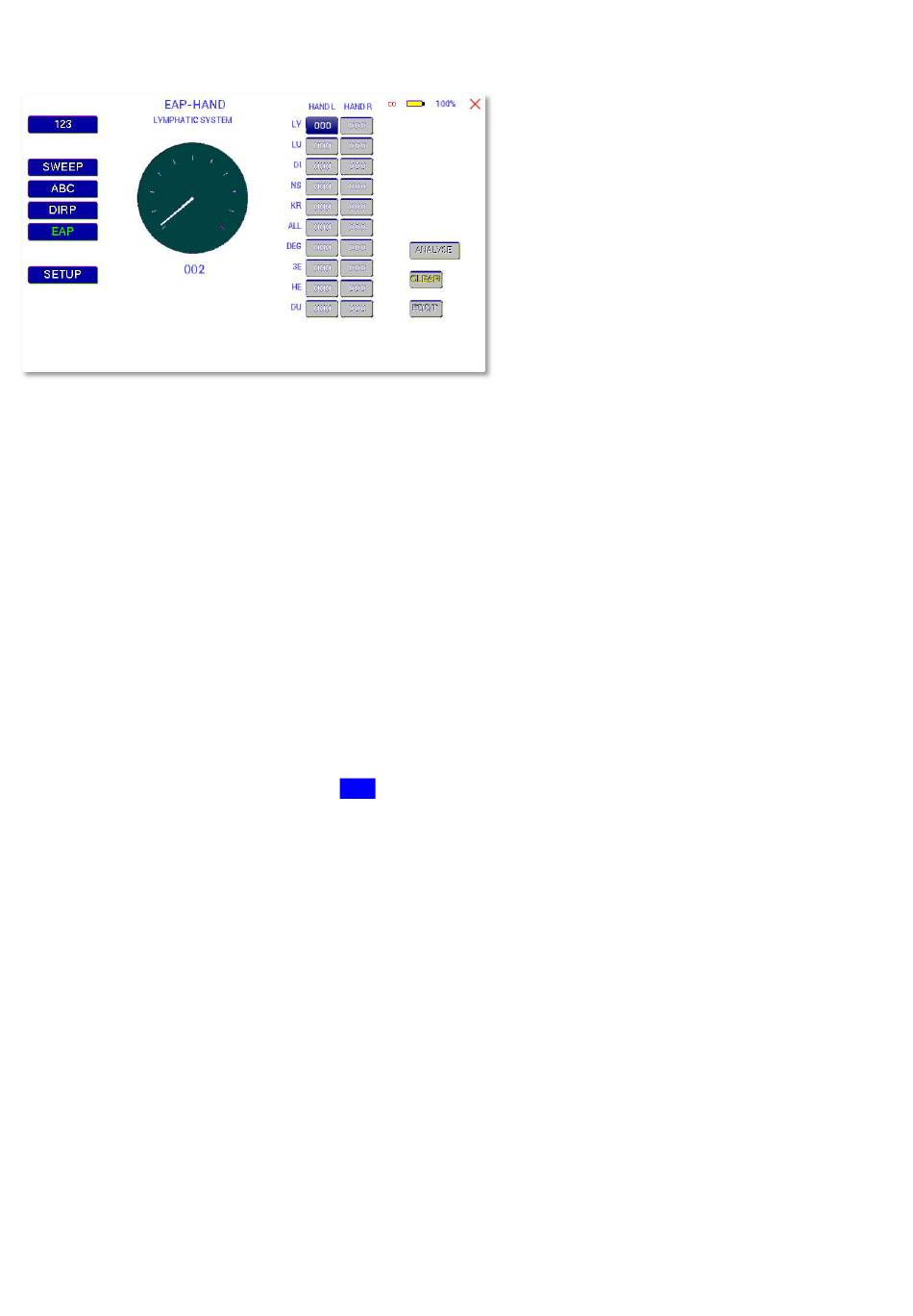

Start the F-SCAN3 NT, touch the button EAP.

EAP- functional test

Touch the tip of the EAP – stylus to the handheld or foot electrode to cause an electrical short. The measured
value must change to 99 accompanied by an audible signal, if this is activated. The value 99 will be stored in
the first line LY (lymph point) under the left hand. The cursor-selection moves to the second line LU (lung). The
value 99 must be touched to remove it and to set the cursor-selection back to line one awaiting a real measured
value.
