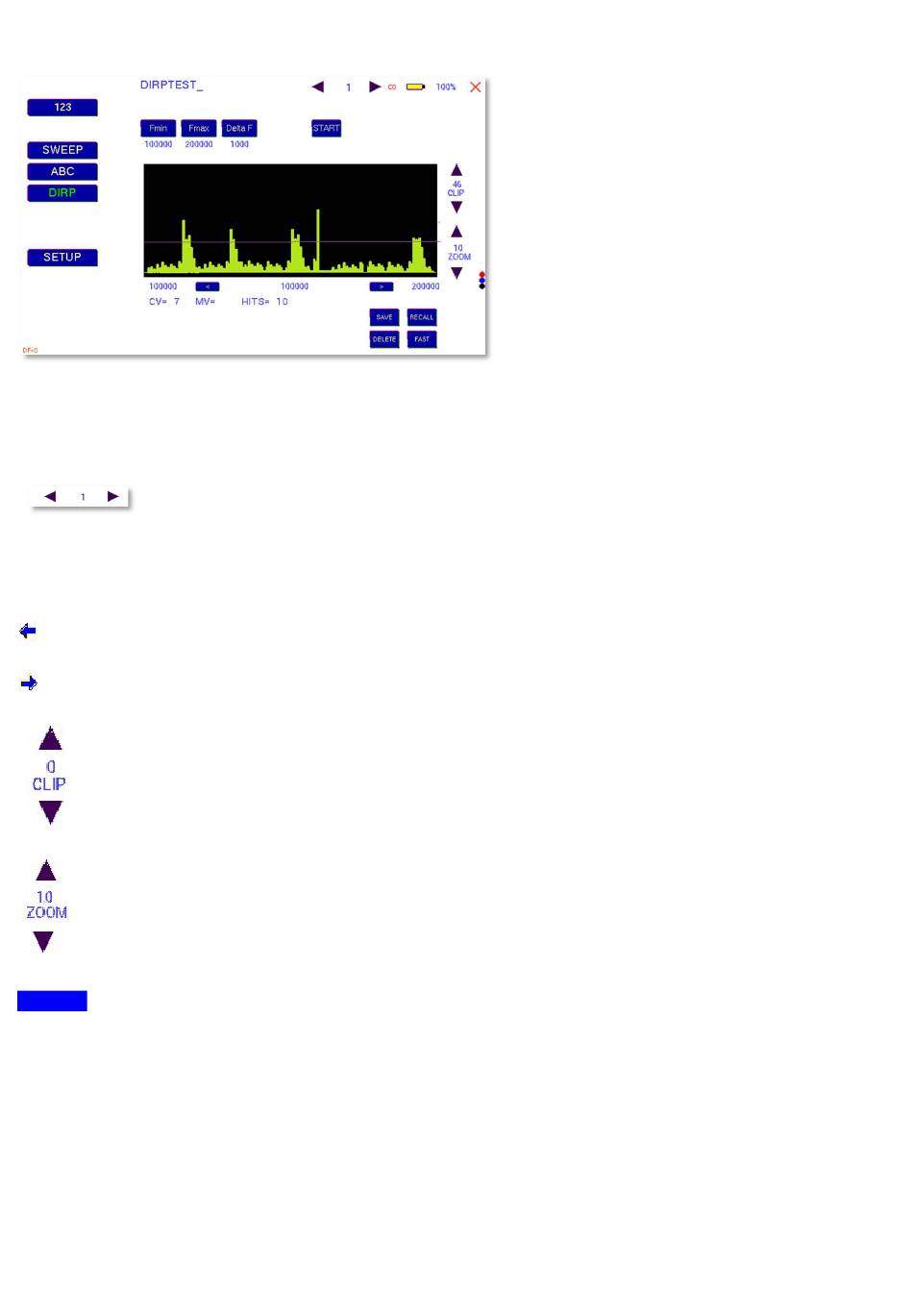

Example of a "DIRP" analysis recalled from memory
The display on the screen shows all details of the recalled analysis, including the settings for "Fmin", "Fmax",
"DELTA F" and the Clipping Level "CL = 46" (the violet line), where it separates 10 HITS (measured values of
resonances) from the remaining graph.
The DIRP results of a setting are being assigned to a temporarily memory. RECALL displays this
memory. SAVE assigns the temporarily memory to the actual selected memory slot.
Touch to move within the graph in the direction of Fmin to read the CV, MV and CL of individual
resonances.
Touch to move within the graph in the direction of Fmax to read the CV, MV and CL of individual
resonances.
Touch to move the violet line upward, thereby reducing the number of HITS (MVs) to deal with.
Touch to move the violet line downward, thereby increasing the number of HITS (MVs) to deal with.
Touch to zoom the graph in steps vertically from 0.0 to 2.0 to improve the reading. The Clipping
level will be recalculated to match the moves. Default setting of zoom is 1.0.
DELETE Clear graph.
You can use the arrows to load a program.
