WOBBLE
If WOBBLE is activated the software asks for a value to be used to swing the signal above and below the
target frequency. A value of 0 deactivates the feature. The background colour of the icon changes to green
when activated.

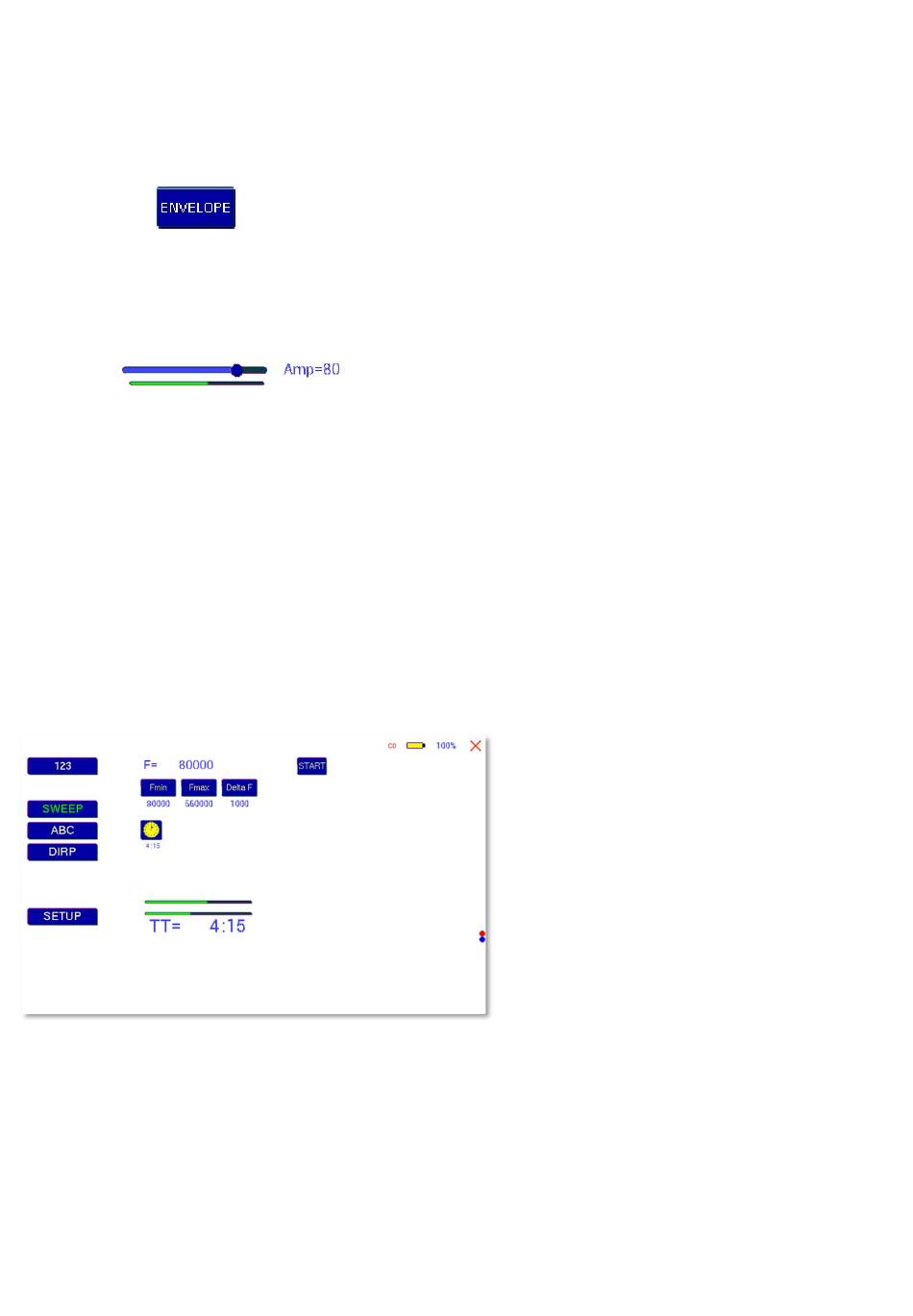

ENVELOPE
If ENVELOPE is activated, and the signal form is SQUARE, the amplitude will oscillate slowly between 0 and
the value assigned to the frequency.
The background colour of the icon changes to green when activated.
Amplitude
The amplitude (signal strength) of square can be manually adjusted with the slider. Right to the slider, the
amplitude is indicated in percent. So, AMP=100 means that 100% amplitude is selected for the selected
waveform.
Below the slider is a bar graph which indicates the real amplitude of the output signal. This bar graph is ideal
to check if the output delivers a signal. When in a running program the output amplitude is set to 100% but the
bar graph does not come up, there is a failure in the device or the connected cable/application part causes a
short.
The current feedback bar graph is orange for low values and green for normal values around 700uA. If the
value is too high (short or very high conductivity), the colour turns red
The amplitude value is global and valid for all programs of the "123" section.
.
