The menu DIRP

A touch on the button
"DIRP" stands for: Dual Integration Resonance Procedure
"DIRP" registers resonances to frequencies applied in steps of "DELTA F" within the limits between a lower
value "Fmin" and an upper value "Fmax".
SINE signals will be automatically assigned for the analysis.
The analysis is based on two readings:
1. MV = Measured Value of a resonance
2. CV = Conductivity Value
The Conductivity Value is a personal constant of the individual analyzed. It should read between 5% and 25%
as a base for useful results of the analysis. The Measured Values are shown as a green vertical bars or lines
in the graph.
After completing a "DIRP" run, the algorithm calculates the level of a horizontal line (violet) in the graph, called
the Clipping Level = CL. It separates as close as possible the 10 highest resonance peaks (HITS) of the graph
from the rest. If required, the CL line can be moved up or down manually.
Fmin
Fmax
Delta F
RECALL touch to recall a previously stored complete "DIRP" analysis from temporary memory.
SAVE touch to assign the previously made DIRP to the selected program.

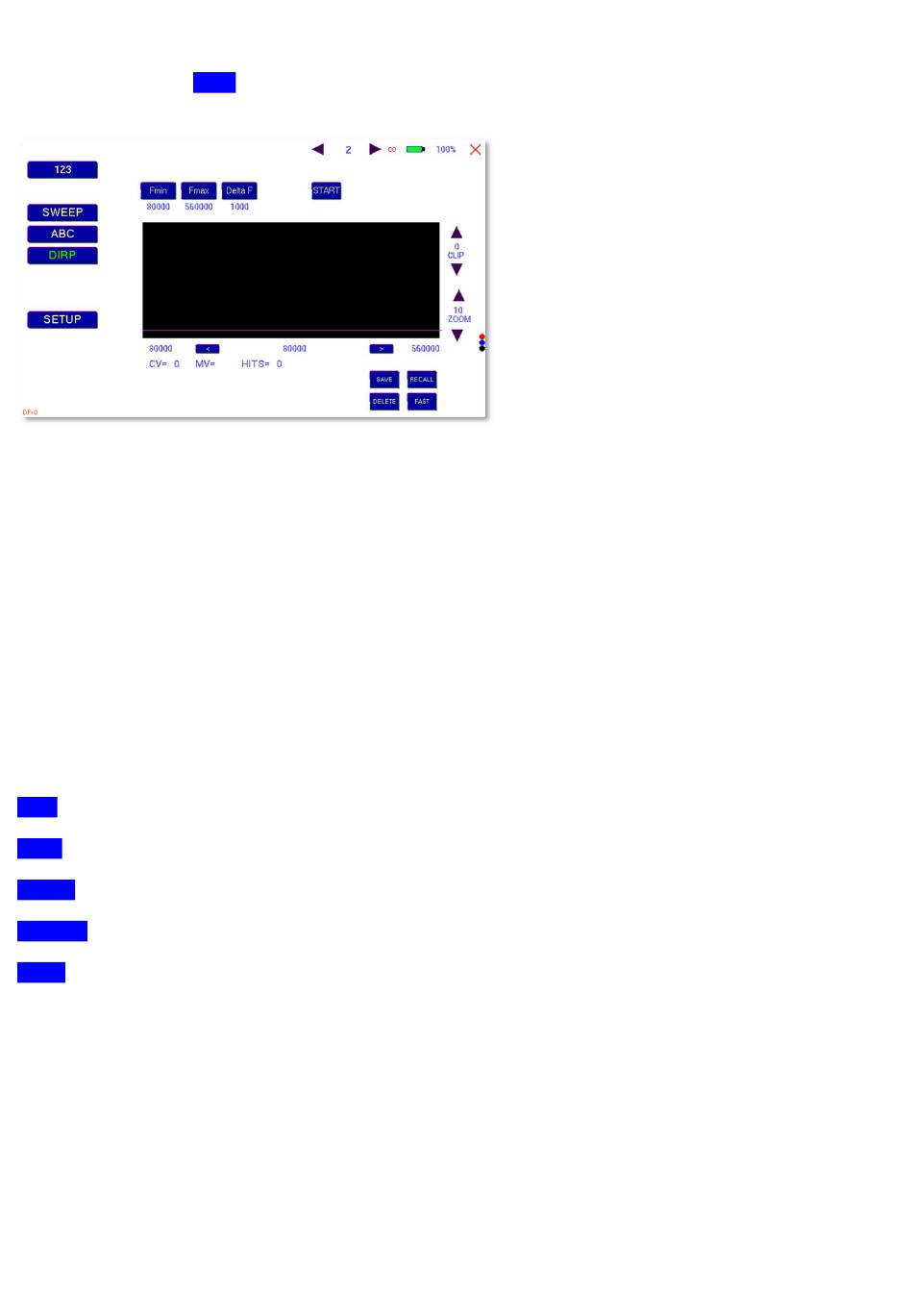

DIRP opens the screen for the automatic resonance analysis "DIRP".
touch to set "Fmin" (Range 50 Hz to 2 MHz)
touch to set "Fmax" (Range 50 Hz to 2 MHz)
touch to set "DELTA F" (range 1Hz to 10000 Hz)
