The menu 123

The menu "123" must be used to create and run individual programs with the ability to enter random
frequencies in the range from 0.01 Hertz up to 3 MHz (Megahertz).
The F-SCAN3 NT offers 100 storage positions for programs of between 1 and 50 frequencies. The end of
each program is a value of 0 Hertz (Hz).
Each program can be named individually.
A number of parameters can be assigned to each frequency value:
- Run time (TIME)
- Signal form (Auto, Sine, Square Half Wave, Square Full Wave, SMART and OFF)
- WOBBLE (Output swings around the target frequency)
- ENVELOP (Amplitude oscillates between 0Vpp and maximum)
- Amplitude (signal strength) of sine wave and square wave.

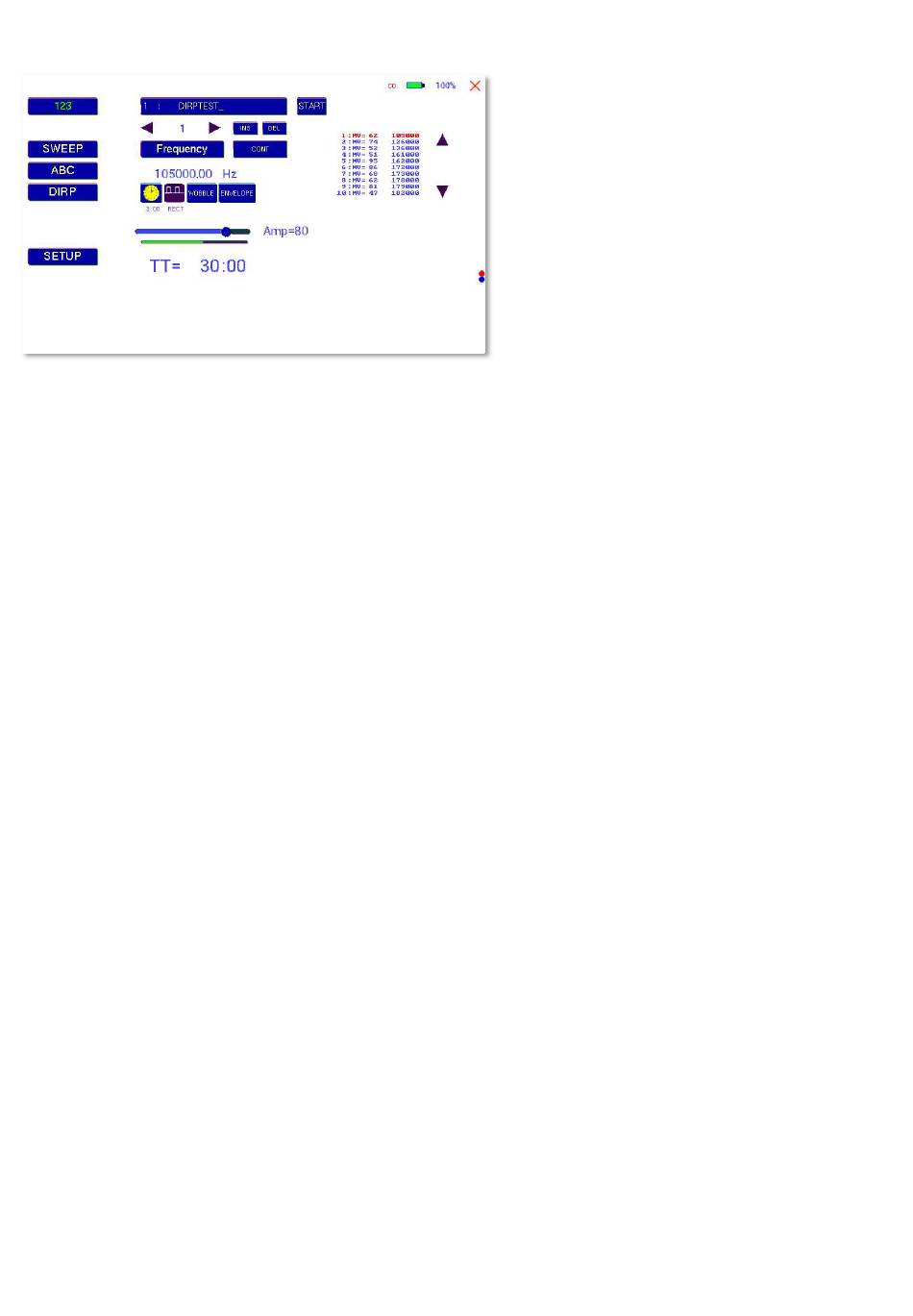

All frequencies are listed on the right-hand side on the display in groups of 10. If a frequency is a result of a
DIRP, the associated measured value (MV) is also indicated. The selected frequency is displayed in orange.
The vertical arrows can be used to show up to 5 blocks of memorized frequencies of a program.
