How to input a frequency value

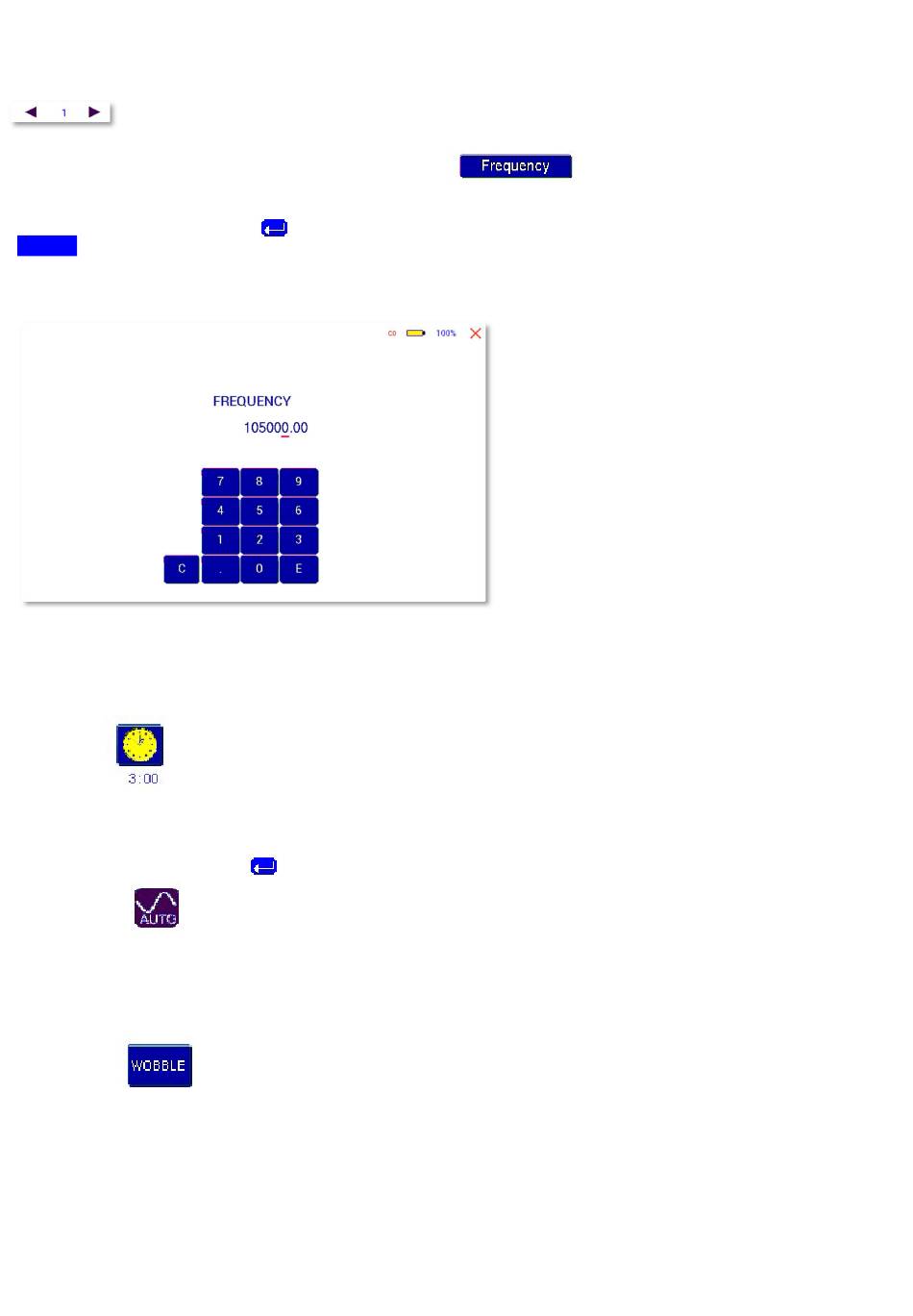

The arrows in the menu "123" are used to select the position (1 to 50) for the new frequency
value to be inserted in the opened program.
Next, the present frequency value has to be touched
A numerical key block opens and the new value can be entered.
A touch on the ENTER-key saves the input
CLEAR sets the entry to 0.
X = close numerical key block

The properties of frequencies

Runtime
The factory setting of the runtime per frequency is 3:00 minutes. It can be changed after a touch on the above
icon and the input of the minutes and seconds to be applied.
A touch on the ENTER-key saves the input.
Signal form
The signal form delivered to the "OUTPUT PORT" can be switched from AUTO to SINE, SQUARE HALF
WAVE (DC-OFFSET), SQUARE FULL WAVE, SMART or OFF with successive touches on this icon. The
setting AUTO delivers SQUARE HALF WAVE (DC-OFFSET) signals with frequency values below 65000 Hz
and SINE signals with values above 65000 Hz. The actually delivered wave form is indicated in the icon.
- 13 -
