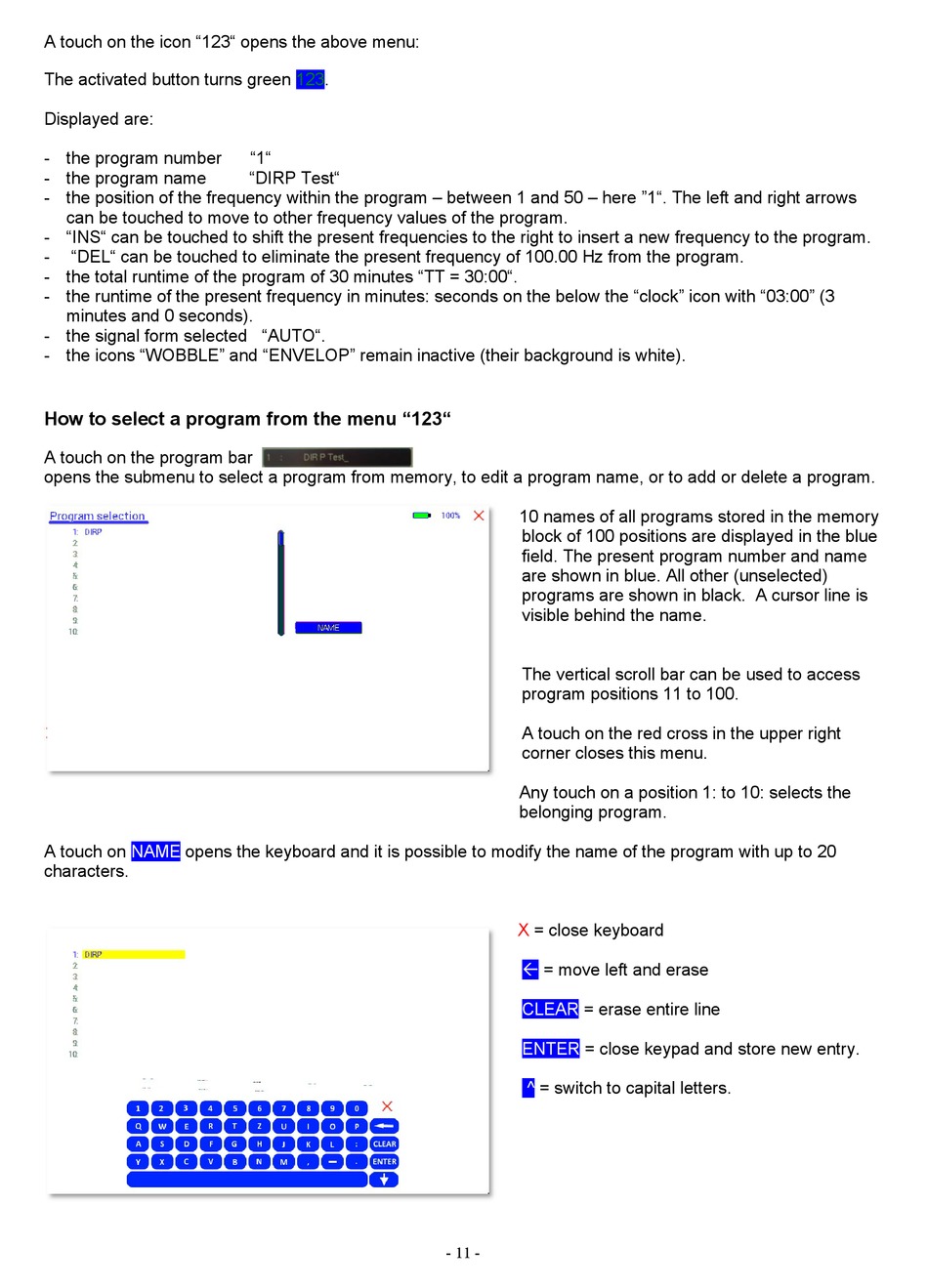

How To Select A Program From The Menu "123 - TB-ELECTRONICS F-SCAN3 NT Bedienungsanleitung

A touch on the icon "123" opens the above menu:
The activated button turns green 123.
Displayed are:
- the program number
- the program name
- the position of the frequency within the program – between 1 and 50 – here "1". The left and right arrows
can be touched to move to other frequency values of the program.
- "INS" can be touched to shift the present frequencies to the right to insert a new frequency to the program.
- "DEL" can be touched to eliminate the present frequency of 100.00 Hz from the program.
- the total runtime of the program of 30 minutes "TT = 30:00".
- the runtime of the present frequency in minutes: seconds on the below the "clock" icon with "03:00" (3
minutes and 0 seconds).
- the signal form selected "AUTO".
- the icons "WOBBLE" and "ENVELOP" remain inactive (their background is white).

How to select a program from the menu "123"

A touch on the program bar
opens the submenu to select a program from memory, to edit a program name, or to add or delete a program.
A touch on NAME opens the keyboard and it is possible to modify the name of the program with up to 20
characters.
"1"
"DIRP Test"
10 names of all programs stored in the memory
block of 100 positions are displayed in the blue
field. The present program number and name
are shown in blue. All other (unselected)
programs are shown in black. A cursor line is
visible behind the name.
The vertical scroll bar can be used to access
program positions 11 to 100.
A touch on the red cross in the upper right
corner closes this menu.
Any touch on a position 1: to 10: selects the
belonging program.
X = close keyboard
= move left and erase

CLEAR = erase entire line
ENTER = close keypad and store new entry.
^ = switch to capital letters.
- 11 -
