13
Ø3 hair
cotter pin
Ø9,5x25
clevis pin
Hopper bag
bottom
8.

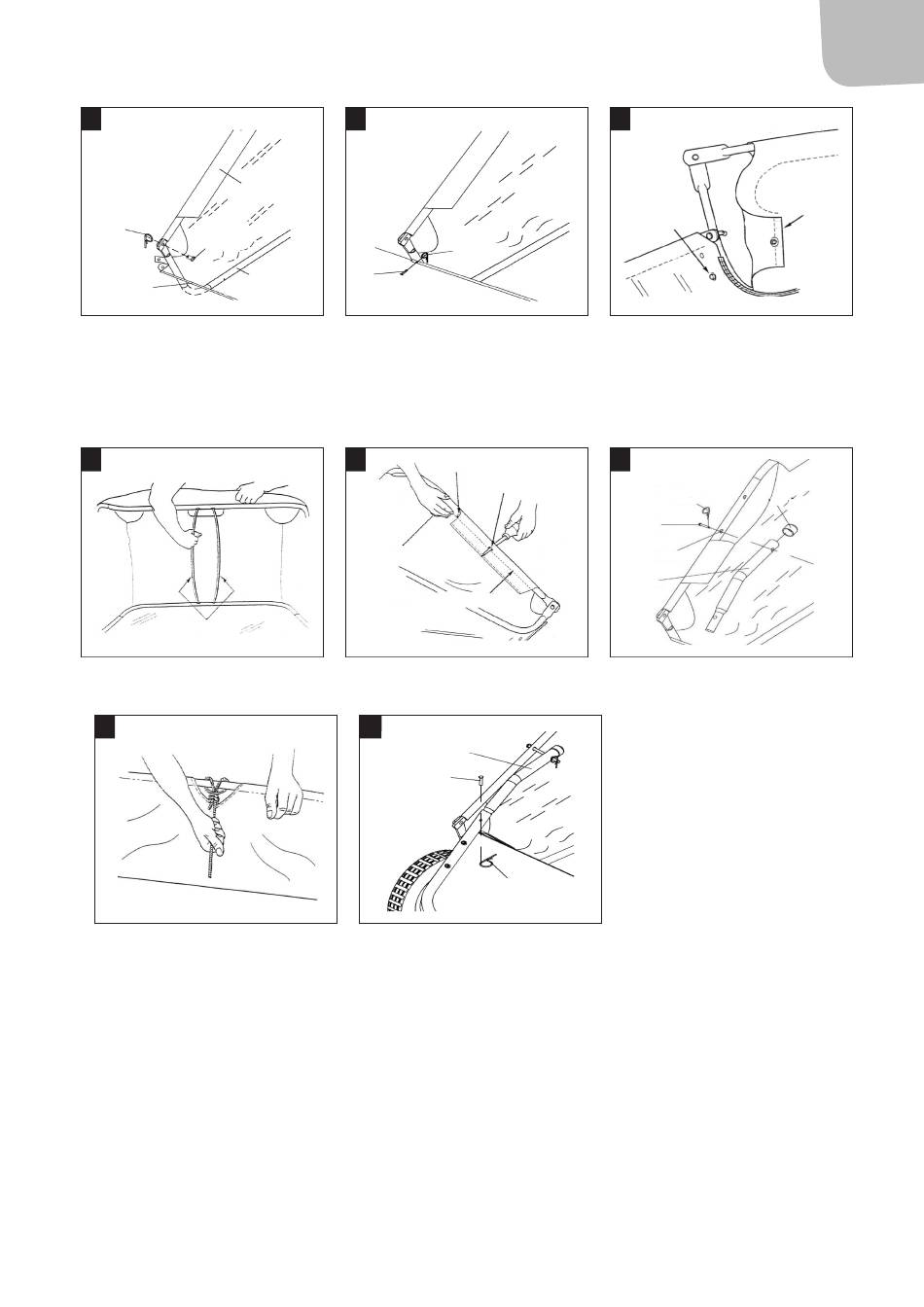

Place the bag on its back on the floor. Position the two support rods in the lower and upper tubes (fig. 16). Do not bend the rods too
much, as this may cause them to loose supporting tension.
9.
Feel along the upper side tube to locate the lower hole. Make a hole in the bag in line with the lower hole (fig. 17). Insert a lock pin
through the hole and attach the bag holder on this (fig. 18). Now place a plastic cap on the end of the bag holder. Repeat on the other
side.
16
Support rod
19
10.
Secure the rope to the middle of the upper rear tube (fig. 19).
11.
Fit the hopper bag on the chassis (fig. 20).
14
Upper hopper
side tube
Bag frame
strap
Lower hopper
Ø6x37
side tube
clevis pin
17
Upper hopper side tube
20
Ø6x37
clevis pin
Ø2 sprint
Upper hole
Lower hole
Bag arm
tube
Bag arm
Ø2 hair
tube
cutter pin
15
Snap
18
Ø3 hair cotter pin
Ø8x59,6
clevis pin
Lower
hole
Bag arm
tube
EN
Flap
Vinyl cap
29
