Storch Power HD Krake Bedienungsanleitung Seite 68

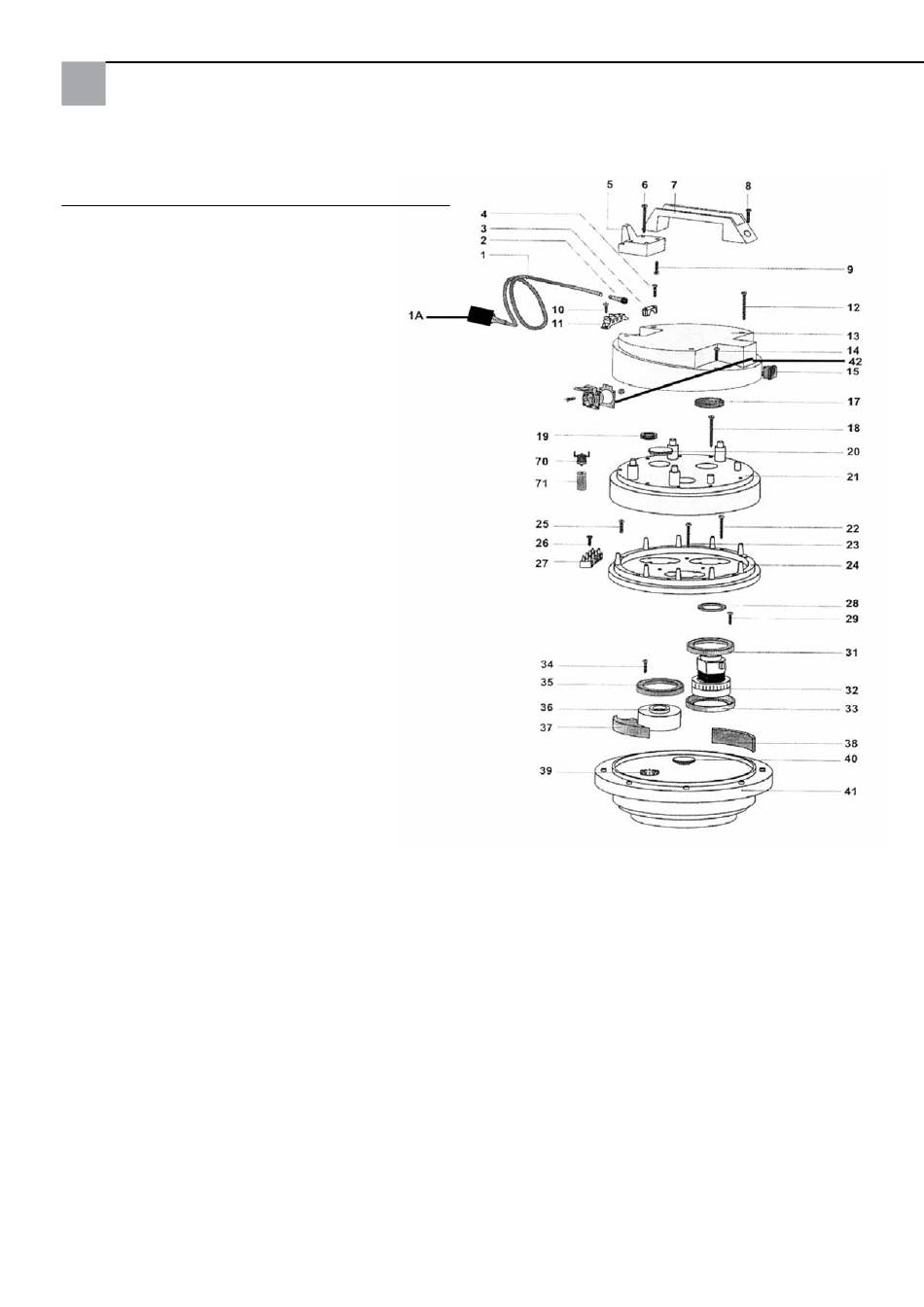

Suction head:
Pos. Designation
1 Power cable 2 x 1.5, with plug
1a Personal protection plug IP 44
2 Cable guide for suction head
3 Cable clamp for suction head
4 Phillips screw M 5 x 20
5 Cable holder for suction head HDK
6 Screw 5.2 x 50
7 Handle for suction head HDK
8 Phillips screw M 5 x 35
9 Phillips screw M 5 x 20
10 Phillips screw M 5 x 14,
11 Connecting terminal
12 Screw 5.2 x 50
13 Housing cover for suction head
14 Phillips screw M 5 x 20
15 On / Off switch for suction head
17 Filter for suction head HDK
18 Screw 5.2 x 50
19 Cable protector
20 Blanking plug
21 Motor cover for suction head
22 Tapping screw 3 x 40
23 Tapping screw 3 x 40
24 Seating ring for suction head
25 Phillips screw M 5 x 30
26 Tapping screw 4.3 x 19
27 Connecting terminal, 4-pin
28 Sealing ring
29 Phillips screw M 5 x 20
31 Motor seal for suction head
32 Motor for HDK
33 Motor seal for suction head
34 Phillips screw M 5 x 20
35 Motor seal for suction head
36 Spacer
37 Sealing piece for suction head
38 Filter 65 x 10, L = 120
39 Coupling disc
40 Cover cap
41 Motor mounting plate
42 Safety socket for suction head
70 Thermo switch for HDK
71 Retainer for thermal contact
Translation of the original instruction
Art. no.
65 80 31
60 02 47
65 80 33
65 80 34
65 80 35
Special order
Special order
Special order
Special order
Special order
Special order
Special order
Special order
Special order
Special order
65 80 44
Special order
Special order
Special order
Special order
65 80 49
Special order
Special order
Special order
Special order
Special order
Special order
Special order
Special order
65 80 57
65 80 03
65 80 57
Special order
65 80 57
Special order
Special order
65 80 63
Special order
Special order
65 80 66
65 80 67
Special order
Special order
68
