Detailed Drawings - Storch Power HD Krake Bedienungsanleitung

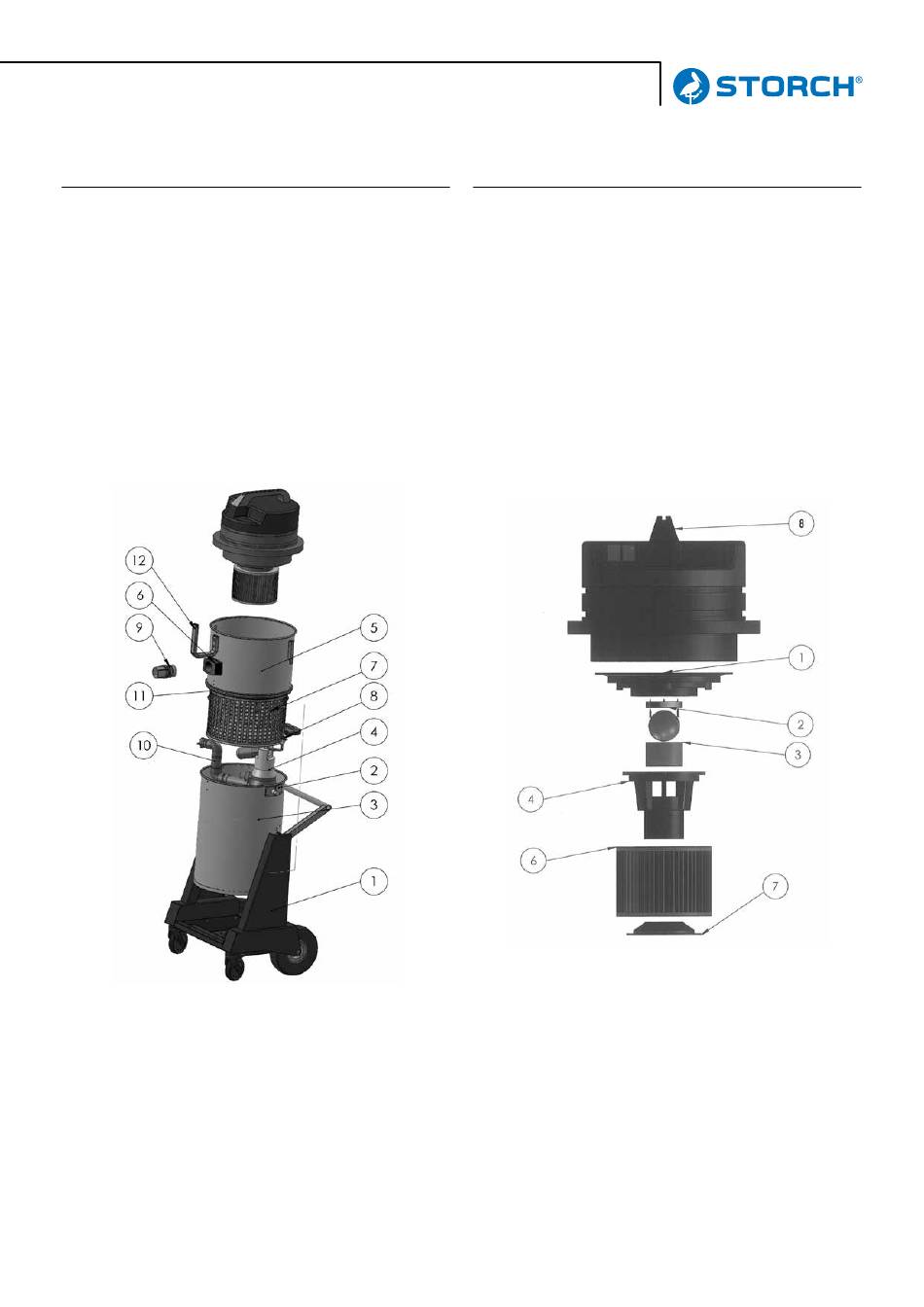

Power HD Krake complete:
Pos. Designation
1 Wheel assembly complete
2 Tilting mechanism
3 Lower barrel complete (without pump)
4 Immersion pump
5 Barrel top section complete
6 Barrel coupling complete, incl. inlet socket 65 80 13
7 Filter supporting cage
8 Cable gland complete
9 Hose coupler
10 Coupler with non-return valve
11 Seal for supporting cage
12 Suction hose holder
Suction head:
Art. no. Pos. Designation
1 Motor mounting plate
Special order
2 Seal for cut-off ball
Special order
3 Filter screen
Special order
65 77 17 4 Float chamber
5 Cut-off ball
Special order
6 Folded filter C
65 80 12 7 Retainer for filter cartridge
65 80 17 8 Suction head 2,400 W, blue, complete
65 80 18
65 80 14
65 77 20
Special order
67
Art. no.
65 80 66
Special order
65 80 73
65 80 72
65 80 21
65 77 25
65 80 75
65 80 20
Translation of the original instruction
