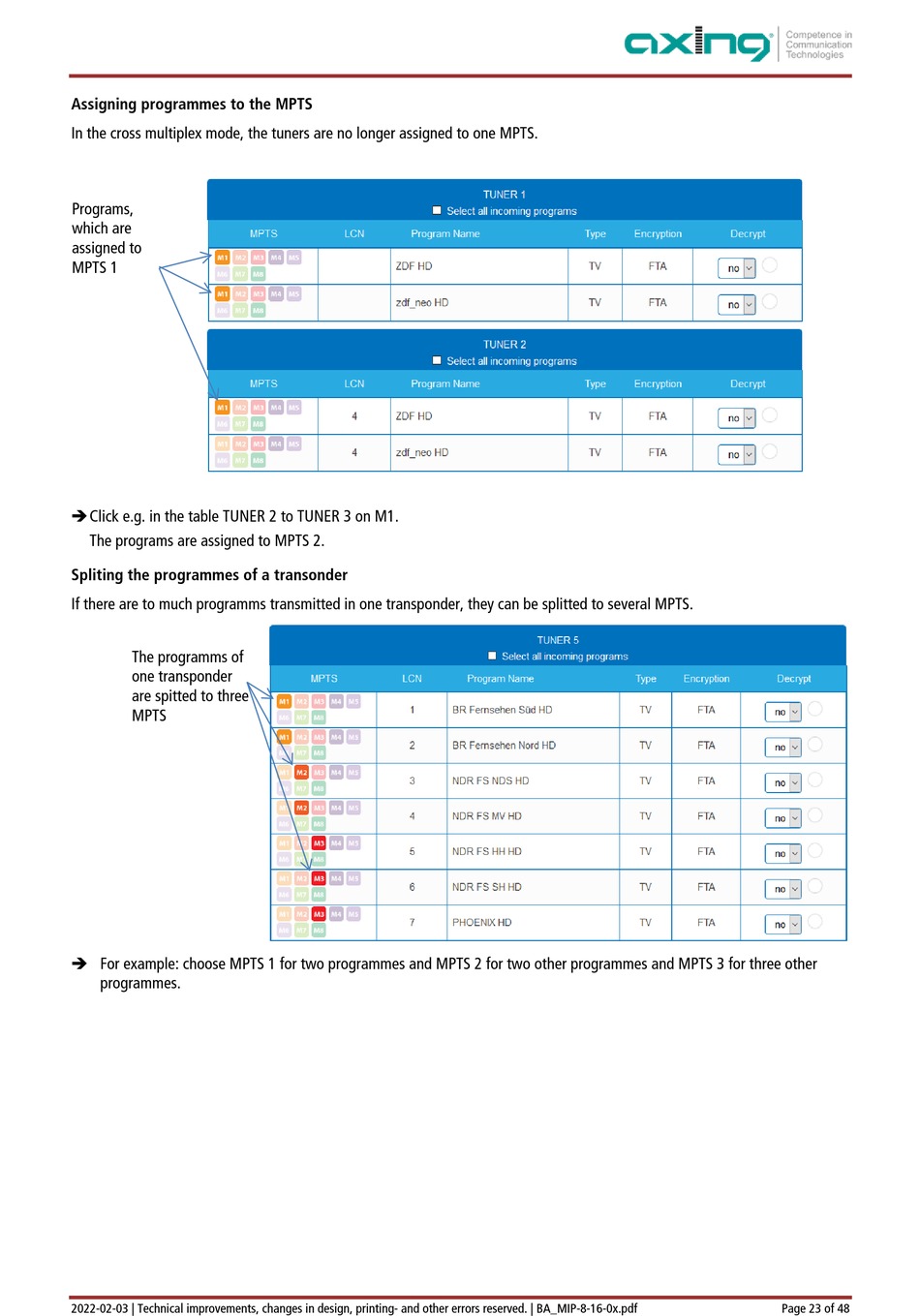

Assigning programmes to the MPTS
In the cross multiplex mode, the tuners are no longer assigned to one MPTS.
Programs,
which are
assigned to
MPTS 1
 Click e.g. in the table TUNER 2 to TUNER 3 on M1.
The programs are assigned to MPTS 2.
Spliting the programmes of a transonder
If there are to much programms transmitted in one transponder, they can be splitted to several MPTS.
The programms of
one transponder
are spitted to three
MPTS
 For example: choose MPTS 1 for two programmes and MPTS 2 for two other programmes and MPTS 3 for three other
programmes.
