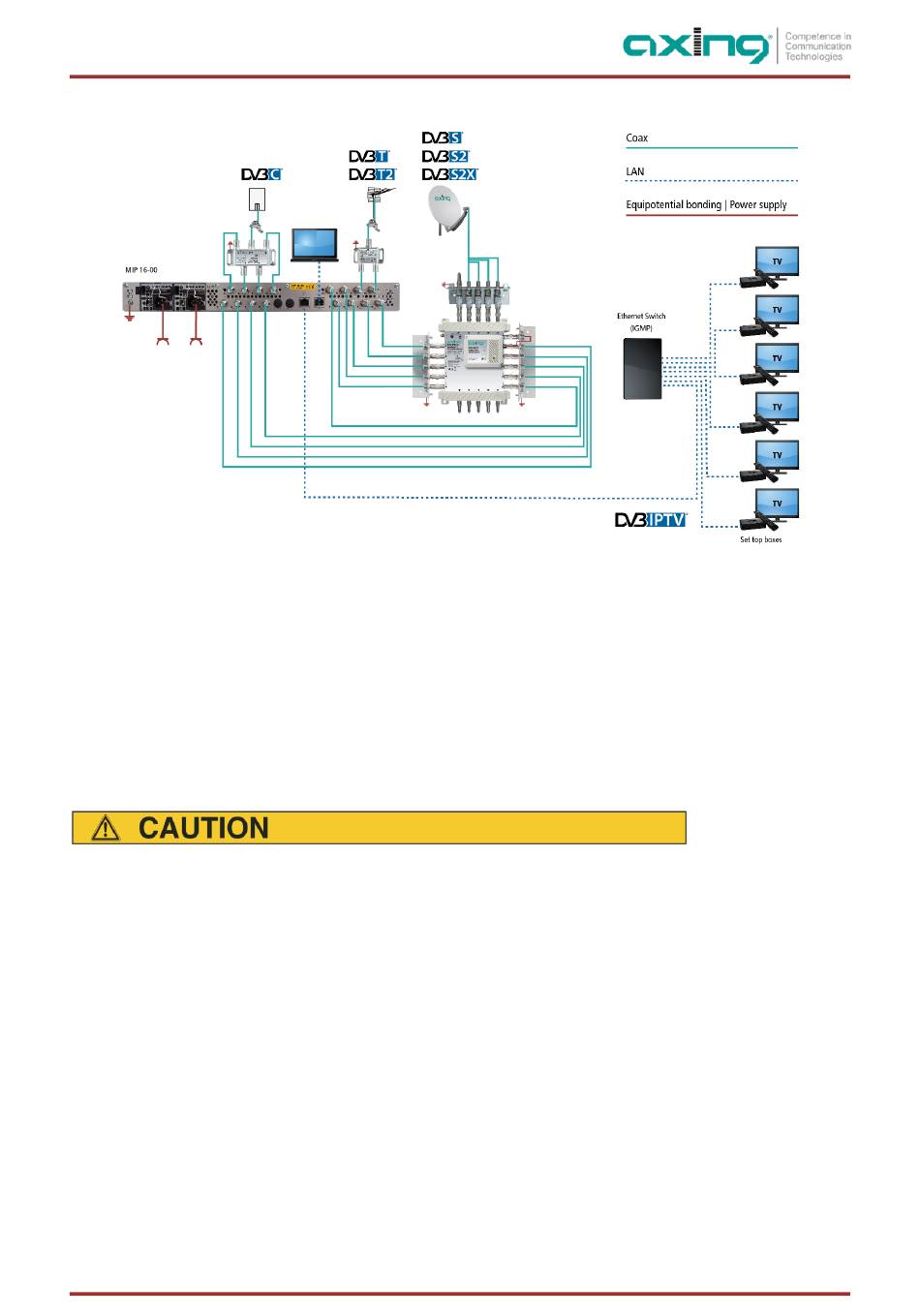

RF Installation

2.4.1.

Connection to DVB-S/S2/S2x

Connection to the LNBs
On the SAT-IF input the devices have a remote supply voltage for the LNB and use DiSEqC 1.0 functionalities. Therefore, they
can be connected directly to the LNB.
Multiswitches as input distributors
Optionally, you can also use multiswitches as input distributors. The advantage of this solution is that you can set both the SAT
IF level and the satellite via the user interface. Changes in the list of programmmes can be made using remote maintenance, so
that it is not necessary to change or modify the input distribution on site.
2.4.2.

Connection to DVB-T/T2 or DVB-C

Before connecting the antenna cabel, the LNB power has to be switched off (see 4.1.2 on page 16). Active DVB-T
antennas have to be supplied by an external power supply.
