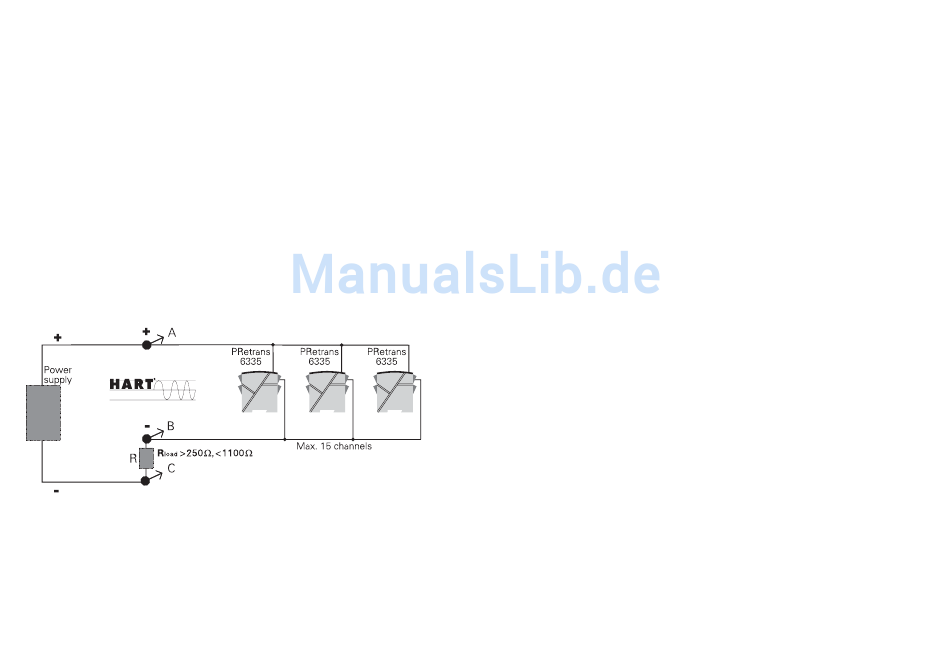

Connection of transmitters in multidrop mode:

®
• The HART communicator or a PC modem can be connected accross AB or
BC.
• The outputs of max. 15 transmitters can be conected in parallel for a digital
®
HART communication on 2-wires.
• Before it is connected, each transmitter must be configured with a unique
number from 1 to 15. If 2 transmitters are configured with the same number,
both will be excluded. The transmitters must be programmed for multidrop
mode (with a fixed output signal of 4 mA). Maximum current in the loop is
therefore 60 mA.
• The communication is either by means of a HART
®
HART modem.
• The PReset PC configuration software can configure the individual transmitter
for multidrop mode and provide it with a unique polling address.
32
®
communicator or a
TRANSMETTEUR 2-FILS
AVEC PROTOCOLE HART
PRetrans 6335
Sommaire
Consigne de sécurité ......................................................... 34
Déclaration de conformité CE ............................................ 35
Application ......................................................................... 36
Caractéristiques techniques .............................................. 36
Montage / installation ......................................................... 36
Applications ........................................................................ 37
Référence ........................................................................... 38
Spécifications électriques .................................................. 38
Connexions ........................................................................ 42
Schéma de principe ........................................................... 44
Programmation ................................................................... 45
Loop Link ...................................................................... 45
®
Modem HART ............................................................. 46
®
Communicateur HART
Raccordement des transmetteurs en multi-adressage ...... 48

Appendix:

FM Installation Drawing No. 6335QF01 ............................. 66
CSA Installation Drawing No. 6335QC02 .......................... 68
®
................................................ 47
