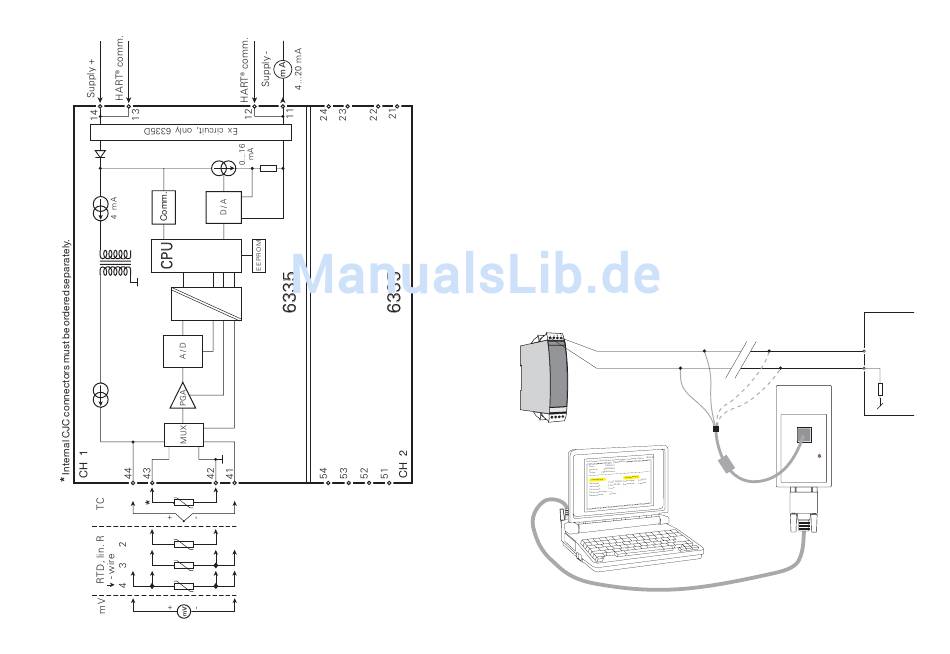

BLOCK DIAGRAM:

28

Programming:

PRetrans 6335 can be configured in the following 3 ways:

1. With PR electronics A/S' communications interface Loop Link and PReset PC
configuration software.
®
2. With a HART modem and PReset PC configuration software.
®
3. With a HART communicator with PR electronics A/S' DDL driver.

1: Loop Link:

For programming please refer to the drawing below and the help functions in
PReset.
When communicating with non-installed modules, connectors 11, 12, 13, 14
(channel 1) and 21, 22, 23, 24 (channel 2) can be dismantled in the safe area
to connect the terminals of the communications interface to the pins.
Loop Link is not approved for communication with modules installed in
hazardous (Ex) area.
Order: Loop Link
1 2
14 (24)
11 (21)
5 1
4 3 4 4
4 1 4 2
PRetrans 6335
Disconnect
Yellow
Red
*
Green
Black *
Connector
COM
Loop Link
* Connected only for
on-line programming
Receiving
equipment
+Vsupply
Input
