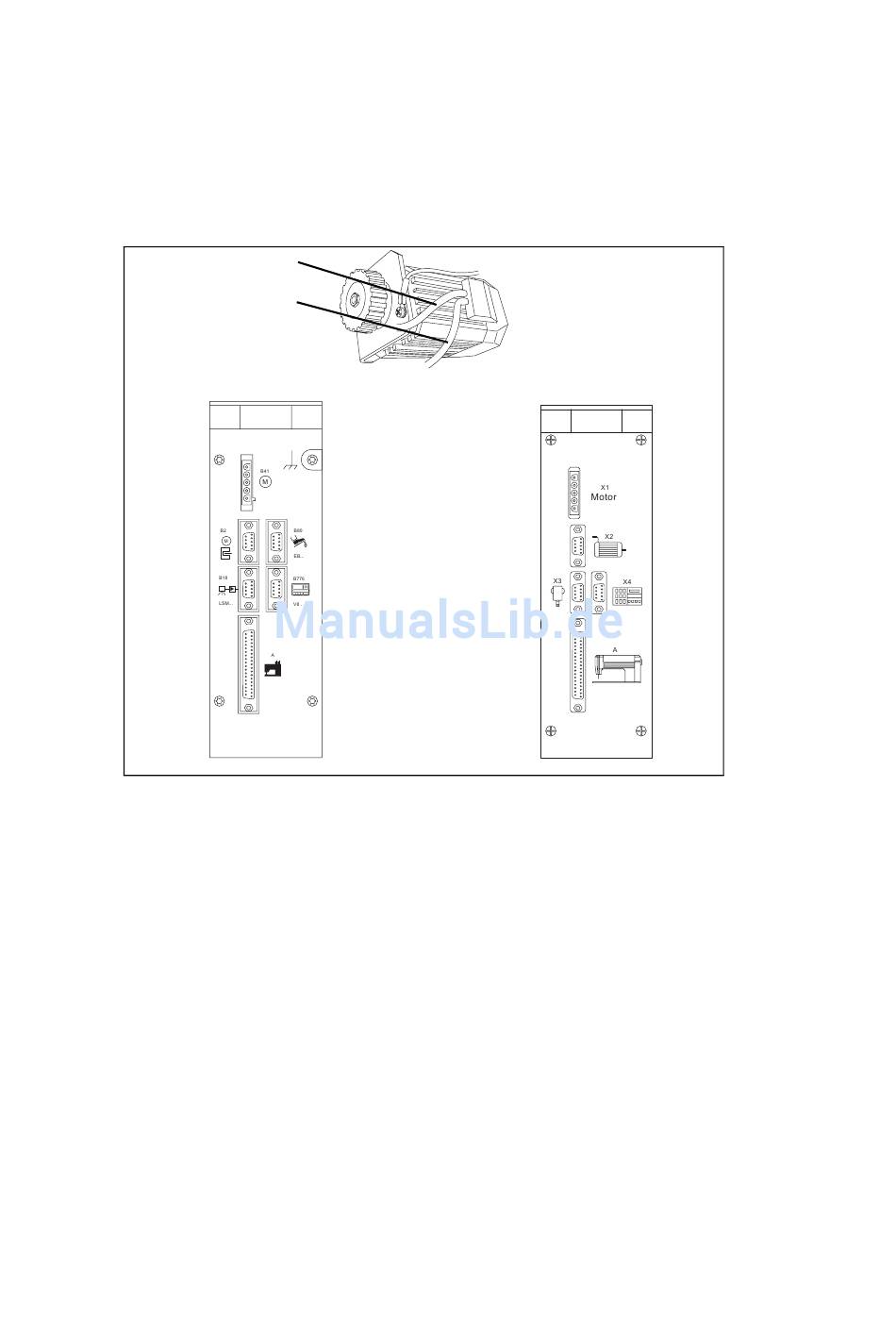

6.4 Connection Sockets on the DA220C and DA40MS02 Controls

1
2

6.5 Connecting the DA220C Controls

–
Insert the lead from the controller (pedal) into socket B80 of the controls.
–
Insert the lead from the motor sensor 2 into socket B2 of the controls.
–
Insert the lead 1 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.

6.6 Connecting the DA40MS02 Controls

–
Insert the lead from the controller (pedal) into socket X3 of the controls.
–
Insert the lead from the motor sensor 2 into socket X2 of the controls.
–
Insert the lead 1 from the motor into socket X1 of the controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket X4.
