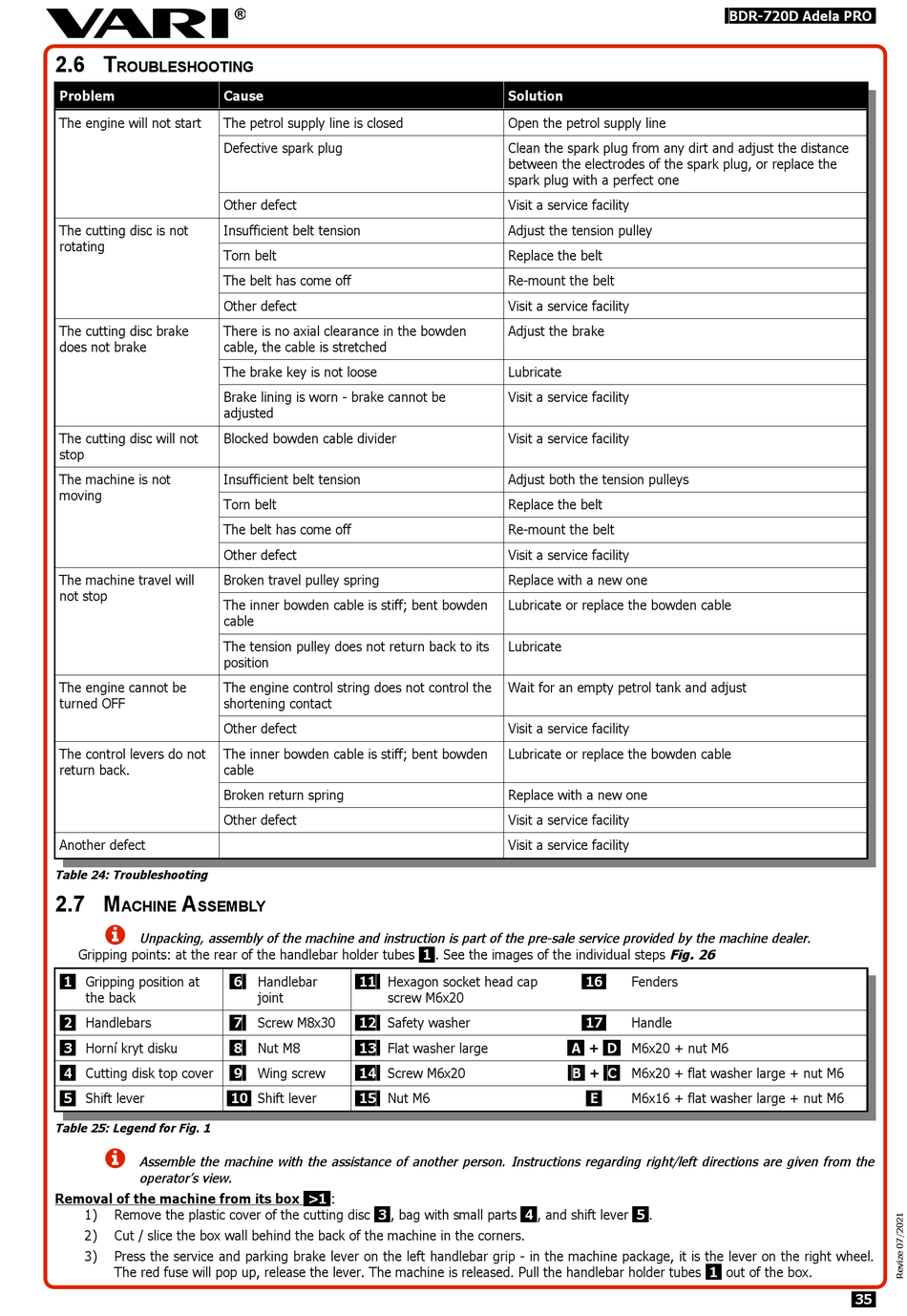

2.6 T
ROUBLESHOOTING
Problem Cause
The engine will not start The petrol supply line is closed
Defective spark plug
Other defect
The cutting disc is not Insufficient belt tension
rotating
Torn belt
The belt has come off
Other defect
The cutting disc brake There is no axial clearance in the bowden
does not brake cable, the cable is stretched
The brake key is not loose
Brake lining is worn - brake cannot be
adjusted
The cutting disc will not Blocked bowden cable divider
stop
The machine is not Insufficient belt tension
moving
Torn belt
The belt has come off
Other defect
The machine travel will Broken travel pulley spring
not stop
The inner bowden cable is stiff; bent bowden
cable
The tension pulley does not return back to its
position
The engine cannot be The engine control string does not control the
turned OFF shortening contact
Other defect
The control levers do not The inner bowden cable is stiff; bent bowden
return back. cable
Broken return spring
Other defect
Another defect
Table 24: Troubleshooting
2.7 M A
ACHINE SSEMBLY

Unpacking, assembly of the machine and instruction is part of the pre-sale service provided by the machine dealer.
Gripping points: at the rear of the handlebar holder tubes
1 Gripping position at
the back
2 Handlebars
3 Horní kryt disku
4 Cutting disk top cover
5 Shift lever
Table 25: Legend for Fig. 1

Assemble the machine with the assistance of another person. Instructions regarding right/left directions are given from the
operator's view.
Removal of the machine from its box
1) Remove the plastic cover of the cutting disc
2) Cut / slice the box wall behind the back of the machine in the corners.
3) Press the service and parking brake lever on the left handlebar grip - in the machine package, it is the lever on the right wheel.
The red fuse will pop up, release the lever. The machine is released. Pull the handlebar holder tubes
6 Handlebar 11 Hexagon socket head cap
joint screw M6x20
7 Screw M8x30 12 Safety washer
8 Nut M8 13 Flat washer large
9 Wing screw 14 Screw M6x20
10 Shift lever 15 Nut M6
>1 :
3 , bag with small parts
Solution
Open the petrol supply line
Clean the spark plug from any dirt and adjust the distance
between the electrodes of the spark plug, or replace the
spark plug with a perfect one
Visit a service facility
Adjust the tension pulley
Replace the belt
Re-mount the belt
Visit a service facility
Adjust the brake
Lubricate
Visit a service facility
Visit a service facility
Adjust both the tension pulleys
Replace the belt
Re-mount the belt
Visit a service facility
Replace with a new one
Lubricate or replace the bowden cable
Lubricate
Wait for an empty petrol tank and adjust
Visit a service facility
Lubricate or replace the bowden cable
Replace with a new one
Visit a service facility
Visit a service facility
. See the images of the individual steps Fig. 26
1
16
17
A +
B +
E
4 , and shift lever
BDR-720D Adela PRO
Fenders
Handle
D M6x20 + nut M6
C M6x20 + flat washer large + nut M6
M6x16 + flat washer large + nut M6
5 .
1 out of the box.
