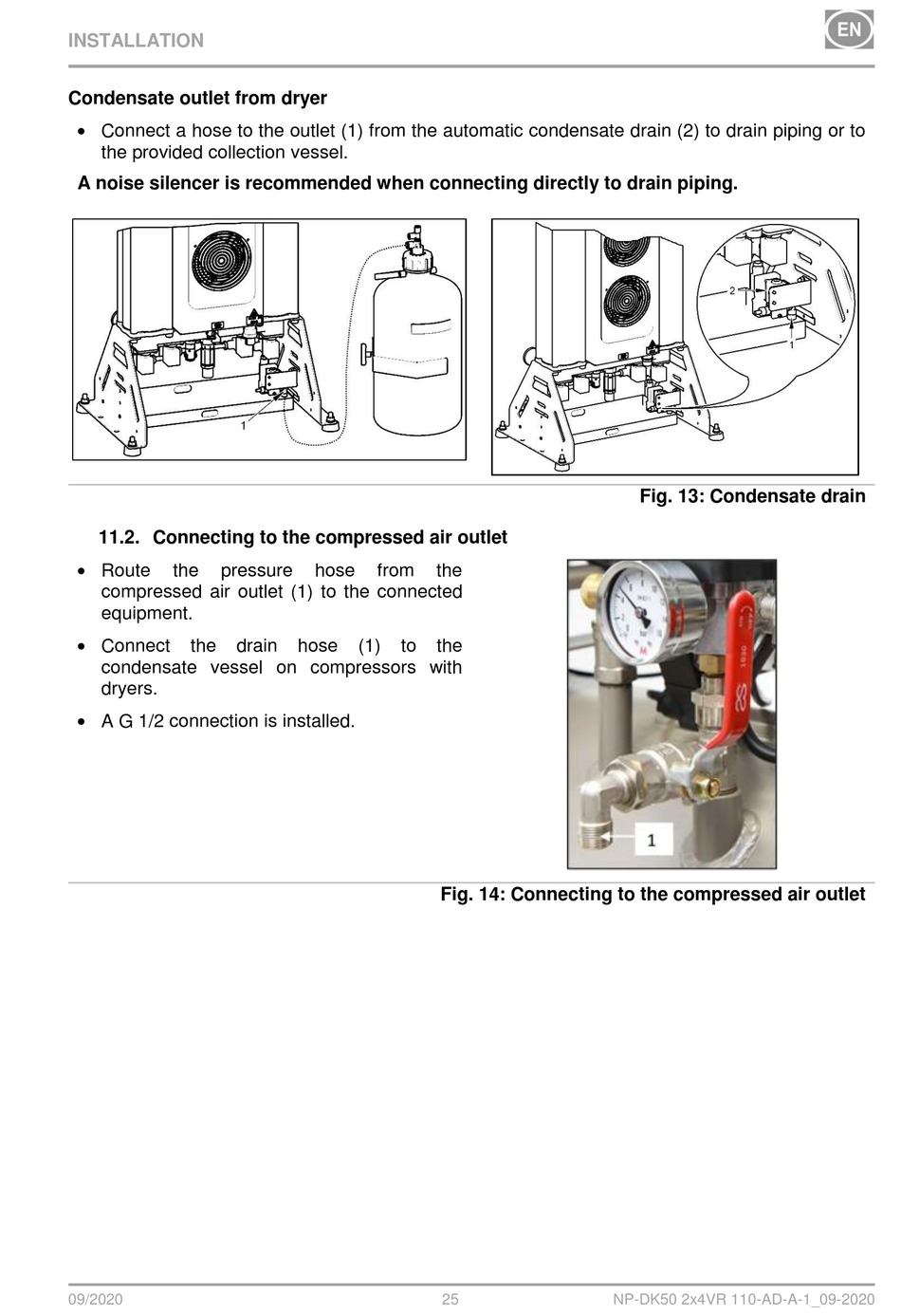

INSTALLATION
Condensate outlet from dryer
 Connect a hose to the outlet (1) from the automatic condensate drain (2) to drain piping or to
the provided collection vessel.
A noise silencer is recommended when connecting directly to drain piping.
11.2. Connecting to the compressed air outlet
 Route
the pressure
compressed air outlet (1) to the connected
equipment.
 Connect
the drain
condensate vessel on compressors with
dryers.
 A G 1/2 connection is installed.
09/2020
hose from the
hose (1) to the
Fig. 14: Connecting to the compressed air outlet
25
Fig. 13: Condensate drain
