2. USE

This device is a detector. The indications it provides must not
be used for measurement purposes.
2.1. SELF-TEST
Before using the C.A 762 IP2X, perform a self-test. This
checks the integrity of the leads, the proper operation of the
electronic circuit, and the battery voltage.

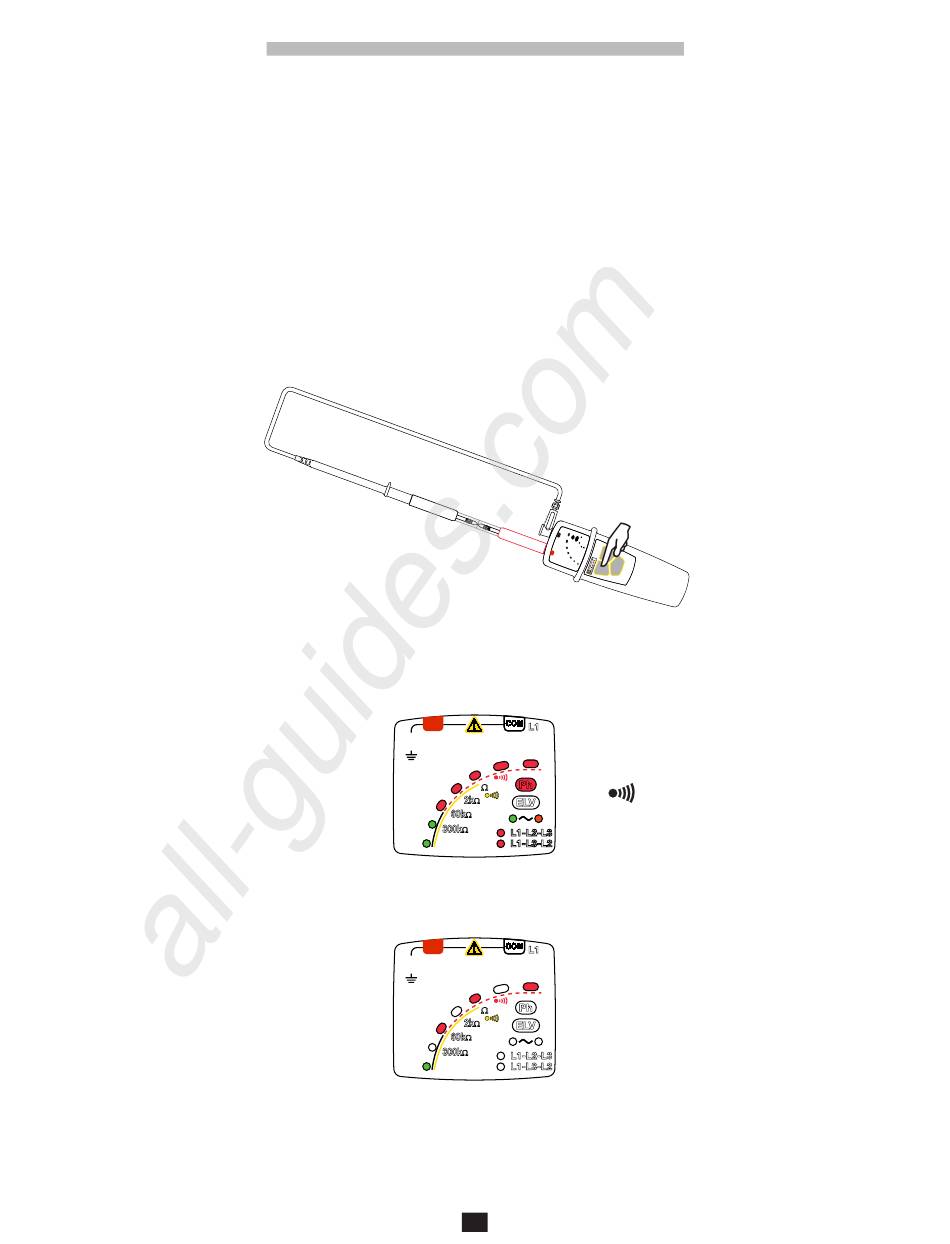

Connect the red test probe to the + terminal and the black
lead to the COM terminal.
Touch the 2 test probes together and press the AUTO TEST
button. Press for as long as necessary.
„ If all of the indicators of the device except ELV light and
the audible signal sound, the device is working properly
and can be used.
+
600V
CAT IV
V
AC
127
DC
50
24
300k
12
„ If every other indicator lights, the batteries must be replaced
(see §4.2).
+
