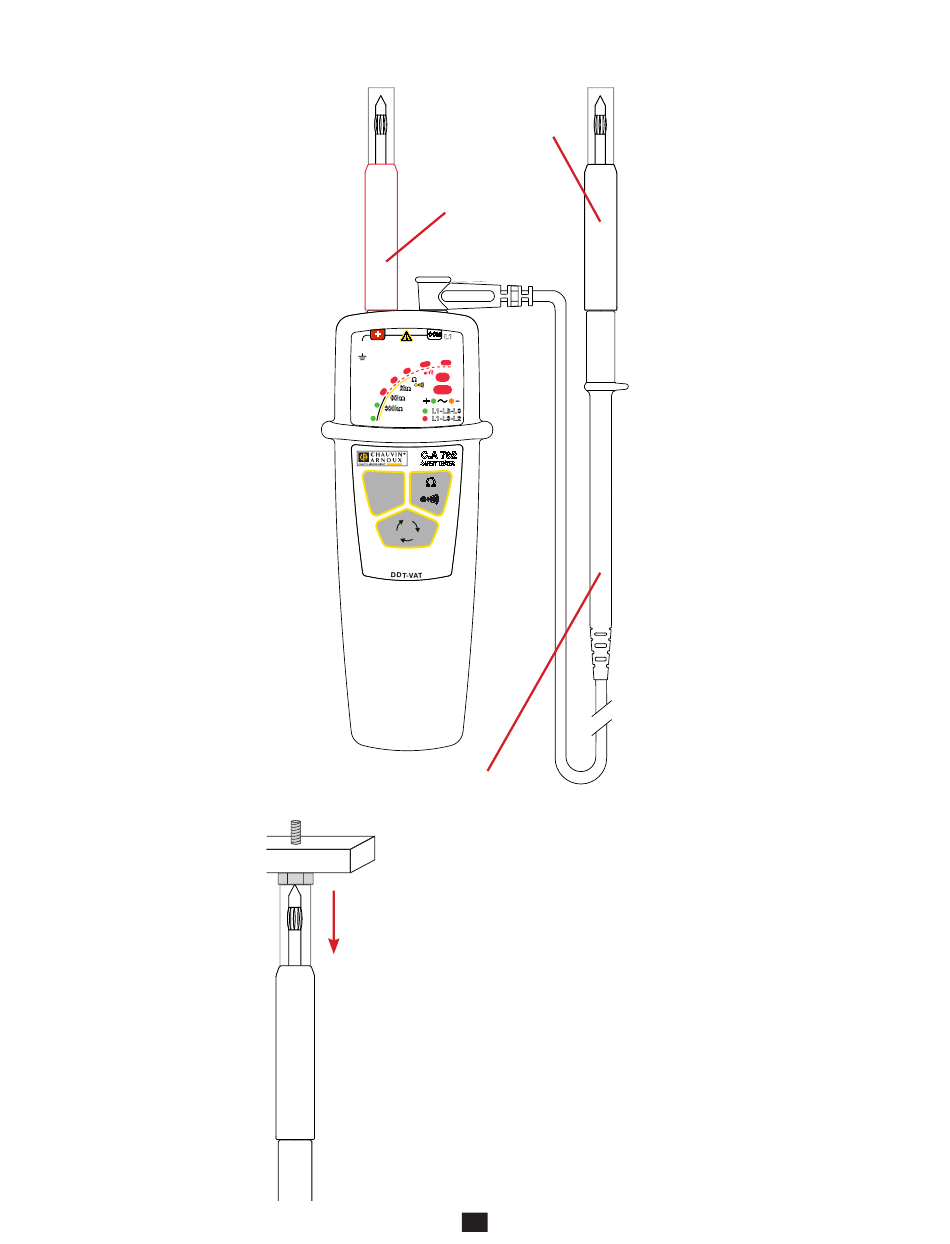

Connect the red IP2X probe tip to the + terminal and the black
probe lead to the COM terminal. Then connect the black IP2X
probe tip to the probe lead.
R e d I P 2 X
probe tip.
+
COM
L1
600V
690 AC
CAT IV
400
750 DC
230
V
AC
127
DC
Ph
Ω
50
2k
Ω
ELV
60k +
Ω
24
300k
Ω
L1-L2-L3
12
L1-L3-L2
C.A 762
SAFETY TESTER
Ω
AUTO TEST
L1
L3
L2
Black probe lead.
To perform a test, position the probe tip
opposite the object to be tested or the
outlet. Press: the protection slides back
and the probe tip touches the object to
be tested.
Black IP2X
probe tip.
-
