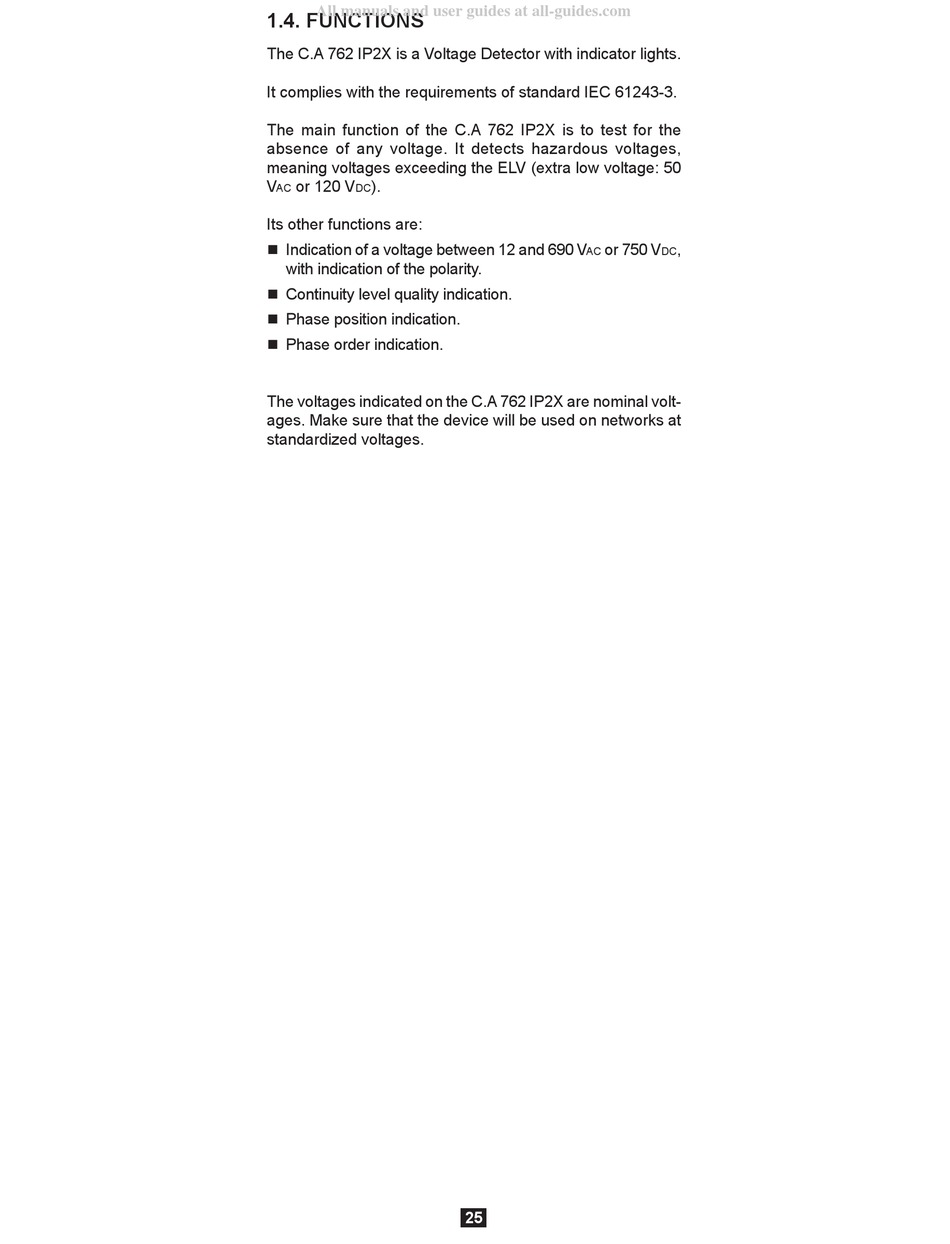

1.4. FUNCTIONS
The C.A 762 IP2X is a Voltage Detector with indicator lights.
It complies with the requirements of standard IEC 61243-3.
The main function of the C.A 762 IP2X is to test for the
absence of any voltage. It detects hazardous voltages,
meaning voltages exceeding the ELV (extra low voltage: 50
V or 120 V ).
ac dc
Its other functions are:
„ Indication of a voltage between 12 and 690 V or 750 V ,
ac dc
with indication of the polarity.
„ Continuity level quality indication.
„ Phase position indication.
„ Phase order indication.
The voltages indicated on the C.A 762 IP2X are nominal volt-
ages. Make sure that the device will be used on networks at
standardized voltages.
25
