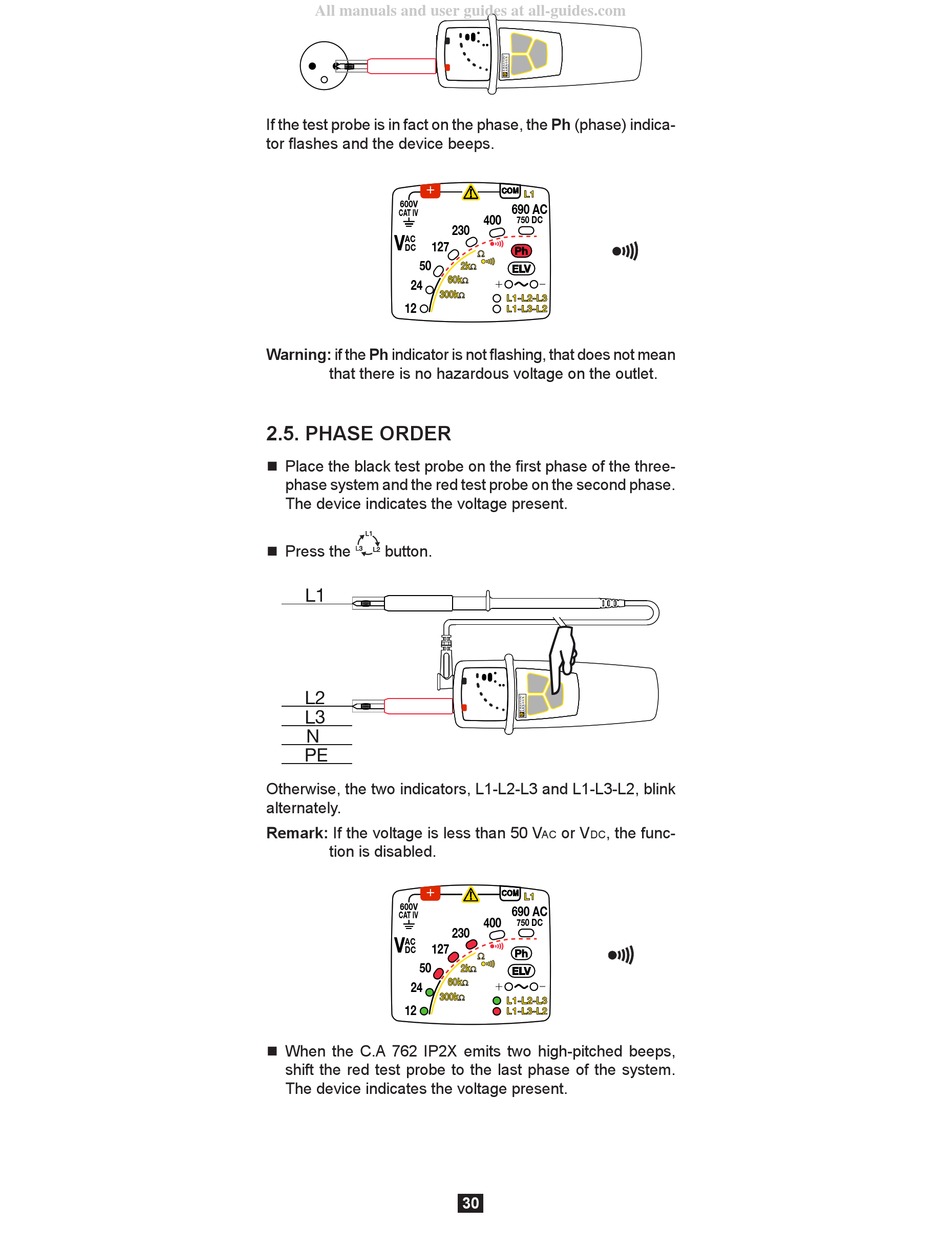

If the test probe is in fact on the phase, the Ph (phase) indica-
tor flashes and the device beeps.
+
600V
CAT IV
V
AC
127
DC
50
24
300k
12
Warning: if the Ph indicator is not flashing, that does not mean
that there is no hazardous voltage on the outlet.
2.5. PHASE ORDER
„ Place the black test probe on the first phase of the three-
phase system and the red test probe on the second phase.
The device indicates the voltage present.
„ Press the button.
L1
L2
L3
N
PE
Otherwise, the two indicators, L1-L2-L3 and L1-L3-L2, blink
alternately.
Remark: If the voltage is less than 50 V
tion is disabled.
+
600V
CAT IV
V
AC
127
DC
50
24
300k
12
„ When the C.A 762 IP2X emits two high-pitched beeps,
shift the red test probe to the last phase of the system.
The device indicates the voltage present.
COM
L1
690 AC
400
750 DC
230
Ph
Ω
2k
Ω
ELV
60k
+ -
Ω
Ω
L1-L2-L3
L1-L3-L2

or V , the func-
ac dc
COM
L1
690 AC
400
750 DC
230
Ph
Ω
2k
Ω ELV
60k
+ -
Ω
Ω
L1-L2-L3
L1-L3-L2
