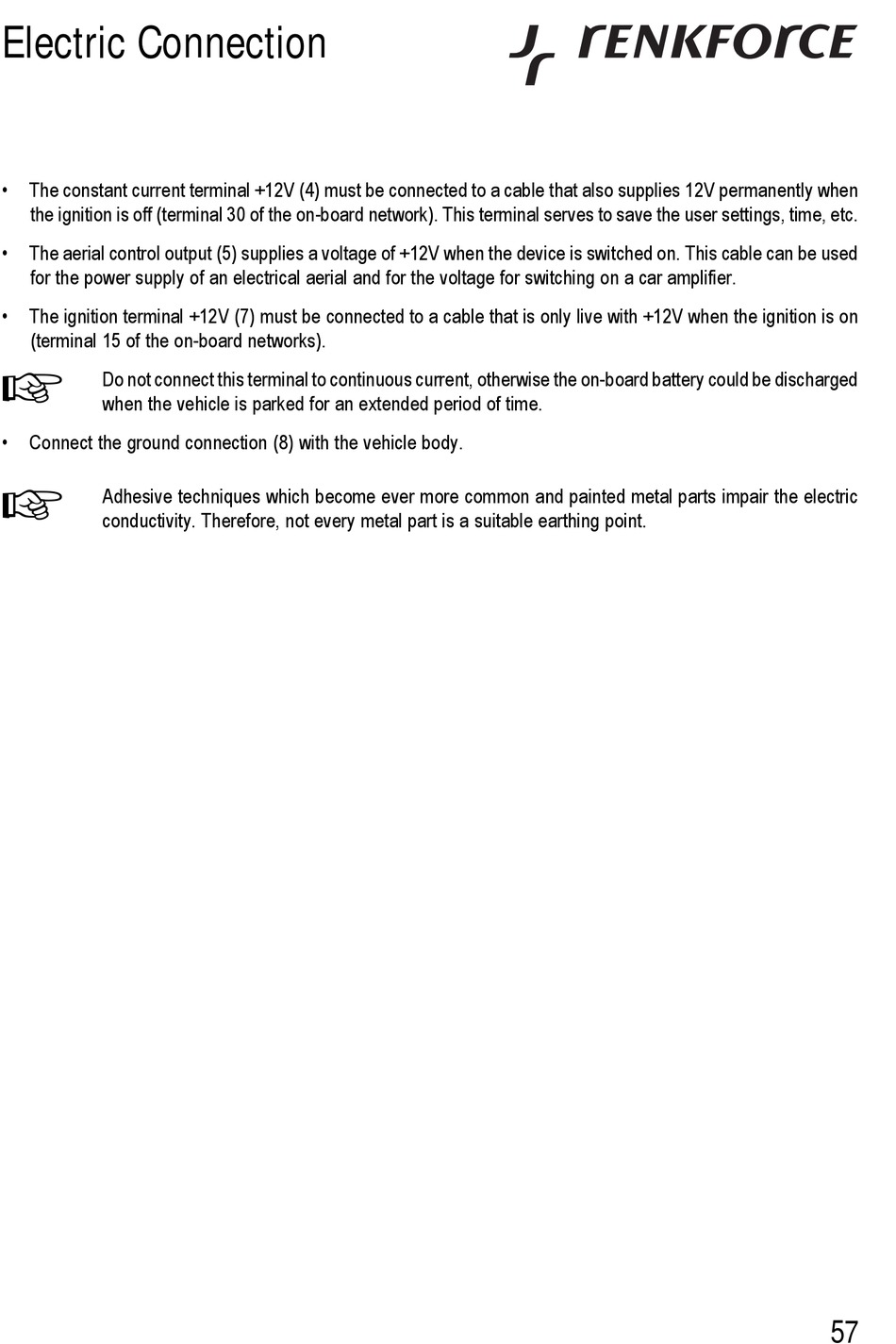

Electric Connection
• The constant current terminal +12V (4) must be connected to a cable that also supplies 12V permanently when
the ignition is off (terminal 30 of the on-board network). This terminal serves to save the user settings, time, etc.
• The aerial control output (5) supplies a voltage of +12V when the device is switched on. This cable can be used
for the power supply of an electrical aerial and for the voltage for switching on a car amplifier.
• The ignition terminal +12V (7) must be connected to a cable that is only live with +12V when the ignition is on
(terminal 15 of the on-board networks).

Do not connect this terminal to continuous current, otherwise the on-board battery could be discharged
when the vehicle is parked for an extended period of time.
• Connect the ground connection (8) with the vehicle body.

Adhesive techniques which become ever more common and painted metal parts impair the electric
conductivity. Therefore, not every metal part is a suitable earthing point.
57
