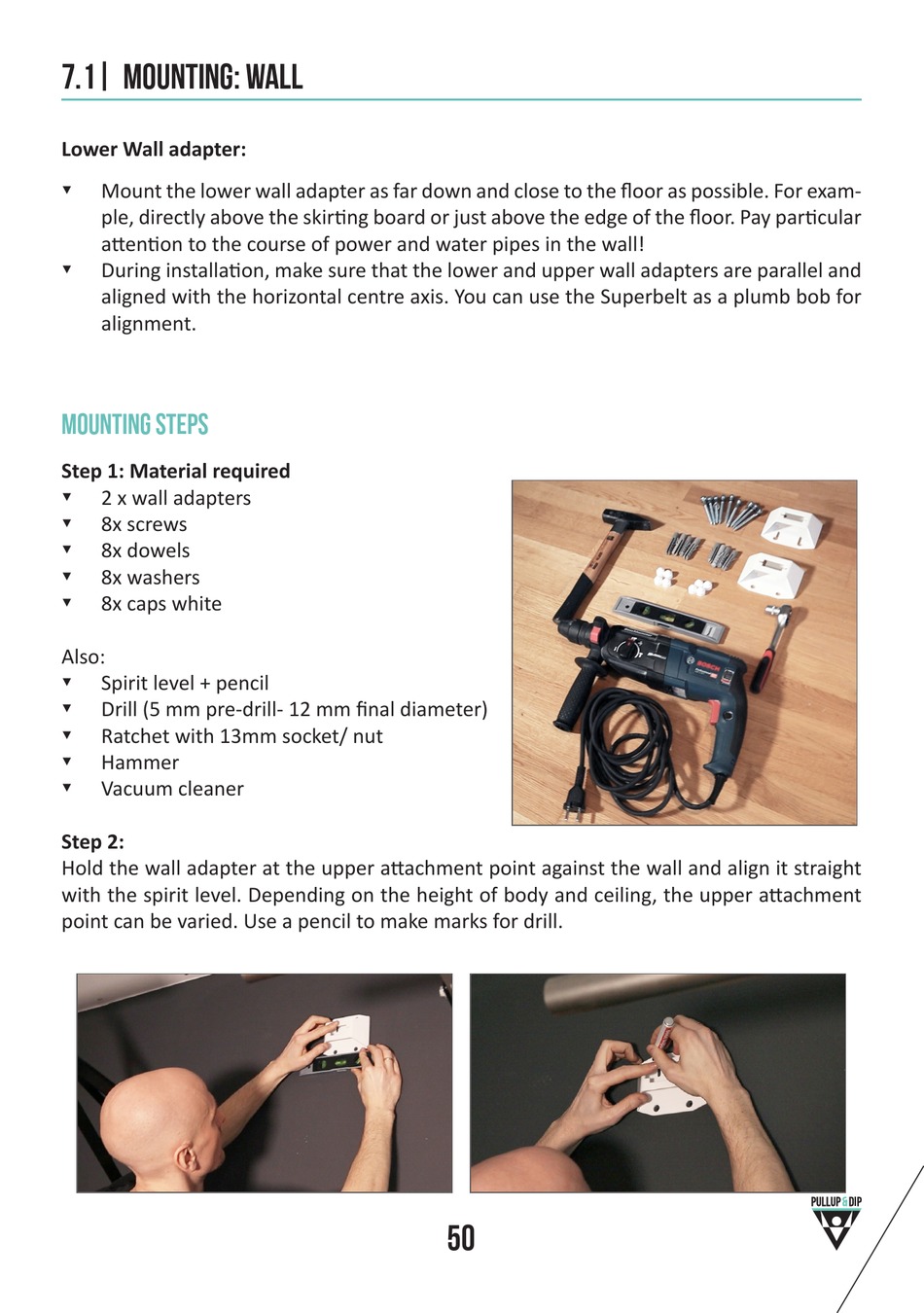

7.1| mounting: Wall
Lower Wall adapter:
Mount the lower wall adapter as far down and close to the floor as possible. For exam-
䕲
ple, directly above the skirting board or just above the edge of the floor. Pay particular
attention to the course of power and water pipes in the wall!
During installation, make sure that the lower and upper wall adapters are parallel and
䕲
aligned with the horizontal centre axis. You can use the Superbelt as a plumb bob for
alignment.
Mounting steps
Step 1: Material required
2 x wall adapters
䕲
8x screws
䕲
8x dowels
䕲
8x washers
䕲
8x caps white
䕲
Also:
Spirit level + pencil
䕲
Drill (5 mm pre-drill- 12 mm final diameter)
䕲
Ratchet with 13mm socket/ nut
䕲
Hammer
䕲
Vacuum cleaner
䕲
Step 2:
Hold the wall adapter at the upper attachment point against the wall and align it straight
with the spirit level. Depending on the height of body and ceiling, the upper attachment
point can be varied. Use a pencil to make marks for drill.
