2.8 M.2 2230 WiFi/BT PCIe WiFi module Installation
Guide (M2_3)
The M.2 Socket (Key E) supports type 2230 2230 WiFi/BT PCIe WiFi module.
Installing the 2230 WiFi/BT PCIe WiFi module
A
A
A
36
PCB Length: 3cm
Module Type: Type2230
20
o

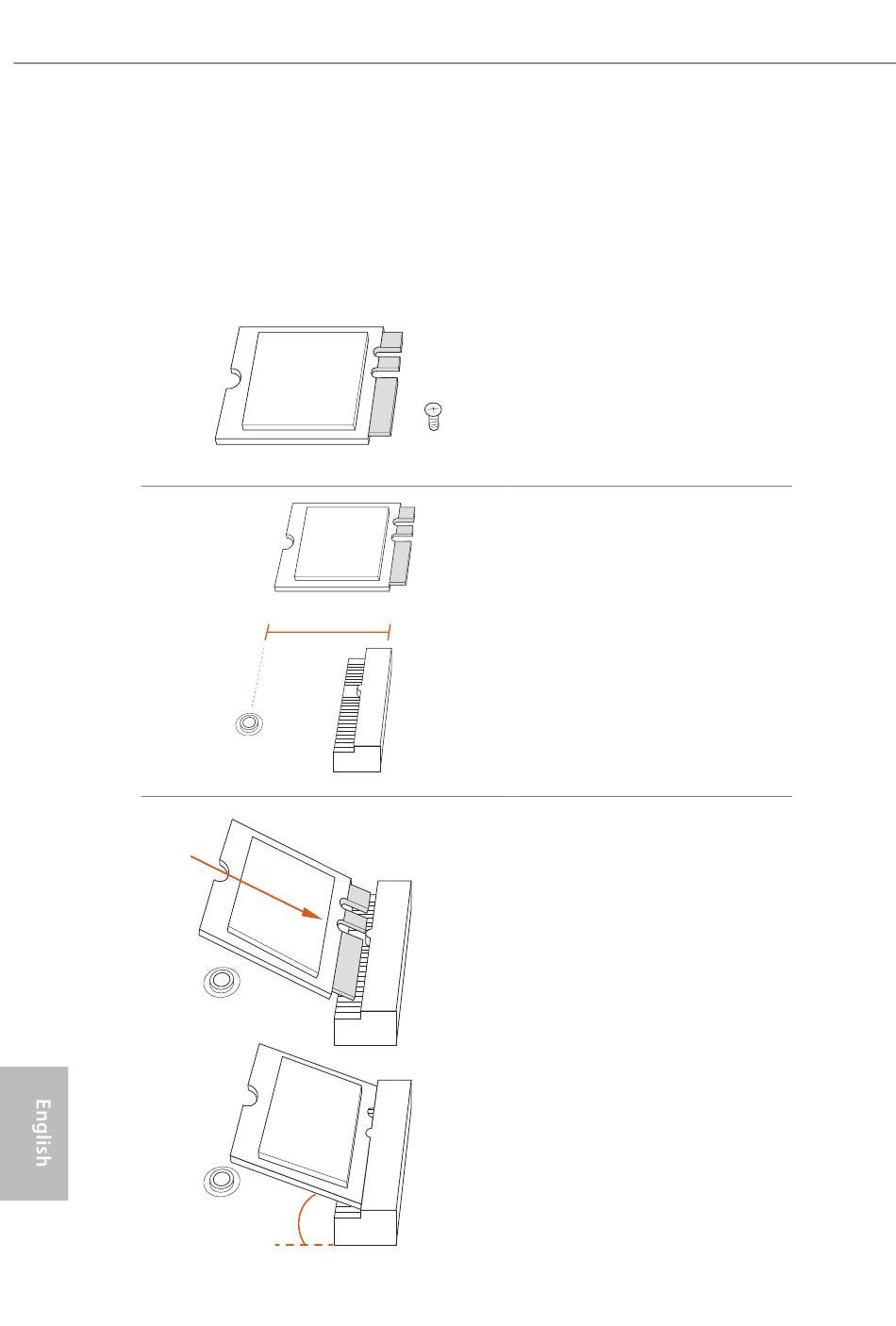

Step 1
Prepare a type 2230 2230 WiFi/BT
PCIe WiFi module and the screw.
Step 2
Find the nut location to be used.
Step 3
Align and gently insert the 2230
WiFi/BT PCIe WiFi module into the
M.2 slot. Please be aware that the
module only fits in one orientation.
