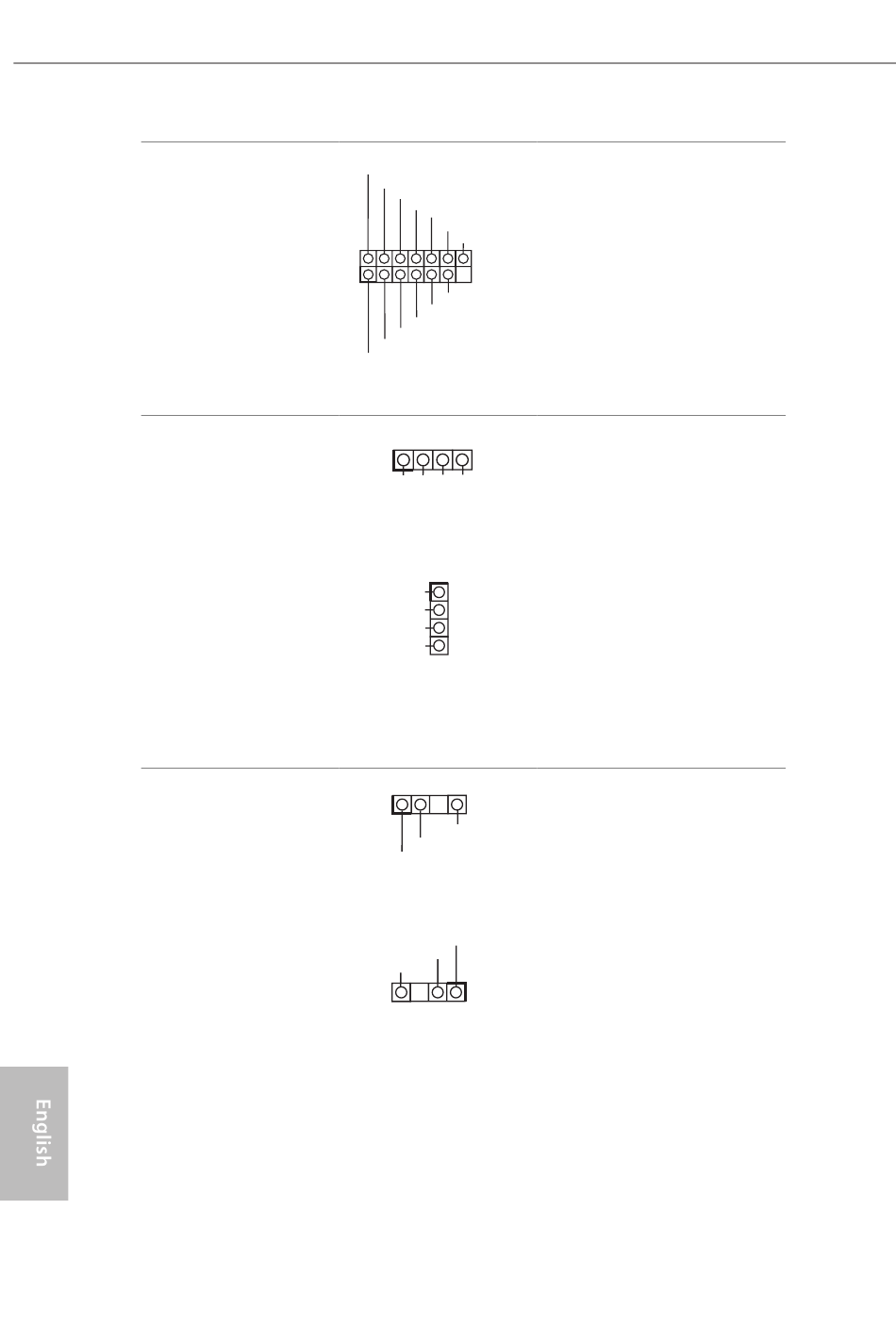

SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.1, No. 13)
RGB LED Headers
(4-pin RGB_LED1)
(see p.1, No. 30)
(4-pin RGB_LED2)
(see p.1, No. 9)
Addressable LED Headers
(3-pin ADDR_LED1)
(see p.1, No. 29)\
(3-pin ADDR_LED2)
(see p.1, No. 8)
34
SPI_DQ3
+3.3V
Dummy
CLK
SPI_MOSI
RST#
TPM_PIRQ
1
SPI_TPM_CS#
GND
RSMRST#
SPI_MISO
SPI_CS0
SPI_DQ2
1
+12V G R B
1
+12V
G
R
B
1
GND
DO_ADDR
VOUT
VOUT
DO_ADDR
GND
1
This connector supports SPI
Trusted Platform Module (TPM)
system, which can securely store
keys, digital certificates, pass-
words, and data. A TPM system
also helps enhance network
security, protects digital
identities, and ensures platform
integrity.
These two RGB headers are used
to connect RGB LED extension
cable which allows
users to choose from various LED
lighting effects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 45 for
further instructions on these two
headers.
These two Addressable headers
are used to connect Addressable
LED extension cable which
allows users to choose from
various LED lighting effects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 46 for
further instructions on this
header.
